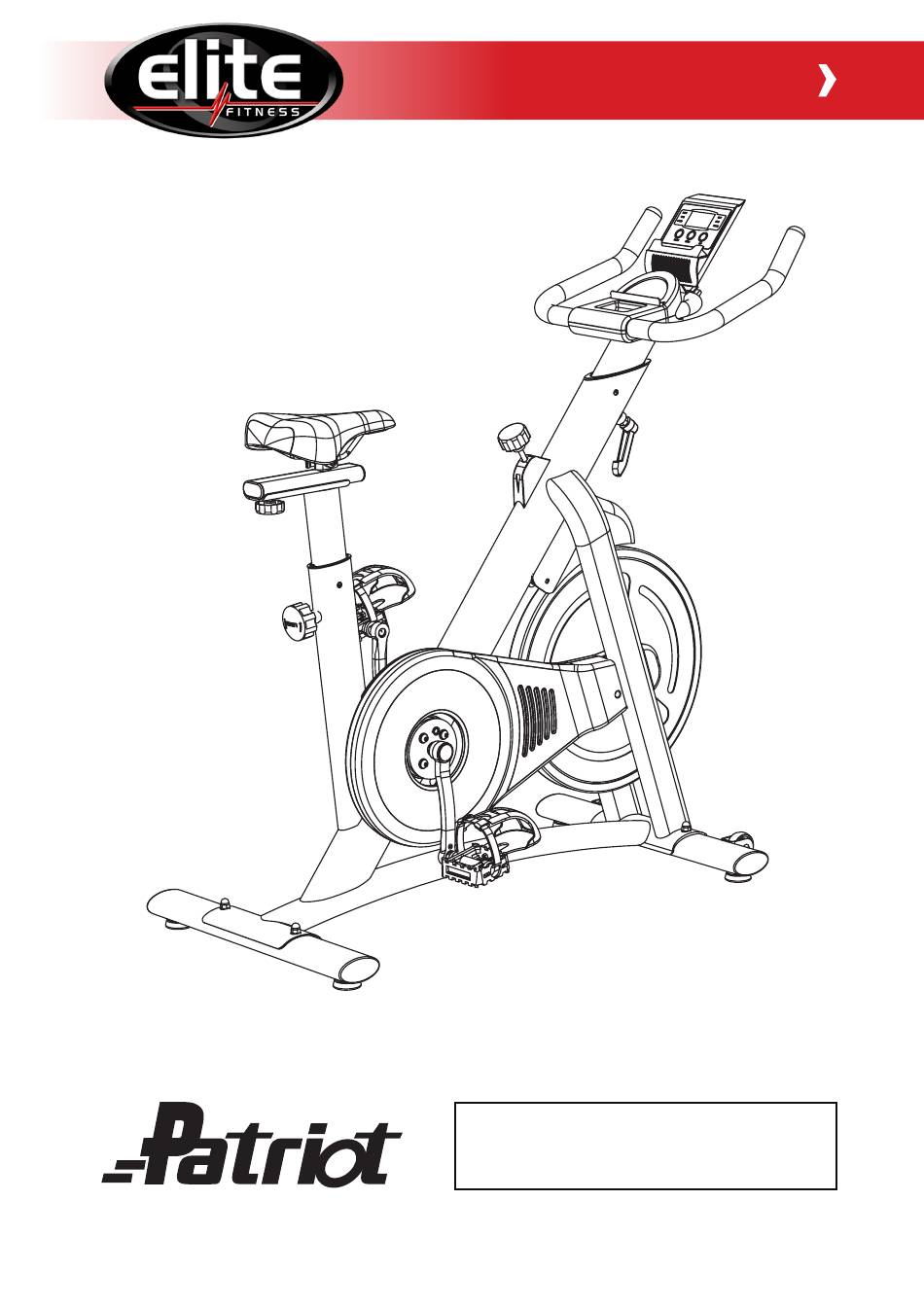

- Page 1 ASSEMBLY MANUAL Record serial number Elite Patriot Exercycle...
-
Page 2: Table Of Contents
Please read through this manual to familiarise yourself with the operation of your new Elite Patriot Bike. Doing so will help to ensure that you get the most out of your machine, enjoying safe and effective workouts ahead. -
Page 3: Important Safety Instructions
(all parts for the unit) at suitable collecting points or containers with a view to saving the environment. — DO NOT extend the seat stem past the warning line “Max” when adjusting the seat height. — Not for therapeutic use. ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL... -
Page 4: Product Specifications
WARNING: Before beginning any exercise programme, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular basis, check all screw connections and moving parts on proper fitting. -
Page 5: Hardware List
HARDWARE LIST Part No. Description Q’ty Cross screw M5*0.8*10L Flat washer Ф8*Ф14*2T Spring washer Ф8(Ф8.5*Ф13.5*2.5T) T knob Cross screw ST3.5*14L Hex screw M8*P1.25*50L*S20L Semi-circle washerФ8*Ф19*2T Harpoon wrench Hex wrench Sleeve wrench Tools Required For Assembling the Machine: — One Crossing Wrench and Allen Wrench, provided by manufacturer. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Prior to assembly of this product, remove all components from the package and verify all the listed parts are supplied. If there are shipping tubes attached to the front and rear of the frame, remove the shipping tubes and four allen bolts and four washer using the hex key (#108), and then discard them. - Page 7 — Place Seat Slider (5) onto Seat Post (4), then fixing them with Lock Knob (25). — Place Seat (28) onto Seat Slider (5), secure seat by tightening the seat locking nuts (Pre-fitting on the Seat). ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 3 — Loosing Adjustment Knob (38) and insert Handlebar Post (7) into the front opening tube of the Main Frame (1), then tighten Adjustment Knob (38) — Getting the Lower Handlebar Cover (41) over the Handlebar Post (7). —...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 — Attach Monitor (69) to the Monitor Bracket on Handlebar (6). — Connect the Sensor Wire (68) from Monitor (69) and Main Frame (1). ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 5 — Screw Pedals (20&22) to Cranks (19&21) as shown in above diagram. NOTE: The Pedals (20&22) are marked “L” and “R” for Left and Right. Right foot installation is clockwise, Left foot installation is counterclockwise. Please make sure you attach the correct pedal to the corresponding crank.
- Page 11 — Level Adjustment — To adjust Base Leveller (10), so the Stabilisers are level to the floor. Rotate the Base Leveller (10) clockwise or counter-clockwise to adjust the level of the bike. ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL...
- Page 12 CONGRATULATIONS Assembly of your Elite Patriot Bike is now complete! Be sure to fully inspect your machine before using it for the first time. WARNING: Failure to visually check and test the assembly of your exercycle before use can cause...
-
Page 13: Seat Adjustment
(as shown) You may need to remove the toe strap to do this. If the leg is still in the bent position, unlock the seat mechanism and adjust to the fully extended position (Pic.1) – Lock the seat adjustment mechanism in to place. ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL... - Page 14 SEAT ADJUSTMENT Moving your foot backwards, place your forefoot on to the pedal in the correct riding position. This should allow for a natural bend in the knee, whilst providing a full 360 degree rotation. If you experience the feeling of reaching for the pedal or sliding down the seat, you may need to make a minor adjustment to the position.
-
Page 15: Console Instructions
During the STOP mode, by holding this key for over two seconds then the computer will re-power-on. c. During the exercise mode, press the key can check the function from SCAN-TIME-SPEED-DIST-CAL-RPM- for a circle. ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL... - Page 16 CONSOLE USER INSTRUCTIONS Console Overview SLEEP MODE: The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Functions and Features: 1. SCAN: At the exercise mode, press the MODE key until appears the SCAN on the LCD. Monitor will display the following function and each function will keep 6 seconds on the main screen.
-
Page 17: Care And Maintenance
Ensure the pedals are securely attached to the crank arms. When tightening pay attention to the reverse thread (tightening anti-clockwise) on the left hand pedal assembly, when sitting on the bike. Be careful not to strip or force the pedal thread when tightening. ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL... -
Page 18: Maintenance Log
MAINTENANCE LOG Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated. -
Page 19: Limited Warranty
A) As a result of abuse, neglect, accident, or unauthorized modification; B) The damage due to incorrect adjustment of the machine; Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures. -
Page 20: Warm-Up Exercise
WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —... -
Page 21: Training Stages
Note: Contact heart rate may provide inaccurate readings and is designed only as a guide Example: 220 – 39 = 181 BPM 181 x 85% (0.85) = 154 BPM (Upper Training Limit) 181 x 65% (0.65) = 118 BPM (Lower Training Limit) ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL... -
Page 22: Parts
PARTS We recommend 2 people assist in assembling this unit. Place all parts of the exercycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual. -
Page 23: Exploded Drawing
EXPLODED DRAWING ELITE PATRIOT EXERCYCLE ASSEMBLY MANUAL... -
Page 24: Notes
NOTES... - Page 25 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2020 Elite Fitness Elite Fitness, 28 Morrin Road, Saint Johns, Auckland, New Zealand. 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
