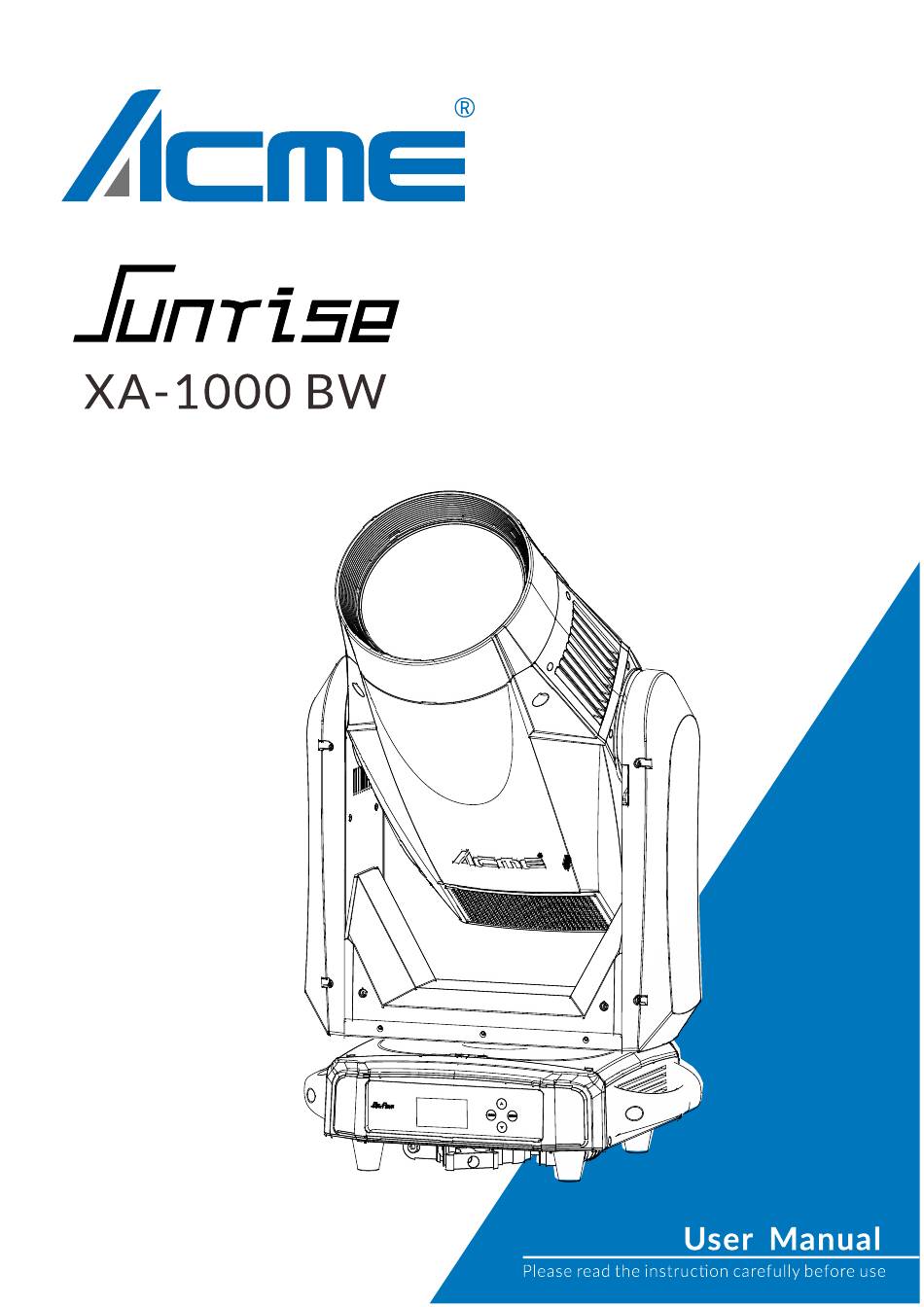

ACME Sunrise XA-1000 BW User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sunrise XA-1000 BW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME Sunrise XA-1000 BW

Summary of Contents for ACME Sunrise XA-1000 BW

  • Page 2 CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications .................. 3 3. Description ..................... 5 3.1 Control Panel .................... 5 4. Color Wheels ....................6 5. How To Set The Unit ..................6 5.1 Main Function ..................6 5.2 Home Position Adjustment..............14 6.
  • Page 3 1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...
  • Page 5 Zoom Range 5° 72° Movement Pan: 540° Tilt: 270° Pan/Tilt Resolution: 16 bit Fixation: Pan/Tilt lock High output mode Ra>70 High CRI mode Ra>90: Switchable to high CRI mode with high CRI filter Color wheel Linear CMY color mixing + Linear CTO color correction Color Wheel 1: 5 colors plus open with rainbow effect Color Wheel 2: 6 colors plus open with rainbow effect Control...
  • Page 6 Photometrics Distance(m) 5° 72° 5°Lux 165000 41500 18500 10250 Diameter(m) 0.43 0.87 1.75 72°Lux 5400 1350 Diameter(m) 7.98 14.59 21.93 29.25 3. Description 3.1 Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN...
  • Page 7 4. DMX IN: For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together 5. DMX OUT: For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together 6. Firmware Upgrade: Used to upgrade the unit firmware 7.
  • Page 9 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode, Connect Option, No DMX Status, Network, Art-Net, sACN, Repeat On DMX or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm.
  • Page 10 No DMX Status To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select Hold or Blackout, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Network To select Network, press the ENTER button to confirm.
  • Page 11 Pan Invert To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Tilt Invert To select Tilt Invert, press the ENTER button to confirm.
  • Page 12 Square Law: Light intensity control is finer at low levels and coarser at high levels. Inv SQ Law: Light intensity control is coarser at low levels and finger at high levels. Linear: The increase in light intensity appears to be linear as DMX value is increased. S curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 13 Fixture Test To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto Test or Manual Mode. Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, color, focus, zoom, shutter, dimmer, special function, etc.
  • Page 14 Upgrade Files Select Upgrade Files, press the ENTER button to confirm, fixture upgrade files will show on the display, press the MENU button to exit. Firmware Version Select Firmware Version, press the ENTER button to confirm, firmware version will show on the display, press the MENU button back to exit.
  • Page 15 RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
  • Page 16 Dimming Start—Dimming Start home position adjustment Enter offset mode, Select Dimming Start, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 9999, press the ENTER button to store.
  • Page 17 LED Frequency(HZ)—LED Frequency(HZ) home position adjustment Enter offset mode, Select LED Frequency(HZ), press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 1072 to 1327, press the ENTER button to store.
  • Page 18 Color2—Color2 home position adjustment Enter offset mode, Select Color2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 19 BladeLF2—BladeLF2 home position adjustment Enter offset mode, Select BladeLF2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store.
  • Page 20 6. Control By Universal DMX Controller 6.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1.
  • Page 21 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6.
  • Page 22 27 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0 °  540° Pan Fine 000-255 0~100% Tilt 000-255 0 °  270° Tilt Fine 000-255 0~100% P/T Speed 000-255 Fast to Slow Cyan 000-255 0~100% Magenta 000-255 0~100% Yellow 000-255 0~100% 000-255 0~100%...
  • Page 23 000-255 Frost 000-255 Zoom Strobe 000-007 Close 008-015 Open 016-131 Strobe Slow to Fast 132-139 Open 140-181 Fast Open Slow Close 182-189 Open 190-231 Fast Close Slow Open 232-239 Open 240-247 Random Strobe 248-255 Open Dimmer 000-255 0~100% Dimmer Fine 000-255 0~100% Blade...
  • Page 24 200-209 Reset All 210-219 Reset Effect 220-229 Reset Pan/Tilt 230-255 Null 18 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°  540° Pan Fine 000-255 0~100% Tilt 000-255 0°  270° Tilt Fine 000-255 0~100% P/T Speed 000-255 Fast to Slow Cyan 000-255 0~100%...
  • Page 25 190-193 Stop 194-255 Rotate Slow to Fast 000-007 Close 008-255 Open 000-255 Frost 000-255 Zoom Strobe 000-007 Close 008-015 Open 016-131 Strobe Slow to Fast 132-139 Open 140-181 Fast Open Slow Close 182-189 Open 190-231 Fast Close Slow Open 232-239 Open 240-247 Random Strobe...
  • Page 26 2. Pan Reset Error Check if the position of the pan mounting magnetic steel falls off or is damaged. Check if there are other interference items in the pan operating range. Check if the pan Hall elements is damaged. Check if the pan Hall elements is in poor contact with the lead of the PCB board or disconnected. Check if the pan motor is damaged.
  • Page 27 Check if the cyan color wheel Hall elements is in poor contact with the lead of the PCB board or disconnected. Check if the cyan color wheel motor is damaged. Check if there is any damage to the circuit of the cyan color wheel motor drive board. 11.
  • Page 28 disconnected. Check if the color wheel1/2 motor is damaged. Check if there is any damage to the circuit of the color wheel1/2 motor drive board. 15. Zoom Error Check if the position of the zoom mounting magnetic steel falls off or is damaged. Check if there are other interference items in the zoom operating range.
  • Page 29 4. Try to use another DMX controller. 5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. One of the channels is not working well 1.
  • Page 32 Innovation, Quality, Performance...
