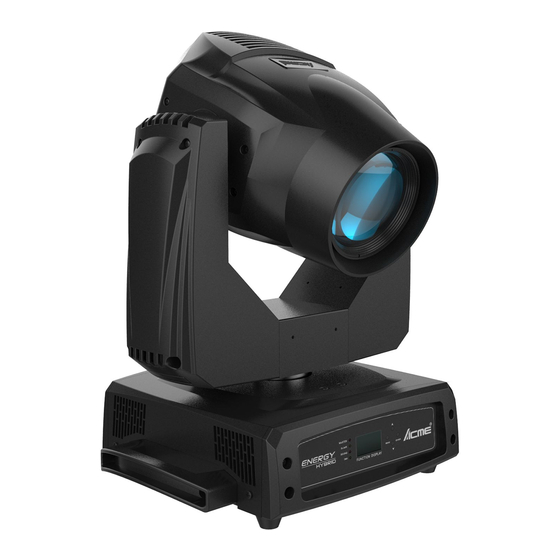

X -400 BSW
User Manual
Please read the instruc on carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENERGY HYBRID X-400 BSW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME ENERGY HYBRID X-400 BSW

Summary of Contents for ACME ENERGY HYBRID X-400 BSW

  • Page 1 X -400 BSW User Manual Please read the instruc on carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications .................. 4 3. Description ..................... 5 3.1 Control Panel ..................5 4. Gobo and Lamp ....................6 4.1 Gobos ..................... 6 5. How To Set The Unit ..................6 5.1 Main Function ..................6 5.2 Home Position Adjustment ..............

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power supply AC 100~240V 50/60Hz Power Consumption 305W Light Source 1 X 300W LED Movement Pan: 540° Tilt: 270° Pan/Tilt moving speed adjustable. Automatic Pan/Tilt correction. Easy calibration and maintenance by magnetic home positioning. Dimmer/Shutter Blackout, 0~100% smooth dimming, independent shutter and various strobe effect. Integrated three features: beam, spot and wash Color wheel 7 fixed colors plus white...

  • Page 6: Description

    Protocols DMX 512 Date input/output: 3/5 Pin XLR socket Dimension/Weight: 21 Kgs 435x344x560mm, 17.1"x13.5"x22.0"in, 46.2lbs 3. Description 3.1 Control Panel Front view Rear view 1. LED: MASTER Master mode SLAVE Slave mode SOUND Sound activation DMX input present 2. Display: To show the various menus and the selected function. 3.

  • Page 7: Gobo And Lamp

    4. Gobo and Lamp 4.1 Gobos DANGER! Install the gobos with the device switched off only. Unplug from mains before changing gobos! CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! 5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor.
  • Page 9 Fixture Test Fixture Information Reset Functions Special Functions DMX Settings To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode or DMX State. DMX Address —DMX512 address setting To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 10 Pan Inverse To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Tilt Inverse To select Tilt Inverse, press the ENTER button to confirm.
  • Page 11 Mode 2(Square Law): Light intensity control is finer at low levels and coarser at high levels. Mode 3(Inverse Square Law): Light intensity control is coarser at low levels and finger at high levels. Mode 4(S-cure): Light intensity control is finger at low levels and high levels and coarser at medium levels. Auto Focus To select Auto Focus, press the ENTER button to confirm.
  • Page 12 MENU button back to the last menu or let the unit idle one minute to exit menu mode. Display Warning Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select No (normal display) or Yes (Show service warnings in display panel), press the ENTER button to store.
  • Page 13 display, press the MENU button to exit. Firmware Version Select Firmware Version, press the ENTER button to confirm, firmware version will show on the display, press the MENU button back to exit. Reset Functions Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select Pan/Tilt, Effect or All.

  • Page 14: Home Position Adjustment

    5.2 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 15 Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Gobo 2—Gobo 2 home position adjustment Enter offset mode, Select Gobo 2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button...

  • Page 16: Error Information

    5.3 Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged.

  • Page 17: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1.

  • Page 18: Address Setting

    5. The end of the DMX 512 system should be terminated to reduce signal errors. 6. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
  • Page 19 PAN/TILT SPEED 000-255 Fast to Slow PAN/TILT SHOW MACRO 000-007 Null 008-063 Show 1 064-127 Show 2 128-191 Show 3 192-255 Show 4 COLOR 1 000-007 Open 008-015 Color 1 016-023 Color 2 024-031 Color 3 032-039 Color 4 040-047 Color 5 048-055 Color 6...
  • Page 20 033-043 Gobo 3 044-054 Gobo 4 055-065 Gobo 5 066-076 Gobo 6 077-087 Gobo 7 088-127 Gobo Shaking 128-189 clockwise rotation fast to slow 190-193 Stop 194-255 clockwise rotation slow to fast R-GOBO 2 000-127 Index 128~189 clockwise rotation fast to slow 190-193 Stop 194-255...
  • Page 21 FUNCTION 000-009 Null 010-019 Enable auto focus 020-029 Disable auto focus 030-069 Null 070-079 Enable blackout while Pan/Tilt moving 080-089 Disable blackout while Pan/Tilt moving 090-099 Enable blackout while color changing 100-109 Disable blackout while color changing 110-119 Enable blackout while gobo changing 120-129 Disable blackout while gobo changing 130-139...
  • Page 22 COLOR 1 000-007 Open 008-015 Color 1 016-023 Color 2 024-031 Color 3 032-039 Color 4 040-047 Color 5 048-055 Color 6 056-064 Color 7 065-127 Index 128-189 clockwise rotation fast to slow 190-193 Stop 194-255 clockwise rotation slow to fast GOBO 000-006 Open...
  • Page 23 194-255 clockwise rotation slow to fast R-GOBO 2 000-127 Index 128~189 clockwise rotation fast to slow 190-193 Stop 194-255 clockwise rotation slow to fast PRISM 000-007 No effect 008-255 Prism Effect R-PRISM 000-127 Index 128-189 clockwise rotation fast to slow 190-193 Stop 194-255...

  • Page 24: Troubleshooting

    080-089 Disable blackout while Pan/Tilt moving 090-099 Enable blackout while color changing 100-109 Disable blackout while color changing 110-119 Enable blackout while gobo changing 120-129 Disable blackout while gobo changing 130-139 No function 140-149 Pan/Tilt reset 150-159 Effect reset 160-199 No function 200-209 All reset...

  • Page 25: Cleaning

    C. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. D. The lamp is cutting out intermittently 1.
  • Page 27 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009+A1:2012; EN55103-2: 2009; EN61000-3-2: 2014; EN61000-3-3: 2013. & Harmonized Standard EN 60598-1:2015;...
  • Page 28 Innovation, Quality, Performance...
