XP-5000SZ F
User Manual
Please read the instruc on carefully before use

Advertisement

Table of Contents
loading

Related Manuals for ACME XP-5000SZ F

Summary of Contents for ACME XP-5000SZ F

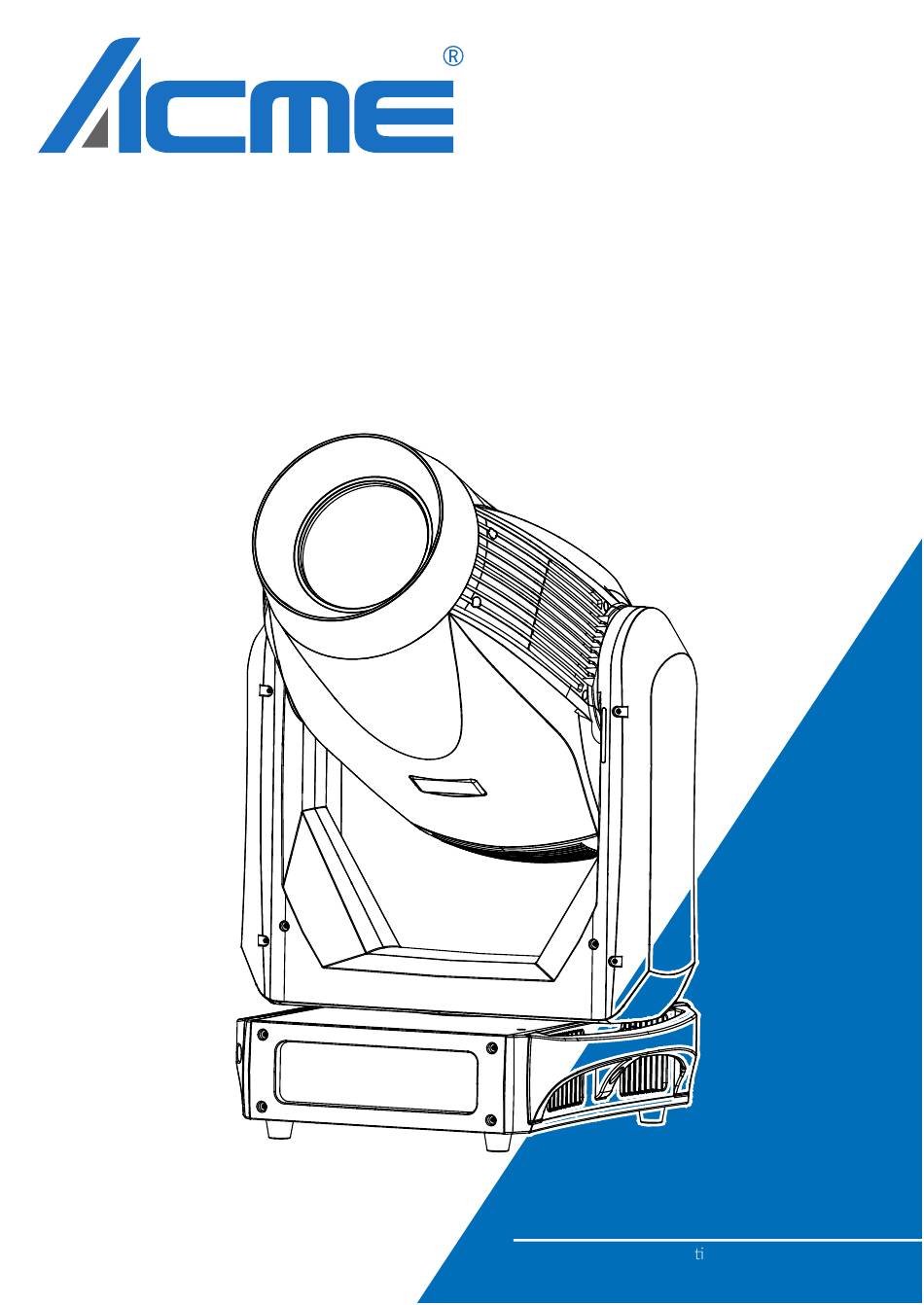

  • Page 1 XP-5000SZ F User Manual Please read the instruc on carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instruction ....................2 2. Technical Specification ................... 4 3. Control Panel ......................6 4. Gobo Wheel and Lamp ................... 7 4.1 Gobo Wheel ....................7 4.2 Lamp ......................8 4.3 Change The Lamp ................... 9 5. How To Set The Unit ..................... 10 5.1 Main Function ....................

  • Page 3: Safety Instruction

    1. Safety Instruction Please read the instruction manual carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 Do not operate in dirty or dusty environment; do clean the fixture regularly.  Do not touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires twist other cables.  The minimum distance between light output and the illuminated surface must be more than 12 ...

  • Page 5: Technical Specification

    2. Technical Specification  Power supply: AC 230V, 50/60Hz  Power Consumption: 1770W  Lamp: Osram HTI1400W/PS Lok-it  Color Temperature: 6000K  Optical system: -High efficient Optical system. - Delivering extremely powerful output. - High quality lens.  Movement: - Pan: 540°...
  • Page 6  Gobo wheel: - Gobo Wheel: 1 rotation gobos with 5gobos plus white - Easy calibration and maintenance by magnetic home positioning  Animation Wheel: Perfect water wave and flame effects, rotating and index able  Framing System： - 4 fast, smooth framing shutters, each shutter blade position and angle can be controlled individually - Completed framing module can be rotated at 90°...

  • Page 7: Control Panel

    Photometric Diagram Distance(m) 9 Lux 55000 13500 6000 3500 Diameter(m) 0.78 2.14 3.15 61 Lux 1300 Diameter(m) 5.85 11.7 17.6 23.4 3. Control Panel Front View Rear View 1. FUNCTION DISPLAY: Shows the various menus and the selected functions; 2. BUTTON: MENU To select the programming functions To go forward in the selected functions...

  • Page 8: Gobo Wheel And Lamp

    5. ETHERNET: Transfers fixture’s information to a main controller; 6. DMX IN: DMX 512 operation, use 5-pin XLR cable to link the unit and DMX controller; 7. DMX IN: DMX 512 link, use 3-pin XLR cable to link the unit and DMX controller; 8.

  • Page 9: Lamp

    DANGER! Install/change the gobo-wheel with the device switched off only. 4.2 Lamp Osram HTI1400W/PS Lok-it: 1. Because of its high internal pressure, there might be a risk that the Discharge lamp would explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin.

  • Page 10: Change The Lamp

    4.3 Change The Lamp Loosen the screw at the rear side of the fixture and open the lamp compartment cover. Remove the old lamp and turn the lamp left in order to take the lamp out, put a new lamp that...

  • Page 11: How To Set The Unit

    must be the same type as the old one. And then place the new lamp into the lamp holder and turn the lamp right in order to fix. Finally reinstall the lamp compartment cover, fastening it securely before turning on power. 5.
  • Page 14 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, Channel Mode, Connect To, Device ID、IP Address、Art-Net Setting、DMX Retransmit, View DMX Value or Wireless DMX. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 1 to 512, press the ENTER button to store.
  • Page 15 To select DMX Retransmit, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (DMX Retransmit), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. View DMX Value To select View DMX Value, press the ENTER button to confirm.
  • Page 16 To select P/T Speed, press the ENTER button to confirm. Use the UP/DOWN button to select Slow or Fast, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Focus Compensate To select Focus Compensate, press the ENTER button to confirm.
  • Page 17 Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. Linear: The increase in light intensity appears to be linear as DMX value is increased. S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 18 Display Inverse To select Display Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (display inverse), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Backlight Intensity To select Backlight Intensity, press the ENTER button to confirm.
  • Page 19 idling one minute. (All channels value will become 0 after exiting Manual Test menu) Fixture Information To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select Fixture Use Hour, Light Use Hour, Fixture State or Firmware Version. Fixture Use Hour Select Fixture Use Hour, press the ENTER button to confirm, fixture use time will show on the display, press the MENU button to exit.

  • Page 20: Home Position Adjustment

    Effect To select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will run built-in program to reset effect to their home positions) or No, and press the ENTER button to store. Press the MENU button to exit. All —...
  • Page 21 Blade-LF2 R-Prism...
  • Page 22 Encoder Calibrate- Encoder Calibrate home position adjustment Enter offset mode, select Encoder Calibrate, the fixture will calibrate the encoder. Press the MENU button to exit. Pan - pan home position adjustment Enter offset mode, select Pan, press the ENTER button to confirm. Use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 23 offset the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit. Blade-UP2 - Blade-UP2 home position adjustment Enter offset mode, select Blade-UP2, press the ENTER button to confirm. Use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store.

  • Page 24: Error Information

    Enter offset mode, select R Prism, press the ENTER button to confirm. Use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Frost - Frost home position adjustment Enter offset mode, select Frost press the ENTER button to confirm.
  • Page 25 It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged.

  • Page 26: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 DMX Connections 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 27: Channel Mode Setting

    6. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used. 6.2 Channel Mode Setting Enter menu mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select Mode, press the ENTER button to confirm, present channel mode will blink on the...

  • Page 28: Dmx Control

    6.4 DMX Control 34Channels (Mode 1): CHANNEL VALUE FUNCTION STROBE: 000 – 019 Shutter closed, lamp switches to low power 020 – 049 Shutter Open 050 – 200 Strobe, slow  fast 201 – 210 Shutter Open 211 – 255 Random strobe, slow ...
  • Page 29 171 – 185 Open 186 – 211 CW Rotation, fast  slow 212 – 217 Stop 218 – 243 CCW Rotation, slow  fast 244 – 247 Random color: Fast 248 – 251 Random color: Medium 252 – 255 Random color: Slow GOBO WHEEL 1: 000 –...
  • Page 30 000 – 255 100%  0% Blade - DW1 000 – 255 100%  0% Blade - DW2 000 – 255 100%  0% Blade - LF1 000 – 255 100%  0% Blade - LF2 000 – 255 100%  0% Blade - RG1 000 –...
  • Page 31 010 – 014 Reset all 015 – 029 Reset effect 030 – 034 Reset Pan/Tilt Fan Speed Quiet 036 – 037 Fan Speed Auto 038 – 039 Fan Speed Fast 040 – 044 Lamp on 045 – 049 Lamp Off 050 –...
  • Page 32 CTO: 000 – 255 6000K  3200K COLOR WHEEL: Open 001 – 014 Open  Color 1 Color 1 016 – 029 Color 1 + Color 2 Color 2 031 – 044 Color 2 + Color 3 Color 3 046 – 059 Color 3 + Color 4 Color 4 061 –...
  • Page 33 180 – 209 Gobo 1-5 shake: slow  fast 210 – 232 Gobo wheel CW Rotation, fast  slow 233 – 255 Gobo wheel CCW Rotation, slow  fast GOBO WHEEL 1 ROTATION: Index to 0° 000 – 002 CW Rotation: fast  slow 003 –...
  • Page 34 R-PRISM: 000 – 002 Stay at 0° position 003 – 126 CW Rotation, fast  slow 127 – 129 Stop 130 – 253 CCW Rotation, slow  fast 254 – 255 Stay at 45° position IRIS: 000 – 255 100%  0% ZOOM: 000 –...

  • Page 35: Troubleshooting

    127 – 134 Lamp Half Power 135 – 255 No function 36~40 Reserved 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1.
  • Page 36 1. Turn off the mains power. 2. Loosen all the screws (AB)，open the cover (C). 3. Loosen the screws (D). 4. Unplug all the connect wires over the belt. 5. Change a new belt (E), put the belt around the axis gear and motor gear. 6.

  • Page 37: Maintenance And Cleaning

    8. Maintenance and Cleaning Check: Ballast A. Do check the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures. Negligence of check would cause malfunction of the fixture.
  • Page 38 Part Description 750hrs 1500hrs 2250hrs 3000hrs FIXTURE Lamp HEAD Radiator Color wheel module Lens Optical module Zoom focus module BASE Radiator Tilt belt Pan belt Code Replace Clean Lubricate Adjust...
  • Page 39 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 40 Innovation, Quality, Performance...
