Summary of Contents for ACME DAZZLED COLORLED-430

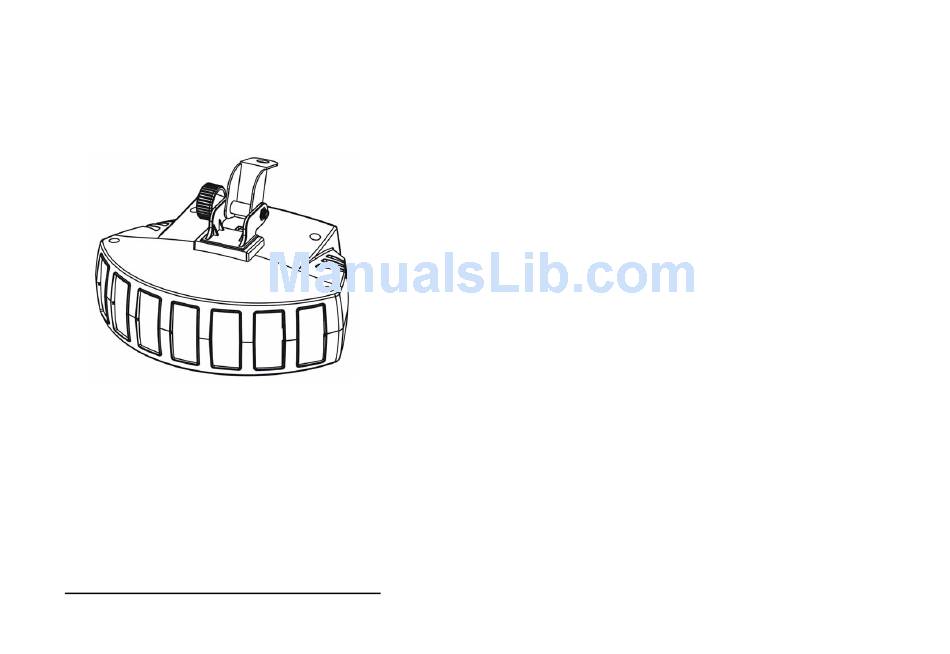

- Page 1 DAZZLED COLOR LED-430 User Manual Professional Entertainment Technology...
- Page 2 1. Safety Instruction Please read the instruction carefully which including important information about the installation, operation and maintenance. WARNING TABLE OF CONTENTS ♦ Please keep this User Manual for future consultation. If you sell the unit to another user, 1. Safety Instruction be sure that they also receive this instruction booklet.
- Page 3 A. Master/Slave operation 2. Technical Specification The unit can be linked together in daisy chain as many as you need in master/slave mode to It can be operated by DMX512 control or can be used as an individual unit without perform the great built-in pre-programmed lighting shows triggered by music.
- Page 4 Channel 5：dip / on: #1, #3 (1+4=5) Channel 9：dip / on: #1, #4 (1+8=9) Channel 13：dip / on: #1, #3, #4 (1+4+8=13) 5. DMX 512 Configuration If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
- Page 5 accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
- Page 6 EC - Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
