Dakota Digital VHX-65F-GAL Instrument Installation

For 1965-66 ford galaxie

Download this manual

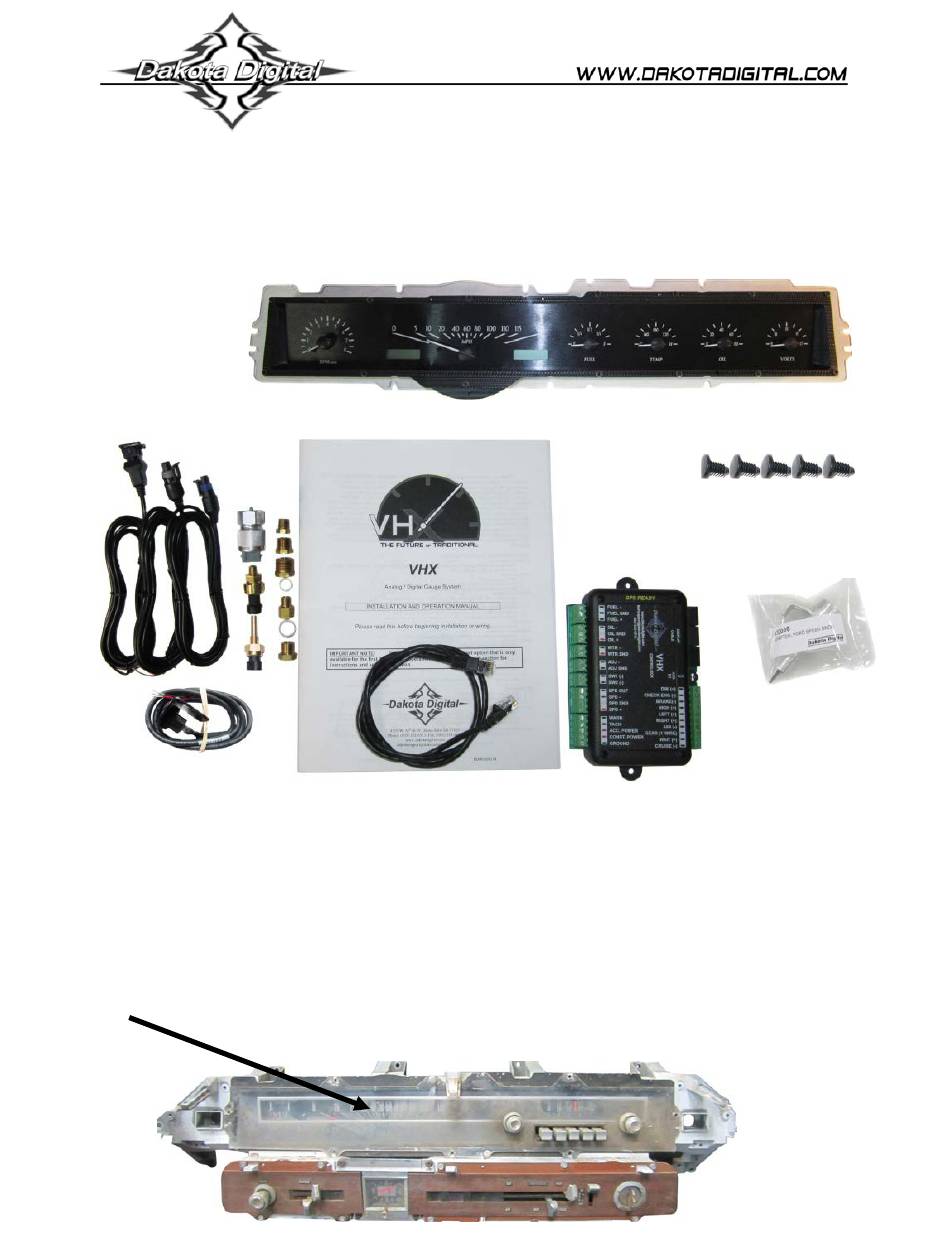

Your new VHX-65F-GAL kit includes:

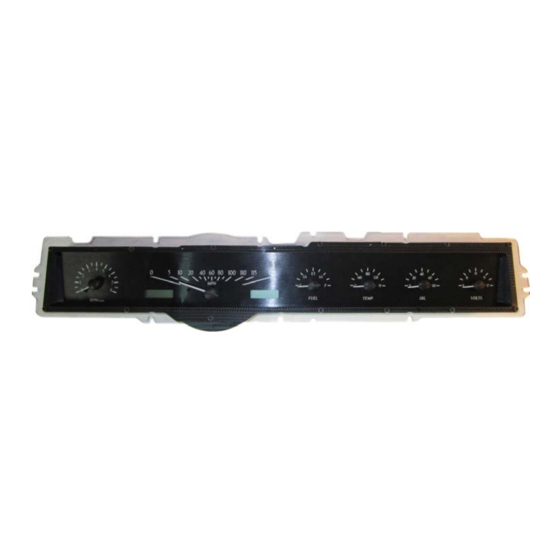

VHX Display

Universal Sender

Pack

Switch Assembly

Installation

1. Installation of this VHX instrument system requires considerable modification to the stock

instrument housing. To reduce the chance of damaging other interior components, the wiring

harness, or any other part of the car, it is advised to completely remove the gauge housing to

perform the required modifications.

VHX-65F-GAL

Dakota Digital VHX Instrument Installation

For 1965-'66 Ford Galaxie

Installation Manuals

CAT5 Cable

8X Push In Retainers

Ford Speed Adapter

Control Box

Manual #650625A

Page 1 VHX-65F-GAL Dakota Digital VHX Instrument Installation For 1965-’66 Ford Galaxie Your new VHX-65F-GAL kit includes: VHX Display Universal Sender Installation Manuals 8X Push In Retainers Pack Ford Speed Adapter Switch Assembly CAT5 Cable Control Box Installation 1. Installation of this VHX instrument system requires considerable modification to the stock instrument housing.
Page 2 2. Remove the eight (8) push pins so you can completely remove all the original gauge pieces. 3. All raised bosses will need to be trimmed flush while two sections will need to be removed. 4. Ensure all areas are properly cut by placing the VHX gauge into the gauge housing and making sure the back of the lens sits on the housing and is not raised.
Page 3 5. Mount the VHX gauge to the housing using the provided eight (8) push in retainers. 6. Connect the provided CAT5 cable to the back of the VHX gauge. Manual #650625A...
Page 4 7. The gauge housing is now ready to re-install into the vehicle using stock hardware. Take care when routing the CAT5 cable to the control box mounting location. Refer to the main manual to complete the VHX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
