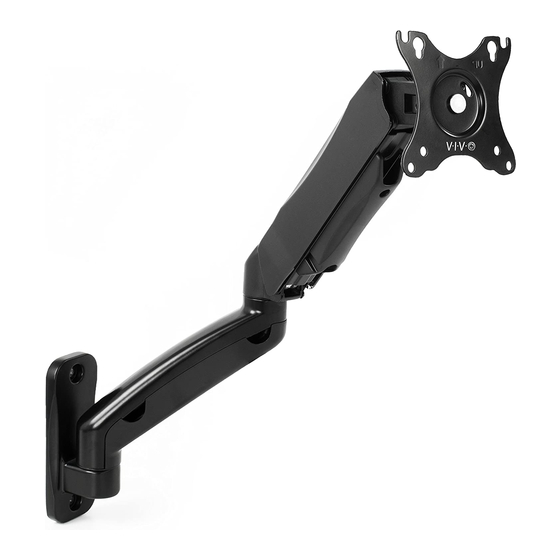

Vivo MOUNT-V001G Instruction Manual

Single monitor wall mount

Table of Contents

Download this manual

Single Monitor Wall Mount

Instruction Manual

Model: MOUNT V001G

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371-5654

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

Tools Required:

phillips screwdriver

A (x1)

B (x2)

M A (x4)

M B (x4)

M4x12

M5x12

W A (x2)

W B (x2)

C (x1)

5mm

M C (x4)

W C (x2)

Table of Contents

Do you have a question about the MOUNT-V001G and is the answer not in the manual?

Page 1 Single Monitor Wall Mount Instruction Manual A (x1) B (x2) C (x1) M A (x4) M B (x4) M C (x4) M4x12 M5x12 Model: MOUNT V001G Email: help@vivo-us.com W A (x2) W B (x2) W C (x2) Live chat: www.vivo-us.com Call: 1-800-371-5654...
Page 2 Assembly Steps Step 2 Step 1 Press covers into screw holes. Option A: Wood Wall Installation Use a pencil to mark drilling location for wood beam and drill 2.2” deep holes using 3/16”bit. Use of a stud finder is recommended. Mount arm (A) to wall using screws (W-A) and washers (W-C).
Page 3 Step 4 Step 3 (Continued) Tighten the socket screw if the joints are making a popping sound. Install screws (M-A) or (M-B) with washers (M-C) in top two holes of Adjust arm tension by turning screw with Allen wrench (C). Turn the monitor, leaving 3mm of space between the screw heads and clockwise to reduce tension and turn counterclockwise to increase the monitor.
Page 4 Call: 1-800-371-5654 If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product. For more VIVO products, check out our website at www.vivo-us.com. Last updated: 5/1/2018...
