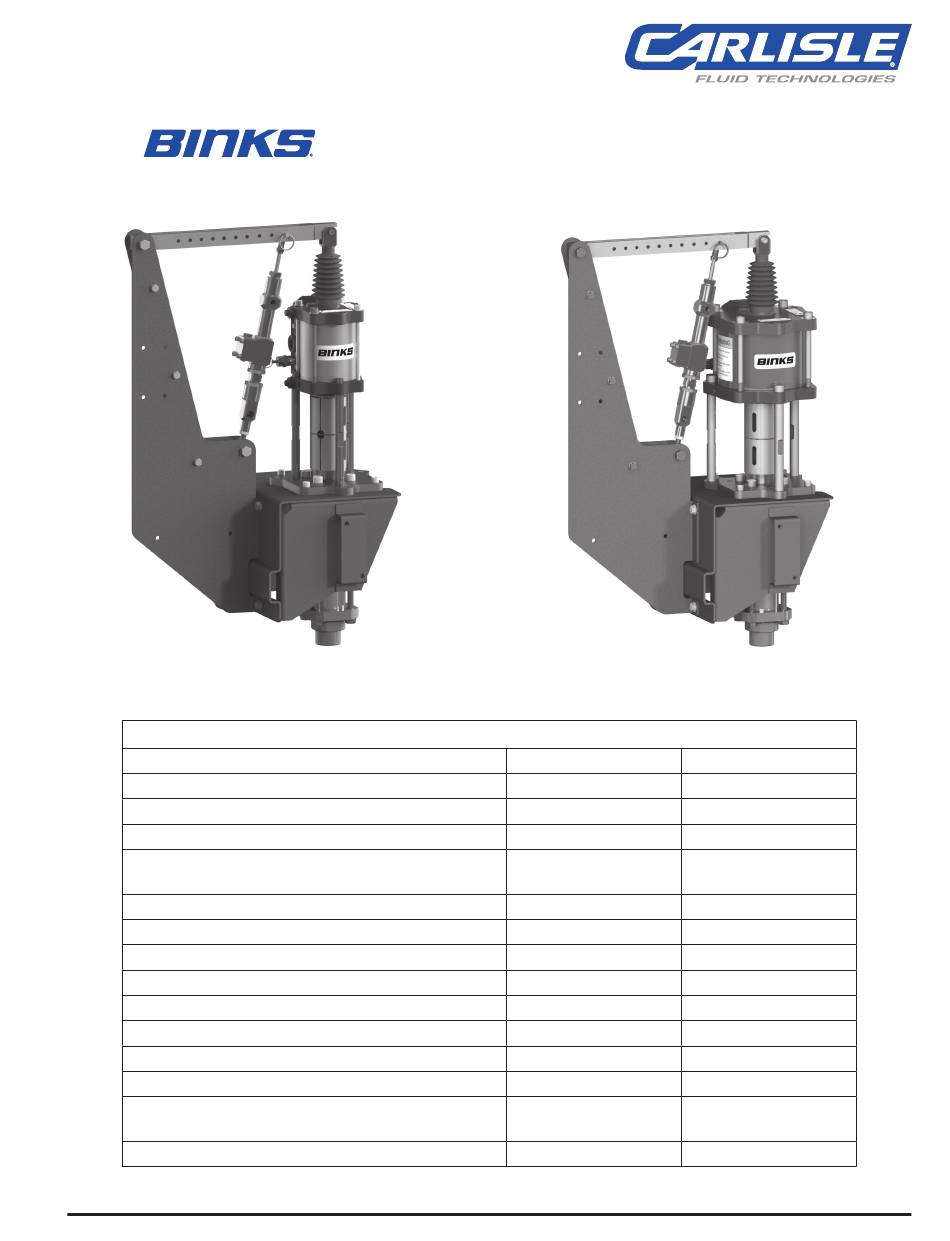

SERVICE MANUAL
EN
CX2006HC
Maximum recommended continuous cycle rate:
Air consumption @ 20 cycles/min and 116 psi
77-2940-R4 (5/2024)

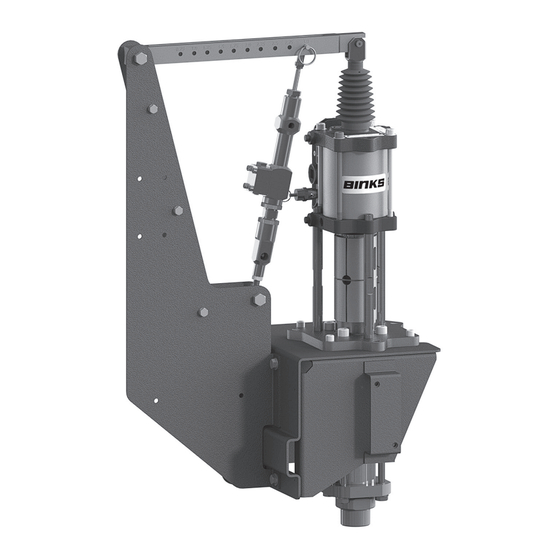

CENTURY PUMP ASSEMBLIES
MODELS: CX2006HC 6.5:1, CX2017HC 17:1
SPECIFICATIONS
Maximum air inlet pressure:
(8 bar) air inlet pressure:
Maximum fluid pressure:
Displacement per cycle:
Output @ 60 cycles/min:
Maximum operating temperature:
Air inlet connection:
Piston diameter:
Stroke length:
Sound level:
Fluid inlet connection:
Fluid outlet connection:
CX2006HC
Ratio:
6.5:1
116 psi (8 bar)
20 cycles/min
5.2 SCFM (147 LPM)
750 psi (52 bar)
4.3 oz (127 cc)
2.0 gal/m (7.6 l/m)
160°F (71°C)
3/8" BSP (F)
3.3 in (85 mm)
3 in (75 mm)
96.2 dB
1 1/4" NPT (M) &
1" NPT (F)
1/2" NPT/NPS (M)
1 / 8
CX2017HC
CX2017HC
17:01
116 psi (8 bar)
20 cycles/min
17.6 SCFM (498 LPM)
1970 psi (136 bar)
4.3 oz (127 cc)
2.0 gal/m (7.6 l/m)
160°F (71°C)
3/8" BSP (F)
5.5 in (140 mm)
3 in (75 mm)
97.3 dB
1 1/4" NPT (M) &
1" NPT (F)
1/2" NPT/NPS (M)
www.carlisleft.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Carlisle BINKS CX2006HC
Summary of Contents for Carlisle BINKS CX2006HC
- Page 1 SERVICE MANUAL CENTURY PUMP ASSEMBLIES MODELS: CX2006HC 6.5:1, CX2017HC 17:1 CX2006HC CX2017HC SPECIFICATIONS CX2006HC CX2017HC Ratio: 6.5:1 17:01 Maximum air inlet pressure: 116 psi (8 bar) 116 psi (8 bar) Maximum recommended continuous cycle rate: 20 cycles/min 20 cycles/min Air consumption @ 20 cycles/min and 116 psi 5.2 SCFM (147 LPM) 17.6 SCFM (498 LPM) (8 bar) air inlet pressure:...
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
- Page 3 WARNING HIGH PRESSURE CAN CAUSE SERIOUS INJURY IF EQUIPMENT IS INSTALLED OR USED INCORRECTLY— READ, UNDERSTAND, AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL. INSTALL, OPERATE OR SERVICE THIS EQUIPMENT ONLY AFTER ALL INSTRUCTIONS ARE CLEARLY UNDERSTOOD. It is the responsibility of the employer to place this information into the hands of the operator. WARNING CAUTION NOTE...
- Page 4 MODELS CRX2006 & CRX2017HC CENTURY BARE PUMP ASSEMBLIES 25 Nm / Loctite 243 ♥ ♣ 20 Nm / Loctite 243 FLUID OUTLET www.carlisleft.com 4 / 8 77-2940-R4 (5/2024)
- Page 5 MODELS CRX2006 & CRX2017HC CENTURY BARE PUMP ASSEMBLIES ITEM QTY. QTY. PART PART NUMBER DESCRIPTION CRX2006HC CRX2017HC SHEET 101-9425 BEARING 20-6869 SHOULDER SCREW 20-6877 ACORN NUT 101-9415 CLEVIS 101-9444 BELLOWS AX140SD AX140SD AIR MOTOR ASSEMBLY — 77-2938 AX85SD AX85SD AIR MOTOR ASSEMBLY —...
- Page 6 MODELS CX2006HC & CX2017HC CENTURY PUMP ASSEMBLIES ITEM PART QTY. QTY. PART DESCRIPTION NUMBER CX2006HC CX2017HC SHEET 101-9433 20-263-1 FLAT WASHER 20-6042 NYLOK HEX NUT 20-376-1 HEX HEAD CAP SCREW 20-264-1 FLAT WASHER 101-9448 REAR CATALYST PUMP BRACKET 101-9437 RATIO ARM ASSEMBLY 20-6873 QUICK RELEASE PIN 101-9450...
- Page 7 WALL MOUNTING PATTERN 6" 152mm 3" " 76mm 14mm CENTURY PUMP DIMENSIONS 27 3 " 691mm 17 1 11 27 " " 445mm 301mm 77-2940-R4 (5/2024) 7 / 8 www.carlisleft.com...
-
Page 8: Warranty Policy
This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
