Summary of Contents for Carlisle BINKS MX44046 Series

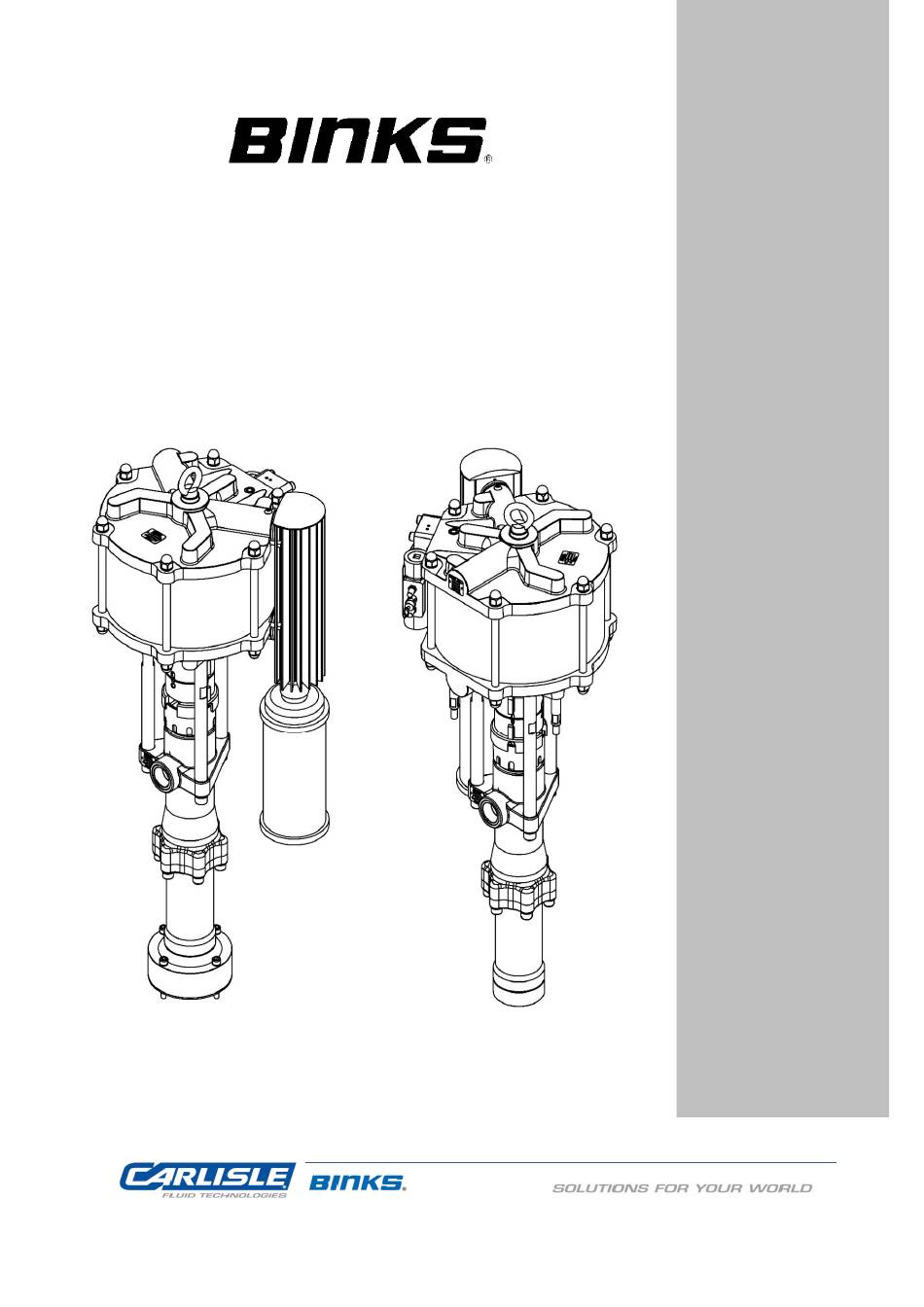

- Page 1 Instruction Manual MX44046XX-XXX Pump 77-3290 R1.5 www.carlisleft.com...
- Page 2 Page 2 of 16 77-3290 R1.5...
-
Page 3: Specification
Specification Feature Unit 7.2 US Gal. /min. Flow at 60 cycles/min 26.4 Litres/min. 0.12 US Gallons Flow per cycle 0.440 Litres Recommended intermittent cycle rate 25 cycles/min 5” Pump Stroke 127 mm Ratio 46:1 4669 PSI Maximum Fluid Pressure 322 BAR 1½”... - Page 4 Page 4 of 16 77-3290 R1.5...
- Page 5 Page 5 of 16 77-3290 R1.5...
- Page 6 MX44046XX-CMH / MX44046XX-SMH Page 6 of 16 77-3290 R1.5...
- Page 7 MX44046XX-CMB / MX44046XX-SMB Page 7 of 16 77-3290 R1.5...
-
Page 8: General Description
General Description The MX44046XX-XXX fluid paint pump is designed for pumping High Viscosity materials such as Mastic, PVC, Underseals, Sound deadeners and other similar materials. The fluid section is a ‘ROD’ type design which means the rod displaces the material and is the only wear contact with the packings. - Page 9 = GREASE (AGMD-010) = LOCTITE = TORQUE Page 9 of 16 77-3290 R1.5...
-
Page 10: Pump Accessories
Parts List – ‘MX44046XX-CMH/SMH//CMB/SMB Pump Assembly’ ITEM PART No DESCRIPTION REMARKS 104038 A320 AIR MOTOR 164838 RIVET 165100 M16 SPRING WASHER 165594 M16 x 60 SOCKET CAPSCREW 193264 AIR MOTOR MOUNTING BAR 193540 LABEL 193543 COVER CLIP 193616 TIE ROD 193938 FX440 HAND GUARD 193940... -
Page 11: Recommended Daily Inspection
Replacement Spares Kits Part No. Description Remarks Air Piston Seal Shaft seals and bearing 250682 Air Motor Overhaul Kit All O-rings, QEV cups Pilot Valves incl. O-rings 250647 Air Motor Control Valve Kit Main Spool Valve incl. O-rings PU Fluid Seal Kit PTFE + UHMW-PE Packing Set 250696 (XXH pumps) -
Page 12: Adjustment Procedure
MX440CL-SMH INSPECTION & MAINTENANCE GUIDANCE Packing Seal Lubricant Ensure the Lubricant Cup is always at least 1/3 full with compatible seal lubricant (0114-016099 Water Based) (0114-016100 Solvent Based) New Packings Only Run Pump for 8 hours–then tighten the packings as per the adjustment procedure Daily –... -
Page 13: Fault Finding
Fault Finding Symptom Possible Cause Remedy Motor will not run a. No Air supply a. Check air and fluid supply ball valves and supply hoses. b. Air piston seal worn. b. Replace Piston seal c. Pilot valve assemblies c. Switch/interchange pilot valves to isolate inoperable. - Page 14 DATE DETAILS OF ADJUSTMENT LUBRICATION ADDED Page 14 of 16 77-3290 R1.5...
- Page 15 DATE DETAILS OF ADJUSTMENT LUBRICATION ADDED Page 15 of 16 77-3290 R1.5...
- Page 16 Binks products are covered by Carlisle Fluid Technologies five year materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow the Maintenance Guidance provided, may invalidate any warranty.
