CONFER CURVE STEP ADD-ON INSTRUCTIONS (Cont'd.)

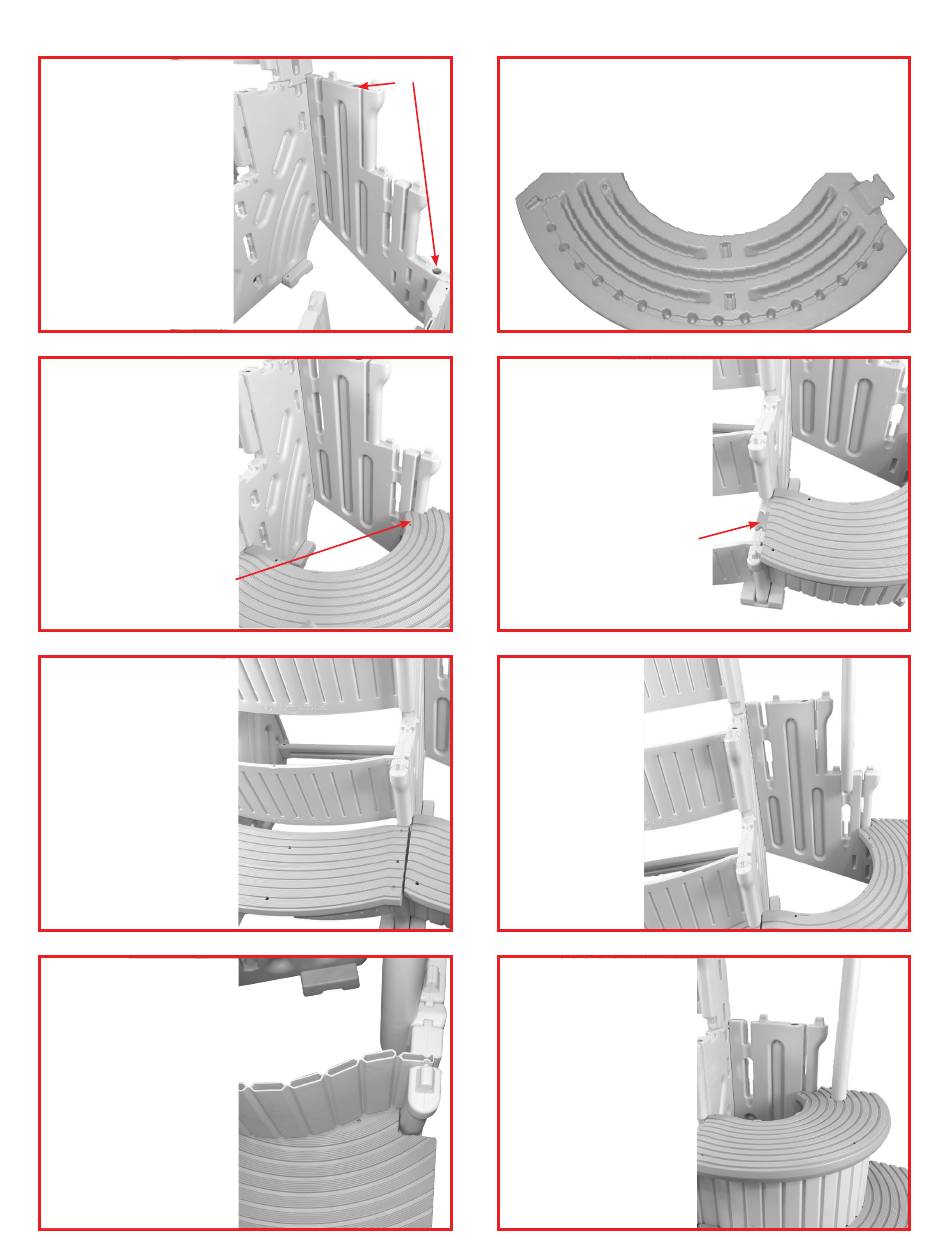

Step 25
At this time add 30 lbs of
sand through the two fill
holes located on the add-
on panel. Using a funnel fill
the lower hole completely
to the top with sand. Shake
the panel to help settle
the sand. Lower hole must
be completely filled. Pour
what's left from the 30 lbs,
into the upper hole. Using
the provided caps plug
both the lower and upper
fill hole.
Step 27
It will be easier to start from
the add-on panel side and
work towards the base step.
Start by placing the large
curved tread in approximate
position over the panels
and flex riser. Next align the
tabs on the add-on panel
with the openings on the
bottom side of large curved
tread. Lock the tread down
by lightly striking the top of
tread directly over the tabs
with rubber mallet.
Step 29
Install the first tread
[I] onto the base
step by placing over
the tabs on the side
panels [A] as shown.
While holding the
tread down, tap
inward with a
rubber mallet until
locked in place.
Step 31
Next, install the medium
flex riser [P] by sliding
down into the slot locat-
ed on the add-on panel
[J]. Insert the tab located
on the end of flex riser
into the opening on side
panel [A]. Riser will rest
on the top back of
tread below.
6
Step 26
Fill Holes
The next step will require an extra set of hands to help
align the large flex riser [M] and the tread support [N]
into the groove and the openings located on the bottom
side of the large curved tread [O].
Step 28
Position the other end of the
tread over side panel [A].
Move the large flex riser [M] in
or out until it slips up into the
groove located on the bottom
of the large curved tread [O]. It
will also be necessary to align
the tabs on the tread support
[N] with the two openings on
the bottom of the large curved
tread. Once everything is in
position tap down on the large
tread to lock onto panel [A].
Step 30
Install the short
handrail post [K]
by sliding down
into lower slot on
add-on panel [J];
slot is marked
with #4.
Step 32
Place the medium
curved tread [Q] over
the short handrail post
and down on to the
tabs located on the
add-on panel [J]. Move
the riser in or out until it
slips up into the groove
on the bottom of the
tread, using a rubber
mallet strike the top of
the tread until locked
onto tabs.
