Confer Plastics CK7200 Assembly Instructions

Dealer/Installer: Give manual to homeowner.
Installer: Read "Safe Installation" below and all instructions before beginning. For proper assembly and
installation, instructions must be followed completely.
Homeowner: Read "Safe Use" on back cover before using. Save these instructions.
Installation must comply with local codes and may require permits.
MODEL CK7200 Conversion Kit
KIT USED TO CONVERT 7200 A-FRAME LADDER TO DECK LADDER
ASSEMBLY, INSTRUCTION AND USE MANUAL

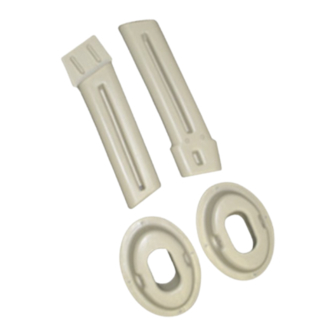

Parts List
2 - # 6-00-72-CONV-01
2 - # 6-00-72-CONV-02
12 - # 3-00-72-CONV
Check building codes/permitting. Consult your local Building Department before installation of your pool and equipment. Pool/
equipment installation must comply with the codes of the authority having jurisdiction and may require permits (e.g., building,
plumbing, electrical, zoning, etc.). Be sure that barriers (fences, gates, etc.) restricting pool access meet local codes.
Use for intended purpose only
• Use only as conversion kit for ladder.
• When converted, this ladder is designed and manufactured for a specific pool wall height and/or deck of the pool - check product
specification and the height of your pool.
Check that you have all required parts. Check the contents of the carton with the Parts List for this ladder.
All parts and hardware are required. If any parts are missing, DO NOT attempt to assemble or install the ladder. Instead, call Toll
Free U.S. - 800-635-3213 or visit our web site at www.conferplastics.com for assistance.
Select an appropriate location - The ladder must be located on a level, solid base and in a location that will be
in full view of competent adult supervision when in use.
Follow all instructions
• For stable, correct assembly and installation, all instructions must be followed completely and in the sequence shown.
• Follow the manufacturer's recommendations for the safe use of all hand tools and equipment used during installation.
Cordless drill only - no corded drills near pool. Use a cordless drill for assembly and installation. To reduce the risk of electrocution,
NEVER use a corded drill in or around a pool.
Lift safely. When lifting awkward or heavy loads, have another person help you.
Double check after installation
• Before using the product, after assembly and installation, go over the instructions and procedures again to make sure nothing has
been overlooked.
• Make sure that safety labels are installed and legible.
Remove the
bottom
tread from the
inside ladder.
®
To reduce the risk of drowning, entrapment, falls, paralysis, electrocution, or
other serious injury or death:
Description
mounting block
adjustable tube
# 10 x 2" self tapping screws
Safe Installation
To reduce the risk of electrocution, drowning, entrapment, falls, or other serious
injury or death:
Tap the platform up
enough to remove the
left and right bridge.
Proudly Made in U.S.A. by
Pull the roll guard
out of the track
about 23". The roll
guard grab handle
should be just
above the top of
the upper tread.
Using a utility knife
carefully cut 23" off
the bottom of the
roll guard. Replace
the bottom tread.
Remove the two screws holding the top
of handrails together.
(warm gray)
Remove the
outside portion
of ladder, this
is no longer
needed.
