Model# CCX-AG - CURVE ABOVE-GROUND POOL STEP ASSEMBLY INSTRUCTIONS
Check building codes/permitting. Consult your local Building Department before installation of your pool and equipment.
Pool/equipment installation must comply with the codes of the authority having jurisdiction and may require permits (e.g.,
building, plumbing, electrical, zoning, etc.).
Use for intended purpose only
• Use only as swimming pool stairs.
• These steps are designed and manufactured for a specific pool wall height and/or deck of the pool - check product
specification and the height of your pool.
Check that you have all required parts. Check the contents of the carton with the Parts list for this step system. All parts
and hardware are required. If any parts are missing, DO NOT attempt to assemble or install the steps. Instead, call Toll
Free U.S. - 800-635-3213 or visit our web site at www.conferplastics.com for assistance.
Select an appropriate location - The step system must be located on a solid base.
Follow all instructions
• For stable, correct assembly and installation, all instructions must be followed completely and in the sequence shown.
• Follow the manufacturer's recommendations for the safe use of all hand tools and equipment used during installation.
Cordless drill only - no corded drills near pool. Use a cordless drill for assembly and installation. To reduce the risk of
electrocution, NEVER use a corded drill in or around a pool.
Lift safely. When lifting awkward or heavy loads, have another person help you.
Double check after installation
• Before using the product, after assembly and installation, go over the instructions and procedures again to make sure
nothing has been overlooked.
• Make sure that safety labels are installed and legible.
Parts List
2 - Side panels [part A]
4 - Plugs [installed in parts A]
1 - Panel brace [part B]
4 - Curved risers [part C]
2 - Panel extensions [part D]
4 - Handrail posts [part E]
2 - Deck connectors [part F]
2 - Handrails [part G]
4 - Foot pads [part H]
4 - Treads [part I]
Assembly Video
Available online at
www.conferplastics.com
Confer Plastics "CURVE" Above Ground Pool Step
outward. Determine which direction you want the steps before starting assembly.
The CURVE Step requires 40 lbs. of sand to complete assembly. The Curve Step with optional add-on requires a total of
70 lbs. of sand. Choose a location close to the swimming pool for assembly. If you have a pool deck it is recommended
to build the step on top of the deck to avoid lifting completed step over the pool wall.
Step 1
Stand up both side
panels [A]. Insert panel
brace [B] with vent hole
up into opening located
on [A] then push down
to lock in place.
2
Safe Installation
To reduce the risk of electrocution, drowning, entrapment, falls, or other serious injury or
death:
prpd.Confer-CurveStepAG-USr11:Confer-Step-1_R1
Hardware Pack
10 - #10 x 1-1/4" screws
2 - Labels-No Jumping/
Diving (pre-installed)
Needed for Assembly:
- Second person to assist
- Rubber mallet
- Funnel
- Cordless Drill
- 1/8" drill bit
- Phillips screwdriver
- Liquid soap or lubricant
- Sand - 40 lbs. for (Curve Step)
- 70 lbs. for (Curve System)
Model# CCX-AG

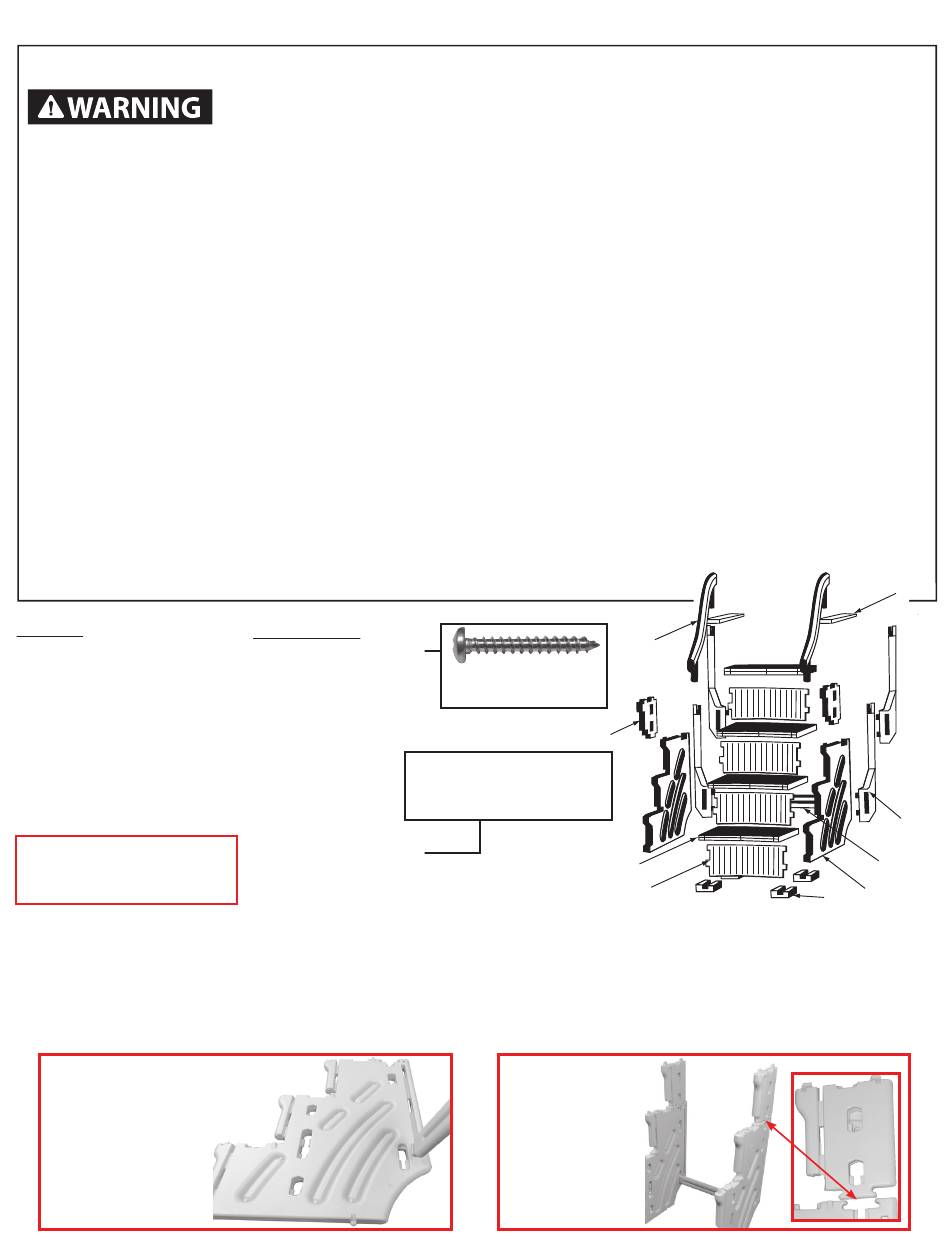

ASSEMBLY INSTRUCTIONS - PLEASE READ BEFORE ATTEMPTING AS
Parts List
2 - Side panels [part A]
1 - Panel brace [part B]
4 - Curved risers [part C]
2 - Panel extensions [part D]
Scale size photo
4 - Handrail posts [part E]
of screw
2 - Deck connectors [part F]
2 - Handrails [part G]
4 - Foot pads [part H]
4 - Treads [part I]
USE A LITTLE LIQUID
Hardware Pack
SOAP ON TABS TO HELP
4 - Plugs (wg)
WITH ASSEMBLY
8 - #10 x 1-1/4" screws
2 - Labels-No Jumping/Diving
If missing parts call - Toll free U.S. - 800-635-3213 or www.Confer
can be assembled with the treads curved inward or curved
Confer Plastics "CURVE" Above Ground Pool Step
outward. Determine which direction you want the steps before starting assembly.
The CURVE Step requires 40 lbs. of sand to complete assembly. The Curve Step with optional ad
total of 70 lbs. of sand. Choose a location close to the swimming pool for assembly. If you have
recommended to build the step on top of the deck to avoid lifting completed step over the pool
Step 1
Step 2
Stand up both side
Attach one of the
panels [A]. Insert
panel brace [B] into
panel extensions
opening located on
[D] to part [A] by
[A] then push down
sliding in from the
to lock in place.
side until flush.
Repeat to attach
the second part [D].
Step 3
2/19/13 2:55 PM Page 2
- CURVE ABOVE GROUND PO
G
D
I
C
can be assembled with the treads curve
Step 2
Step 4
F
Needed fo
- Rubber m
- Funnel
- Cordless
- Phillips s
- Liquid so
- Sand - 4
- 7
E
B
A
H
Attach one of the
panel extensions [D]
to part [A] by sliding
in from the side until
flush. Repeat to
attach the second
part [D].
