Dealer/Installer: Give manual to homeowner.
Installer: Read "Safe Installation" below and all instructions before beginning. For proper assembly and
installation, instructions must be followed completely.
Homeowner: Read "Safe Use" on back cover before using. Save these instructions.
Installation must comply with local codes and may require permits.
MODEL CK7100-X Conversion Kit
USE CK7100-X CONVERSION KIT TO CONVERT
7100X A-FRAME LADDER TO 6100X INPOOL LADDER
ASSEMBLY, INSTRUCTION AND USE MANUAL
Parts List
2 - Adjustable Tube Handrails (wg)
2 - Mounting Block (wg)
Check building codes/permitting. Consult your local Building Department before installation of your pool and
equipment. Pool/equipment installation must comply with the codes of the authority having jurisdiction and may require
permits (e.g., building, plumbing, electrical, zoning, etc.). Be sure that barriers (fences, gates, etc.) restricting pool
access meet local codes.
Use for intended purpose only
• Use only as conversion kit for ladder.
• When converted, this ladder is designed and manufactured for a specific pool wall height and/or deck of the pool -
check product specification and the height of your pool.
Check that you have all required parts. Check the contents of the carton with the Parts List for this ladder.
All parts and hardware are required. If any parts are missing, DO NOT attempt to assemble or install the ladder.
Instead, call Toll Free U.S. - 800-635-3213 or visit our web site at www.conferplastics.com for assistance.
Select an appropriate location - The ladder must be located on a level, solid base and in a location that will be
in full view of competent adult supervision when in use.
Follow all instructions
• For stable, correct assembly and installation, all instructions must be followed completely and in the
sequence shown.
• Follow the manufacturer's recommendations for the safe use of all hand tools and equipment used during installation.
Cordless drill only - no corded drills near pool. Use a cordless drill for assembly and installation. To reduce the risk of
electrocution, NEVER use a corded drill in or around a pool.
Lift safely. When lifting awkward or heavy loads, have another person help you.
Double check after installation
• Before using the product, after assembly and installation, go over the instructions and procedures again to make sure
nothing has been overlooked.
• Make sure that safety labels are installed and legible.

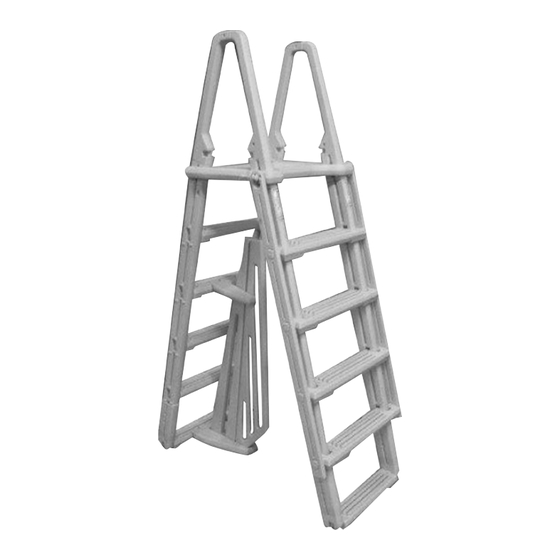

7100X A-Frame Ladder
5.
Remove the outside ladder
section by tapping on the
underside of platform until
ladder separates.
To reduce the risk of drowning, entrapment, falls, paralysis, electrocution, or
other serious injury or death:
Safe Installation
To reduce the risk of electrocution, drowning, entrapment, falls, or other serious
injury or death:
Using a rubber mallet remove
the swing-up portion of ladder
from ladder platform tabs.
Use only
in pool
section of
ladder with
anti-entrapment
barrier attached.
2 - Adjustable Tubes (wg)
Hardware Pack
14 - #10 x 1-1/4" screw
Swing-up section removed.
6.
Slide tube rails
up through
bottom of
platform until seated on tabs.
Proudly Made in U.S.A. by
(warm gray)
With a cordless drill, remove
the (2) two screws from the
top of hand rails.
7.
WARNING! Using
a corded drill near
pool may result in
electrocution.
