Quick Links
SAVE THESE INSTRUCTIONS
DEALER/INSTALLER: GIVE TO HOMEOWNER
CONFER IN-GROUND
CURVE STEP / IN-GROUND
CURVE STEP SYSTEM
ASSEMBLY AND INSTALLATION MANUAL

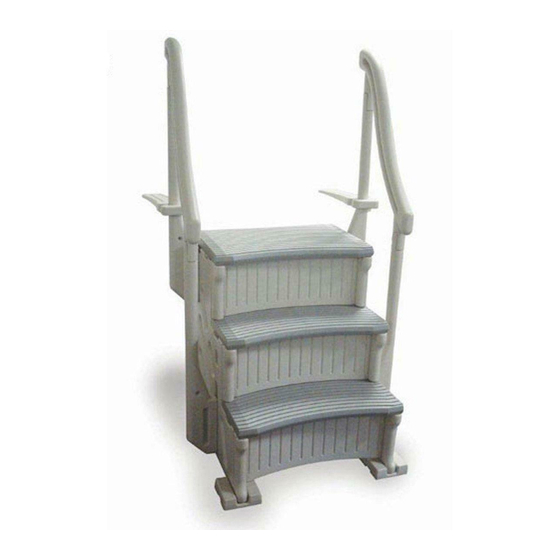

Model CCX-IG
Model CCX-IG System

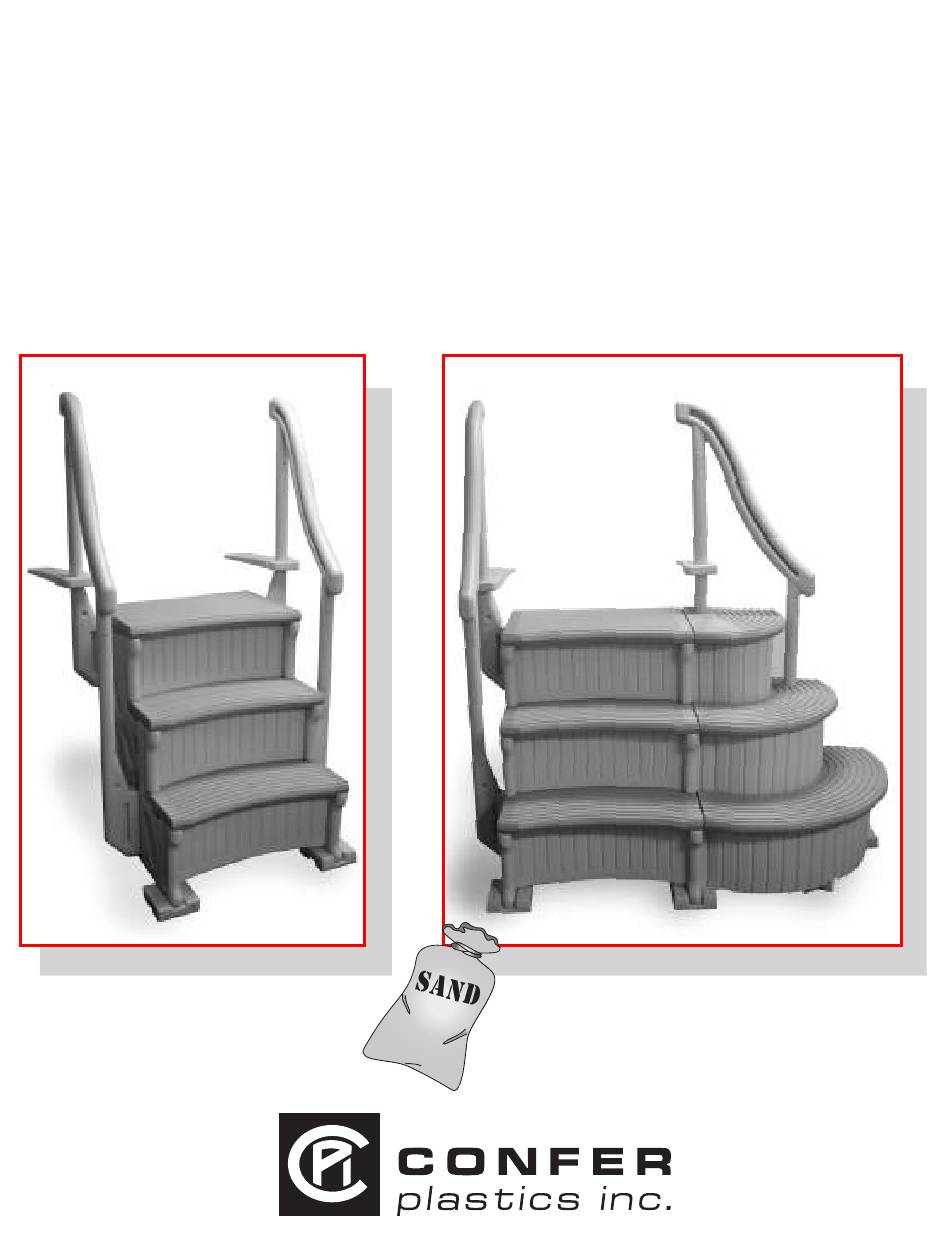

Note: 40 lbs. of sand required!
Note: 70 lbs. of sand required!
Made in the U.S.A. by
www.conferladders.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Confer Plastics CCX-IG
Summary of Contents for Confer Plastics CCX-IG
- Page 1 DEALER/INSTALLER: GIVE TO HOMEOWNER CONFER IN-GROUND CURVE STEP / IN-GROUND CURVE STEP SYSTEM ASSEMBLY AND INSTALLATION MANUAL Model CCX-IG Model CCX-IG System Note: 40 lbs. of sand required! Note: 70 lbs. of sand required! Made in the U.S.A. by www.conferladders.com...
- Page 2 Purchase locally. If missing parts call - Toll free U.S. - 800-635-3213 or www.Conferplastics.com Confer Plastics “CURVE” In-Ground Pool Step must be assembled with the treads and risers curved inward The CURVE Step requires 40 lbs. of sand to complete assembly. The Curve Step with optional add-on requires a total of 70 lbs.
- Page 3 Step 6 Step 5 Installing the Tilt the step backwards to Foot Pads [H]: expose all four If swimming of the rounded pool has a flat tabs on the bot- bottom, all four tom edges. foot pads [H] will be installed with the #1 facing up. If swimming pool has a slight taper towards the center, the back foot pads will be installed with #1 Rotate...
- Page 4 Step 13 Step 14 To install the upper The top tread [I-3] will handrail posts [E] first install slightly different locate the openings on than the previous two. panel [A] marked with Install this tread by #3. Next insert the tabs placing over the four on part [E] all the way tabs located on side...
- Page 5 CONFER CURVE STEP ADD-ON INSTRUCTIONS The curve add-on can only be installed on the right side of the step as you are facing it. The add-on requires an additional 30 lbs. of sand. Additional Parts for Step Add-On 1 - Medium flex riser [Part P] 2 - Foot pads [Part H] 1 - Medium curved tread [Part Q] 1 - Add-on panel [Part J]...
- Page 6 CONFER CURVE STEP ADD-ON INSTRUCTIONS (Cont’d.) At this time add 30 lbs of sand through the Step 26 Step 25 two fill holes located on the add-on panel. Using a funnel fill the lower hole com- The next step will require an extra set of hands to help pletely to the top with sand.
- Page 7 CONFER CURVE STEP ADD-ON INSTRUCTIONS (Cont’d.) Install the second tread Install the long handrail Install the small flex Step 33 Step 34 Step 35 [I] onto the base step post [L] into the opening riser [R] on the add-on panel [J] marked with #3 next to it.
-
Page 8: Safety Information
The Confer Curve Step can be covered, if desired, and stored outdoors. CONFER PLASTICS, INC. FIVE YEAR WARRANTY Confer Plastics, Inc. warrants their swimming pool ladders and steps to be free from defects in workmanship for five years from date of purchase. DO NOT RETURN DEFECTIVE PART TO DEALER E-MAIL CONFER PLASTICS AT: LADDERS@CONFERPLASTICS.COM...
