Dealer/Installer: Give manual to homeowner.
Installer: Read "Safe Installation" on p. 2 and all instructions before beginning. For proper assembly and installation,
instructions must be followed completely.
Homeowner: Read "Safe Use" on back cover before using. Save these instructions.
CURVE STEP / CURVE STEP SYSTEM
ASSEMBLY, INSTALLATION AND USE MANUAL
STEP MUST BE INSTALLED ON INSIDE OF POOL ONLY
Assembly video available online: www.conferplastics.com
Scan to see our
Installation Videos
Model CCX-AG
Curve Step
Note: 40 lbs. of sand required!
To reduce the risk of drowning, entrapment, falls, paralysis, electrocution, or other
serious injury or death:
MODEL CCX-AG
WEIGHT LIMIT 400 LBS.

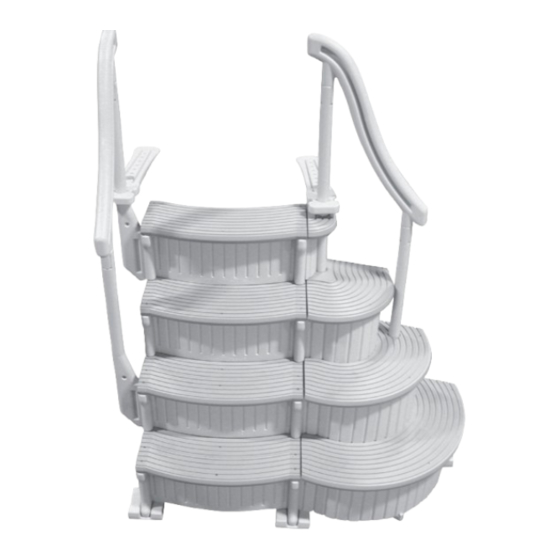

Model CCX-AG System
Curve Step System
Note: 70 lbs. of sand required!
Made in the USA
U.S. patent 8,936,134
Advertisement
Related Manuals for Confer Plastics CURVE STEP CCX-AG
Summary of Contents for Confer Plastics CURVE STEP CCX-AG
- Page 1 To reduce the risk of drowning, entrapment, falls, paralysis, electrocution, or other serious injury or death: Dealer/Installer: Give manual to homeowner. Installer: Read "Safe Installation" on p. 2 and all instructions before beginning. For proper assembly and installation, instructions must be followed completely. Homeowner: Read "Safe Use"...
- Page 2 - 70 lbs. for (Curve System) If missing parts call - Toll free U.S. - 800-635-3213 or www.Confer Confer Plastics “CURVE” Above Ground Pool Step can be assembled with the treads curved inward or curved outward. Determine which direction you want the steps before starting assembly.
- Page 3 Step 3 Step 4 With the thin edge of While holding lower the curved riser [C] tabs in part [A] align facing downward align the top tabs then the lower tabs with tap down with a the openings on part rubber mallet until [A] and push in.
- Page 4 Step 13 Step 14 To install the lower To install the upper handrail posts [E] first hand rail posts [E] locate the openings on first locate the part [A] just below the openings on panel second tread marked extension [D] with #4.
- Page 5 CONFER CURVE STEP CONFER CURVE STEP ADD-ON INSTRUCTIONS ADD-ON INSTRUCTIONS The curve add-on can only be installed on the right side The curve add-on can only be installed on the right side of the step as you are facing it. The add-on requires an additional 30 lbs. of sand. of the step as you are facing it.
- Page 6 CONFER CURVE STEP ADD-ON INSTRUCTIONS (Cont’d.) Step 25 Step 26 Fill Holes At this time add 30 lbs of The next step will require an extra set of hands to help sand through the two fill align the large flex riser [M] and the tread support [N] holes located on the add- into the groove and the openings located on the bottom on panel.
- Page 7 CONFER CURVE STEP ADD-ON INSTRUCTIONS (Cont’d.) Install the second tread Repeat step 31 to install Install the long handrail Step 35 Step 33 Step 34 [I] onto the base step the small flex riser [R] post [L] into the upper slot on add-on panel, then place the small slot is marked...
- Page 8 With the water drained your Confer step can be stored outside during the off season, it is not necessary to store inside. CONFER PLASTICS INC. FIVE YEAR WARRANTY Confer Plastics Inc. warrants their swimming pool ladders and spa products to be free from defects in workmanship for five years from date of purchase.
