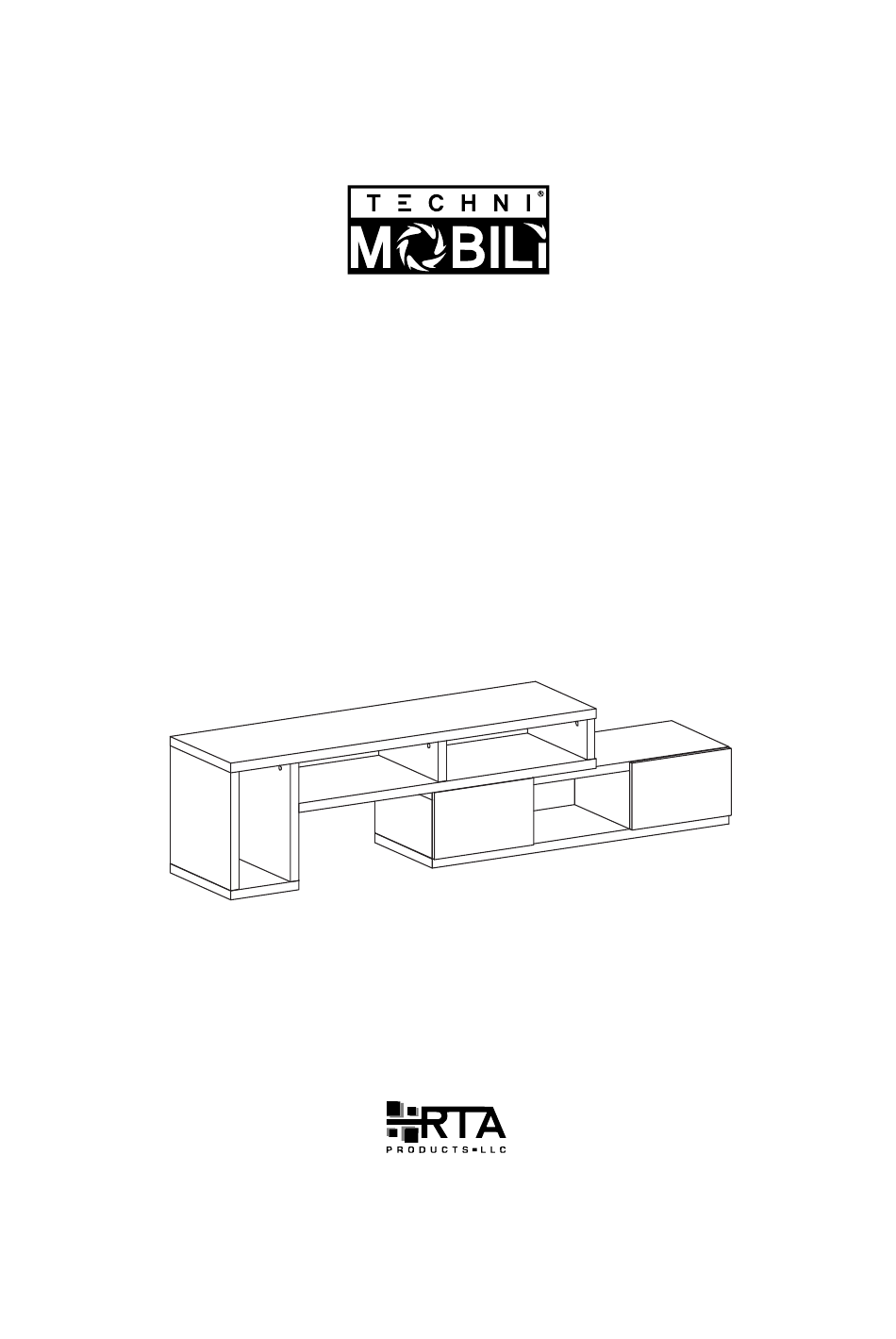

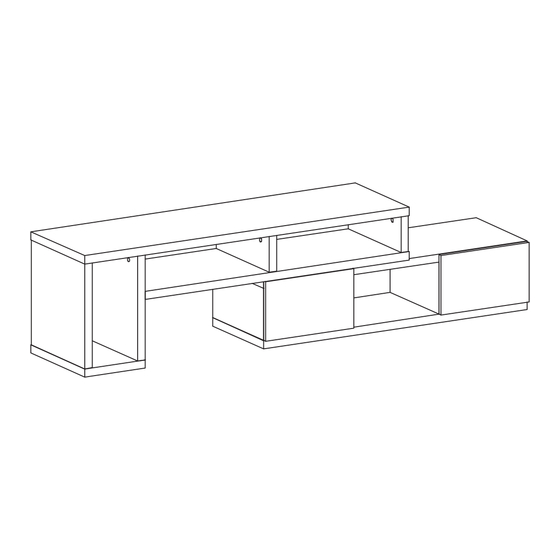

- Page 1 EXPANDABLE TV STAND CONSOLE MODEL RTA-7050 ASSEMBLY INSTRUCTIONS REV-WJ-6-8275-0824 Thank you for purchasing our product Scan QR to view full assembly video...
-
Page 2: Main Parts List
RTA-7050 Replacement Parts for International Do a quick inventory For Support, assembly questions & Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. -
Page 3: Hardware List
RTA-7050 MAIN PARTS LIST (Continued) 19-L 19-R Drawer back panel Bottom board for Sliders, Left Set Sliders, Right Set drawers 1 Left "Flat" piece and 1 Right "Flat" piece and 1 Left "L" shape piece per Set. 1 Right "L" shape piece per Set. - Page 4 RTA-7050 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step.
- Page 5 RTA-7050 THE ASSEMBLY STEPS START ON NEXT PAGE CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
-
Page 6: Assembly Steps
RTA-7050 ASSEMBLY STEPS The assembly is done is 3 stages: First you will assemble the LOWER SECTION, then the DRAWERS and last the UPPER SECTION. We recommend to place the pieces over blankets or tablecloths to protect their finish during assembly. - Page 7 RTA-7050 STEP 2 This step FIRST: Install the bolts A and the dowels requires of B into the indicated holes on panel #7. 2 persons Hardware Sets ( B a c k ) Ø8x30mm Tools (included) ( F r o n t )
- Page 8 RTA-7050 STEP 3 This step FIRST: Insert dowels B into the indicated requires of holes on panels #9, #10, #11 and #12. 2 persons Hardware Ø8x30mm ST7x58mm Ø25 (Felt) Tools (included) Tools (Not included) THEN: Assemble the bottom panel #8 to panels #9, #10, #11 and #12 with screws C.
- Page 9 RTA-7050 STEP 4 THE HARDWARE IN STEPS 4 AND 5 ARE Hardware FOR ASSEMBLING BOTH DRAWERS. Sets FIRST: Assemble the back panel # 17 to panels #15 and #16 with screws D. ST3.5x40 Tools (included) r o n r o n NOTE: All the grooves will align.
- Page 10 RTA-7050 STEP 5 Hardware FIRST: Identify on sliders #19 their front and back. ST3x14 Tools (included) L e f R i g ( B a ( B a c k ) c k ) ( F r ( F r...
- Page 11 RTA-7050 P.10 P.10 STEP 6 Hardware FIRST: Attach the bolts A and the dowels B into the indicated holes on panels #1 and #5. Bolt Cam lock Ø8x30mm Tools (included) ( T o Tools (Not included) t t o m...
- Page 12 RTA-7050 P.11 P.11 STEP 7 This step FIRST: Attach the dowels B requires of into the indicated holes on 2 persons the panels #3, #4 and #5. Hardware Cam Lock Ø8x30mm ST7x58 Tools (included) THEN: Assemble the bottom panel #2 to panels #3 and to panel #5 with cam locks A.
- Page 13 RTA-7050 P.12 P.12 STEP 8 This step requires of 2 persons FIRST: Assemble the Hardware bottom panel #6 to panels #4 and #5 with screws C. ST7x58 Ø25mm (Felt) Ø22mm (Laminate) Tools (included) THEN: Attach the felt stickers F to the corners of panel #6, and use the stickers G to cover the cam locks on panels #3, #4 and #5.
-
Page 14: Care And Maintenance
RTA-7050 P.13 P.13 TIP-OVER WARNING! Not paying attention to the following warnings could result in injuries. Always pay close attention to small children playing near the unit or if they are watching TV very close to it, to prevent tip-over accidents. - Page 15 RTA-7050 P.14 P.14 TECHNI MOBILI WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein. "Defects" as used in this warranty, is defined as any imperfections that impair the use of the furniture or product.
