Summary of Contents for Techni Mobili RTA-739DL

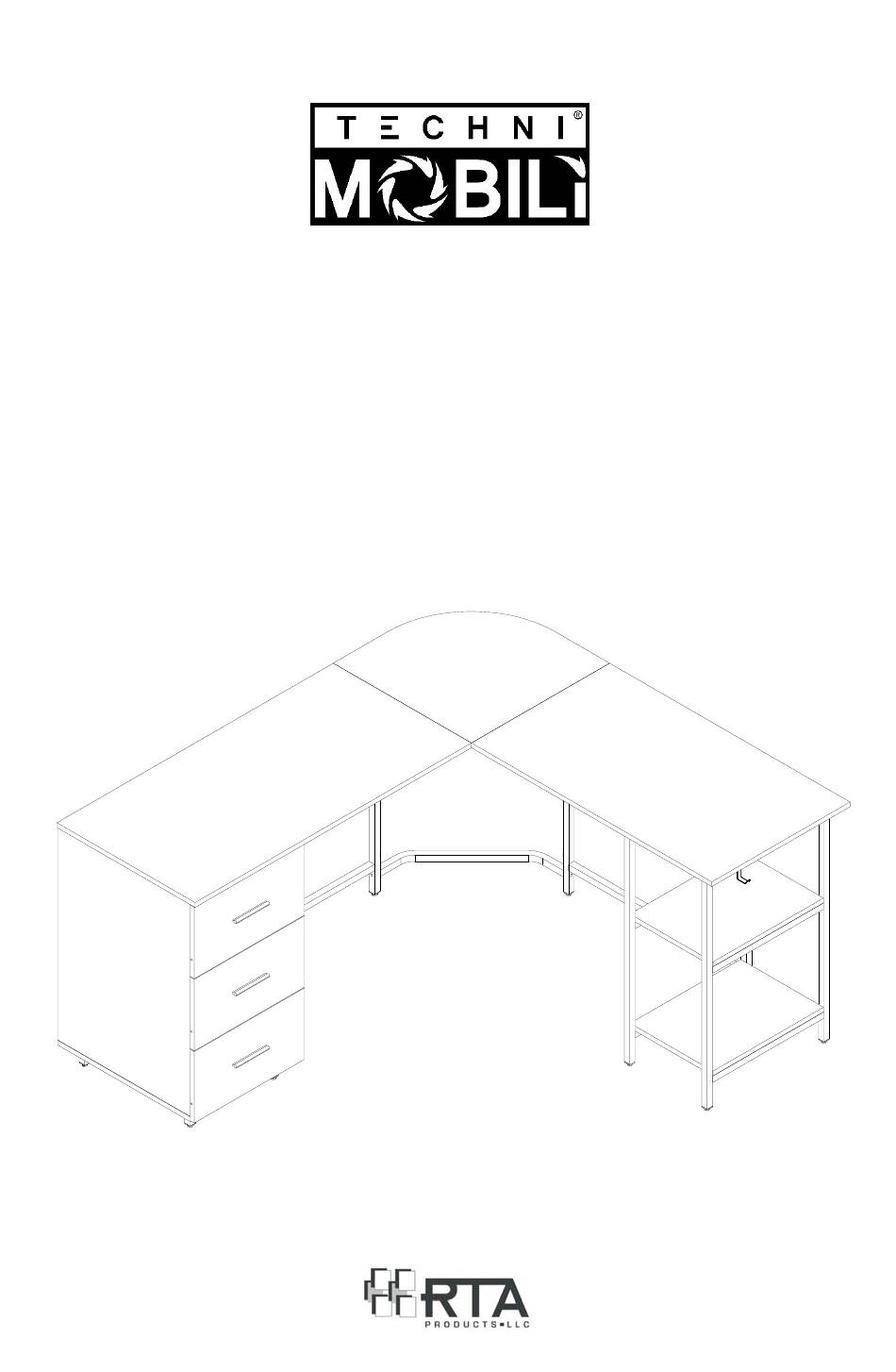

- Page 1 MODEL RTA-739DL ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.PRF-6378-0222-0...
- Page 2 RTA-739DL • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-739DL MAIN PARTS LIST Right frame Left frame Center-left leg Center-right leg Left-top-back tube Left-bottom-back tube Left-top-front tube Right-top-back tube Right-bottom-back tube Right-top-front tube Corner-bottom-back tube Earphones Foot hook Left tabletop Corner top Right tabletop Right shelf panel... - Page 4 RTA-739DL MAIN PARTS LIST Left panel Back panel Right panel Bottom panel Drawer front panel Drawer right panel Drawer left panel Drawer back panel Drawer bottom Sliders*, each set of 4 pcs panel * Screws D Sets come packaged together with these pieces.
- Page 5 RTA-739DL MAIN PARTS LAYOUT (FOR REFERENCE):...
- Page 6 RTA-739DL ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
- Page 7 RTA-739DL BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 8: Assembly Steps
RTA-739DL ASSEMBLY STEPS STEP 1 Grab all the sets of sliders 27 and separate them into 2 groups according to their shape: - The “Flat” ones will be used on the next step. - The “L Shaped” will be used until step 18, set them aside. - Page 9 RTA-739DL STEP 3 • Insert the dowels C in the indicated holes on panels 18 and 19. • Attach the bolts A into the indicated holes on panels 18 and 19. Hardware: • Join panel 18 to 20, insert the cam locks B on panel 20 and turn them to lock the pieces as explained in page 5.
- Page 10 RTA-739DL STEP 5 Attach the feet 12 to the bottom panel 21 with screws D. Hardware: M3.5x14 STEP 6 Bring the cabinet upright and attach the brackets L to panel 19 facing UP with screws F. Hardware: M6x12 Brackets...
- Page 11 P.10 RTA-739DL P.10 STEP 7 Do not tighten any screws until the end of step 13. Hardware: • Place the tubes 5, 6 and 7 on top of the brackets L in their respective position and assemble them with screws F as shown.
- Page 12 P.11 RTA-739DL P.11 STEP 9 • Assemble the shelves 17 to the frames 1 and 2 with screws H from underneath as shown. Hardware: • Attach the hook 13 to the frame 1 with screw F from inside. M6x12 M6x30...
- Page 13 P.12 RTA-739DL P.12 STEP 11 With the help of another person, place the corner top 15 and the right • tabletop 16 over the structures. Hardware: • Using screws H from underneath, secure the corner top 15 to the tubes 3, 4, 5, 7 and 8, and secure the right tabletop 16 to the frames...
- Page 14 P.13 RTA-739DL P.13 STEP 13 With the help of another person, carefully place the left tabletop 14 • Hardware: over the left cabinet making sure the bolts and dowels enter into the holes of panels 18 and 19. • Insert the cam locks B in panels 18 and 19, and turn them to lock Ø15x12...
- Page 15 P.14 RTA-739DL P.14 STEP 14 For each of the 3 drawers, assemble the side panels 23 and 24 to the back panel 25 with screws I. Please note the alignment of the grooves at Hardware: the bottom of the panels.
- Page 16 P.15 RTA-739DL P.15 STEP 18 For each of the 3 drawers, flip them upside-down and assemble the "L" sliders 27 with screws D, making sure the wheel goes towards the back, Hardware: and that they don’t protrude, otherwise, the drawer raises 1” and won’t fit in the cabinet.
- Page 17 P.16 RTA-739DL P.16 ALL DONE! Give yourself a nice pat on the back. You did a great job! Handles for desk color GOLD only:...
- Page 18 P.17 RTA-739DL P.17 CARE, MAINTENANCE AND SAFETY WARNINGS: 88 Lbs. WEIGHT LIMITS (40 Kg) 88 Lbs. 88 Lbs. (40 Kg) (40 Kg) 66 Lbs. 11 Lbs. (30 Kg) (5 Kg) 11 Lbs. 66 Lbs. (5 Kg) (30 Kg) 11 Lbs.
- Page 19 P.18 RTA-739DL P.18 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 20 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
