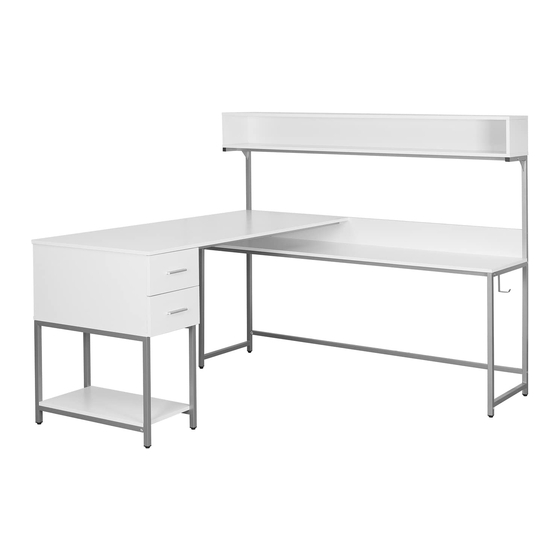

MODEL RTA-737DL
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.PFT-6378-0221-0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-737DL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Techni Mobili RTA-737DL

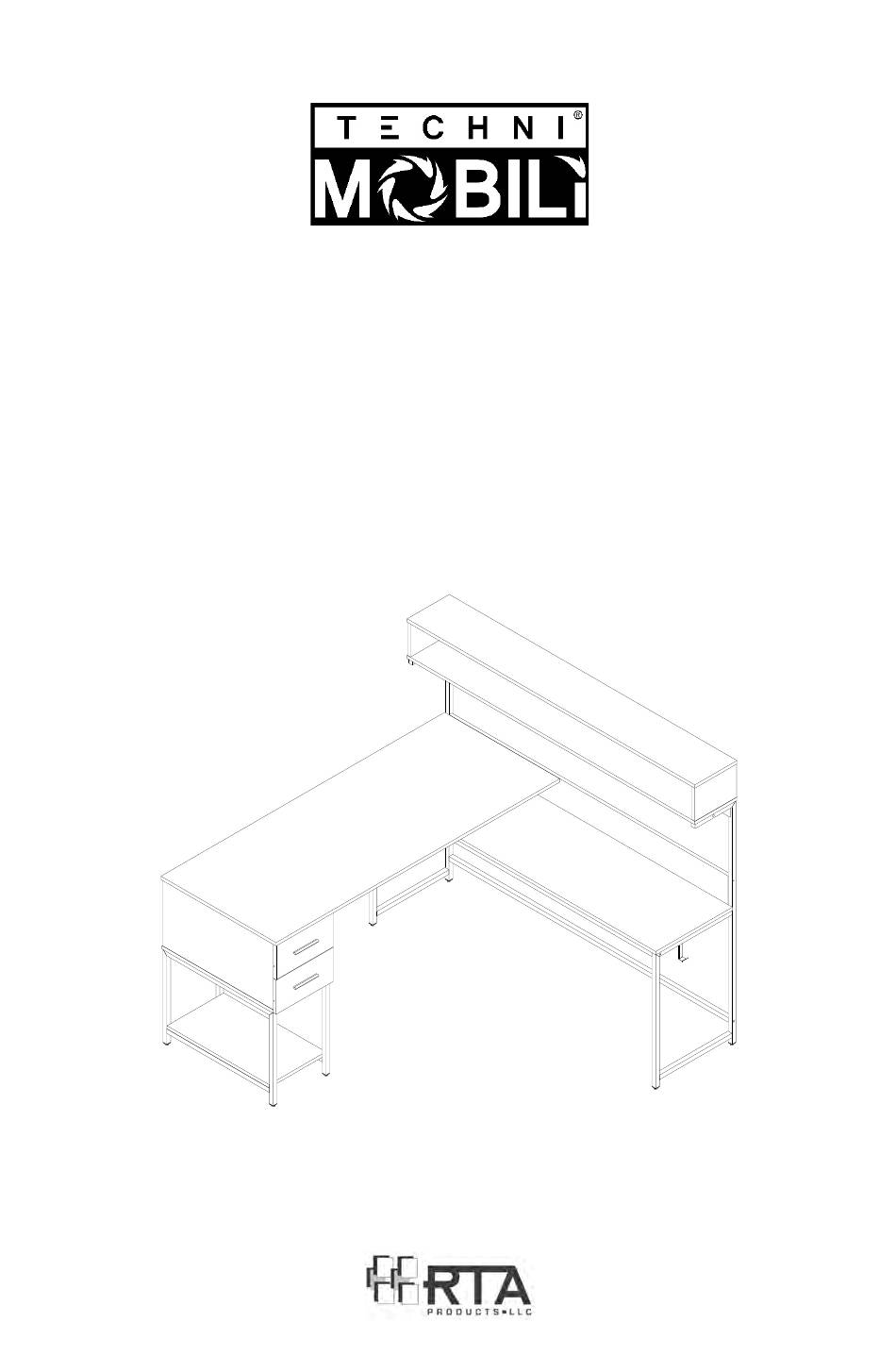

  • Page 1 MODEL RTA-737DL ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.PFT-6378-0221-0...
  • Page 2 RTA-737DL • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
  • Page 3: Main Parts List

    RTA-737DL MAIN PARTS LIST Left cabinet leg Left frame Right frame Left-top-front tube Right-top and front-tube Earphone hook Right-bottom-back tube Left tabletop Right back panel Left back panel Top shelf top panel Top shelf bottom panel Right tabletop Top shelf back panel...
  • Page 4 RTA-737DL MAIN PARTS LIST Left cabinet left Left cabinet right Left cabinet back Left cabinet bottom panel panel panel panel Drawer front panel Left bottom Drawer right panel Drawer left panel accessory shelf Drawer back panel Drawer sliders*, each set of 4 pcs...
  • Page 5 RTA-737DL MAIN PARTS LAYOUT (FOR REFERENCE): Drawers...
  • Page 6 RTA-737DL ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
  • Page 7 RTA-737DL BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
  • Page 8: Assembly Steps

    RTA-737DL ASSEMBLY STEPS STEP 1 Grab all the sets of sliders 27 and separate them into 2 groups according to their shape: - The “Flat” ones will be used on the next step. - The “L Shaped” will be used until step 23, set them aside.
  • Page 9 RTA-737DL STEP 3 • Attach the bolts A into the indicated holes on panels 17 and 18. Hardware: • Join panels 17 and 18 to panel 19. • Insert the cam locks B on panel 19 and turn them to lock the pieces as explained in page 5.
  • Page 10 RTA-737DL STEP 6 Place the cabinet built in step 4 over the legs 1 and assemble the Hardware: bottom panel 20 with screws D from underneath. The screws go through the legs and into the panel. M6x30 STEP 7 • Assemble the right back panel 9 to the right tabletop 12 with screws C from behind.
  • Page 11 P.10 RTA-737DL P.10 STEP 8 Attach the hook 7 to the right frame 3 with screw E, but pay attention to Hardware: the orientation of the hook. M6x12 The hook attaches on the inside, but faces towards the outside STEP 9 With the help of another person, and following this order: •...
  • Page 12 P.11 RTA-737DL P.11 STEP 10 • With the help of another person, bring the structure built in step 9 to Hardware: the upright position. • Secure the tabletop 12 to the frames 2 and 3 with screws D from underneath.
  • Page 13 P.12 RTA-737DL P.12 STEP 12 • Assemble the tube 4 to panels 9 and 18 with screws F. Hardware: • Assemble the panel 18 to panel 11 with screws C. M5x40 M6x40 STEP 13 Install bolts A and dowels G into the indicated holes on the left tabletop 8.
  • Page 14 P.13 RTA-737DL P.13 STEP 14 • With the help of another person, place the left tabletop 8 over the unit Hardware: on the left side. • Insert the cam locks B into panels 11, 17 and 18, and turn them to lock the pieces as explained in page 5.
  • Page 15 P.14 RTA-737DL P.14 STEP 16 Assemble the bottom panel 13 to panels 14, 15 and 16 with screws C. Hardware: M5x40 STEP 17 Assemble the top panel Hardware: 10 to panels 14, 15 and 16 with bolts A and B as M5x40 ned in page 5.
  • Page 16 P.15 RTA-737DL P.15 For each of the 2 drawers, STEP 20 STEP 19 assemble the side panels For each of the 2 drawers, slide the bottom Hardware: 23 and 24 to the front panel 26 through the grooves of the side panel 22 with bolts A and panels and into the front panel as shown.
  • Page 17 P.16 RTA-737DL P.16 STEP 24 • Cover the cam locks on the inside of the top shelf with stickers K. Hardware: • Insert the drawers into the cabinet, first the bottom one, them the top one. Insert at an angle with their fronts facing down, making sure the wheels from the drawer slide in the middle of the sliders inside the cabinet.
  • Page 18: Weight Limits

    P.17 RTA-737DL P.17 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 33 Lbs. (15 Kg) 33 Lbs. (15 Kg) 88 Lbs. 88 Lbs. (40 Kg) (40 Kg) 2.2 Lbs. 11 Lbs. (1 Kg) (5 Kg) 66 Lbs. (30 Kg) • Do not exceed the indicated weight limits.
  • Page 19 P.18 RTA-737DL P.18 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 20 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
