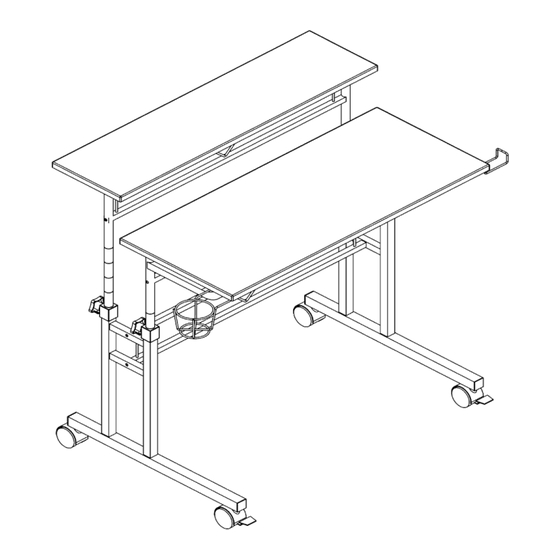

ASSEMBLY INSTRUCTIONS
WARNING: To avoid serious personal injury:
•
Carefully and strictly follow assembly instruc�ons. Improper assembly of
furniture can result in structural failure, instability of the product, or �p-
over.
•
Monitor and carefully control the assembly components. These include
small parts and hardware that may present a choking hazard to small
children. Bob's furniture should be assembled only by responsible adults
and children should not be involved in the assembly process.
•
Where provided, wall moun�ng hardware should always be used as
prescribed in these instruc�ons to anchor furniture to wall. Proper use of
the wall moun�ng hardware can significantly reduce the poten�al for
furniture �p-over and crushing injuries.
Advertisement
Related Manuals for Techni Mobili RTA-3800SU
Summary of Contents for Techni Mobili RTA-3800SU

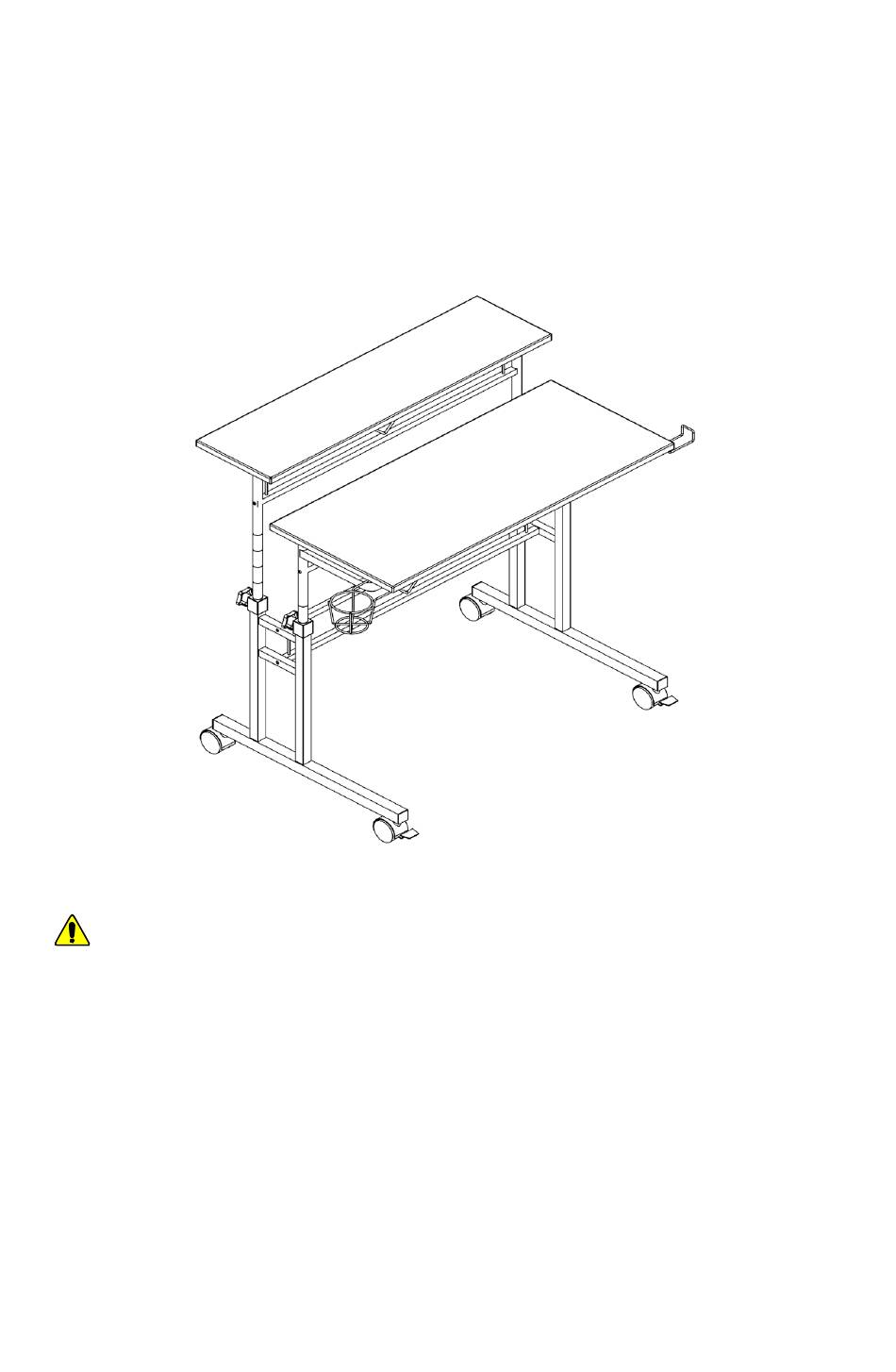

- Page 1 ASSEMBLY INSTRUCTIONS WARNING: To avoid serious personal injury: • Carefully and strictly follow assembly instruc�ons. Improper assembly of furniture can result in structural failure, instability of the product, or �p- over. • Monitor and carefully control the assembly components. These include small parts and hardware that may present a choking hazard to small children.
- Page 2 RTA-3800SU • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
MAIN PARTS LIST Back tabletop Front tabletop Metal leg Back structure Front structure Central structure Headphone hanger Back lift structure Front lift structure Cup holder LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x38 Plastic cover M6x32 M6x25 Screw knob M4x12... - Page 4 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step. •...
-
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 First install the non-locking casters E at the back of the legs 3, and the locking casters F at the front using the cone wrench (spanner) as shown. Hardware: Then attach the plastic covers G1 and screw knobs G2 to the top of the legs 3, making sure the knob faces towards the back as shown. - Page 6 STEP 3 Assemble the back structure 4 to the back lift structures 7 using screws Hardware: A as shown. M6x38 (Front) STEP 4 Assemble the front structure 5 to the front lift structures 8 using screws A, making sure the holes on 5 face UP as shown. Hardware: M6x38 (Front)
- Page 7 First make sure the screw knobs G2 are loose, then with the help of STEP 5 another person, insert the front lift structures 8 thru the covers G1 and into the legs 3. DO NOT TIGHTEN the screw knobs yet. (Front) STEP 6 Assemble the front tabletop 2 to the frame using:...
- Page 8 First make sure the screw knobs G2 are loose, then with the help of STEP 7 another person, insert the back lift structures 7 thru the covers G1 and into the legs 3. DO NOT TIGHTEN the screw knobs yet. UNIT SHOWN FROM BEHIND WITH...
- Page 9 STEP 9 Assemble the headphone hanger 9 and the cup holder 10 to the front Hardware: tabletop 2 on the sides of your preference using screws D from underneath as shown. Proceed to set the heights of the tabletops according to your M4x12 preference, and tighten the screw knobs.
-
Page 10: Weight Limits
AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 2.2 Lbs. 11 Lbs. (1 Kg) (5 Kg) 44 Lbs. (20 Kg) 2.2 Lbs. (1 Kg) • Do not exceed the indicated weight limits. •...
