Summary of Contents for Techni Mobili RTA-733DL

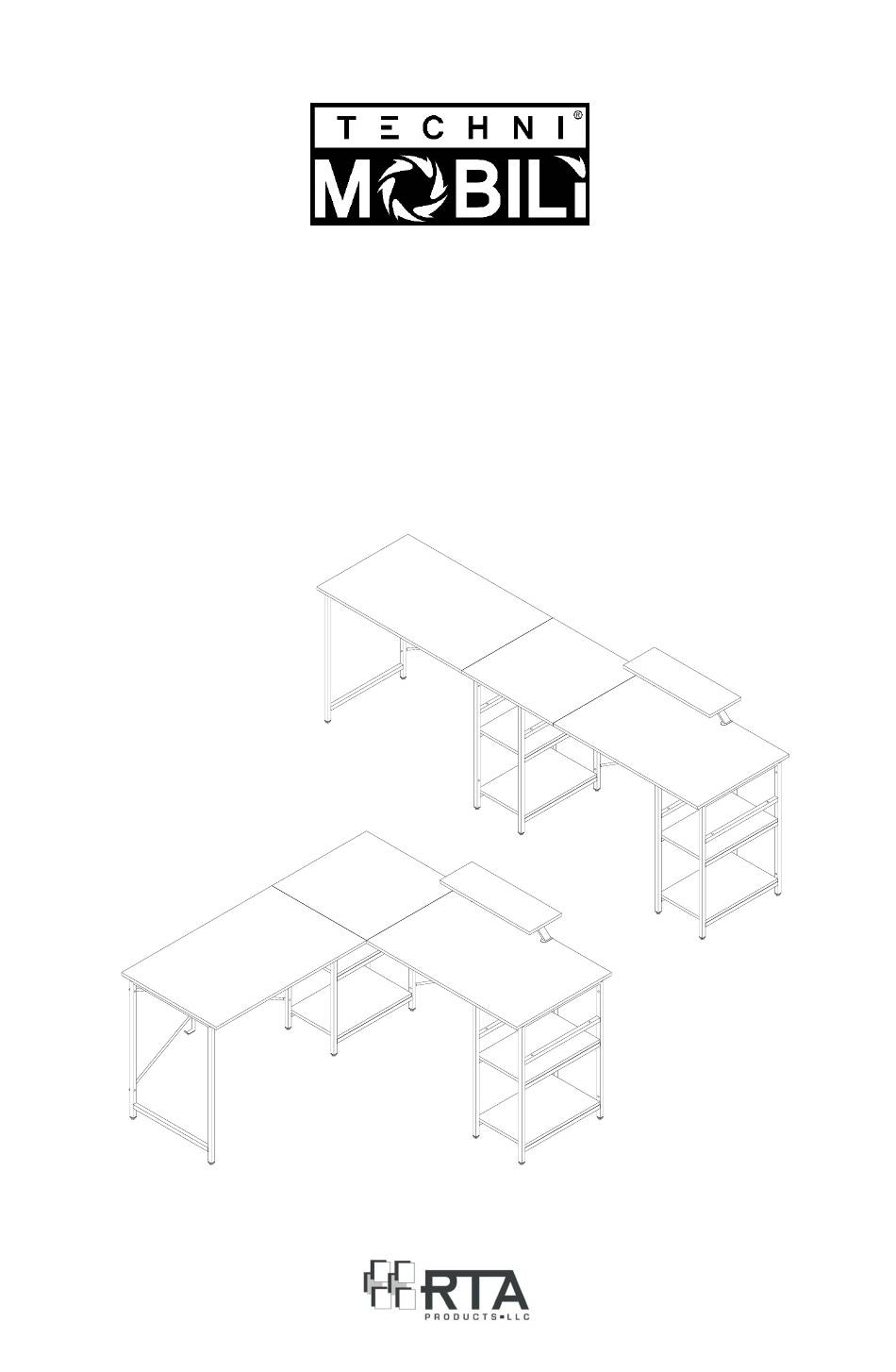

- Page 1 MODEL RTA-733DL ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. Option A Option B REV.PFT-6378-0222-0...
- Page 2 RTA-733DL • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-733DL MAIN PARTS LIST Left tabletop Corner top Right tabletop Shelf Left frame Adjustable top shelf Right and center-right frame Center-left frame Left-top-back tube Left-top-front tube Right-top-back tube Right-top-front tube Stand Short cross tube Long cross tube Earphones support hook... - Page 4 RTA-733DL MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM 30x25mm M6x12 Protector 25x25 M6x30 Bracket M4 Allen M6x40 wrench M6 Nut cap Wrench (Spanner) M6 Screw knob...
- Page 5 RTA-733DL BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 6: Assembly Steps
RTA-733DL ASSEMBLY STEPS STEP 1 • Assemble one of the shelves 4 to the bottom bars on the right frames 7 with screws B from underneath. Hardware: • Assemble another shelf 4 to either set of middle bars on the frames 7... - Page 7 RTA-733DL STEP 3 • Assemble the right-top-back tube 11 and the right-top-front tube 12 in between the frames 7 in their corresponding positions with screws C. Hardware: • Pay attention to the orientation of the holes on the frames and tubes.
- Page 8 RTA-733DL STEP 5 • With the help of another person, place the corner top 2 and the right tabletop 3 over the frame, making sure the holes align. Hardware: • Secure the tabletops to the frames 7, 8 and the tubes 11 and 12 with...
- Page 9 RTA-733DL STEP 7 • With the left tabletop 1 flipped upside-down, assemble to it the tubes 6, 9 and 10 with screws B, but leave the screws loose to allow Hardware: flexibility to fix any misalignments. • Attach the bracket G to the tube 9 with screw A. Make sure to leave M6x12 the bracket facing towards the outside.
- Page 10 RTA-733DL At this point you will have 2 options to finish building your desk: A. Straight which allows to seat 2 persons. Follow steps 9A, 10A and 11A. B. As an “L” shape for ample workspace for 1 person. Follow steps 9B, 10B and 11B.
- Page 11 P.10 RTA-733DL P.10 STEP 9A With the help of another person, assemble the left tabletop 1 to the rest of the unit using: Hardware: • Screw B going through the frame 7 and the bracket G on the tube 9 at the back of the unit, and secure with nut cap D.
- Page 12 P.11 RTA-733DL P.11 STEP 10A • Join the long cross tubes 13 to each other in the center with screw A Hardware: and nut cap D, but leave them loose. • Attach the cross tubes 13 to the frames 6 and 8 with screws B and nut caps D.
- Page 13 P.12 RTA-733DL P.12 STEP 11A • Mount the supports 15 to either tabletop 1 or 3 with the screw knobs E and the protector F. Hardware: ON RIGHT SIDE Screw knob 30x25 Protector OR ON LEFT SIDE STEP 11B • Mount the supports 15 to either tabletop 1 or 3 with the screw knobs E and the protector F.
- Page 14 P.13 RTA-733DL P.13 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 88 Lbs. 88 Lbs. (40 Kg) (40 Kg) 22 Lbs. (10 Kg) 88 Lbs. 66 Lbs. (40 Kg) (30 Kg) 66 Lbs. (30 Kg) • Do not exceed the indicated weight limits.
- Page 15 P.14 RTA-733DL P.14 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 16 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
