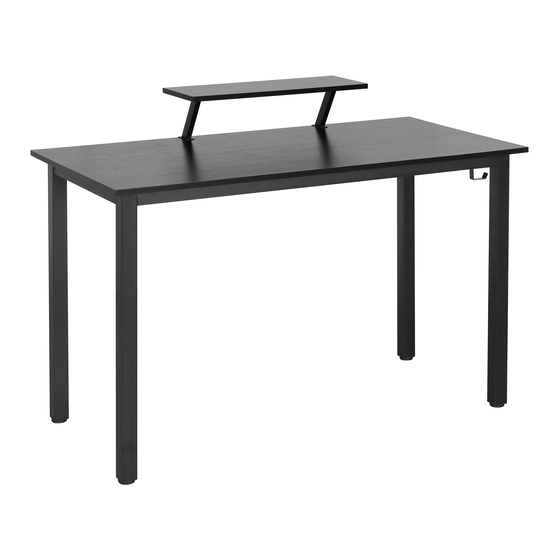

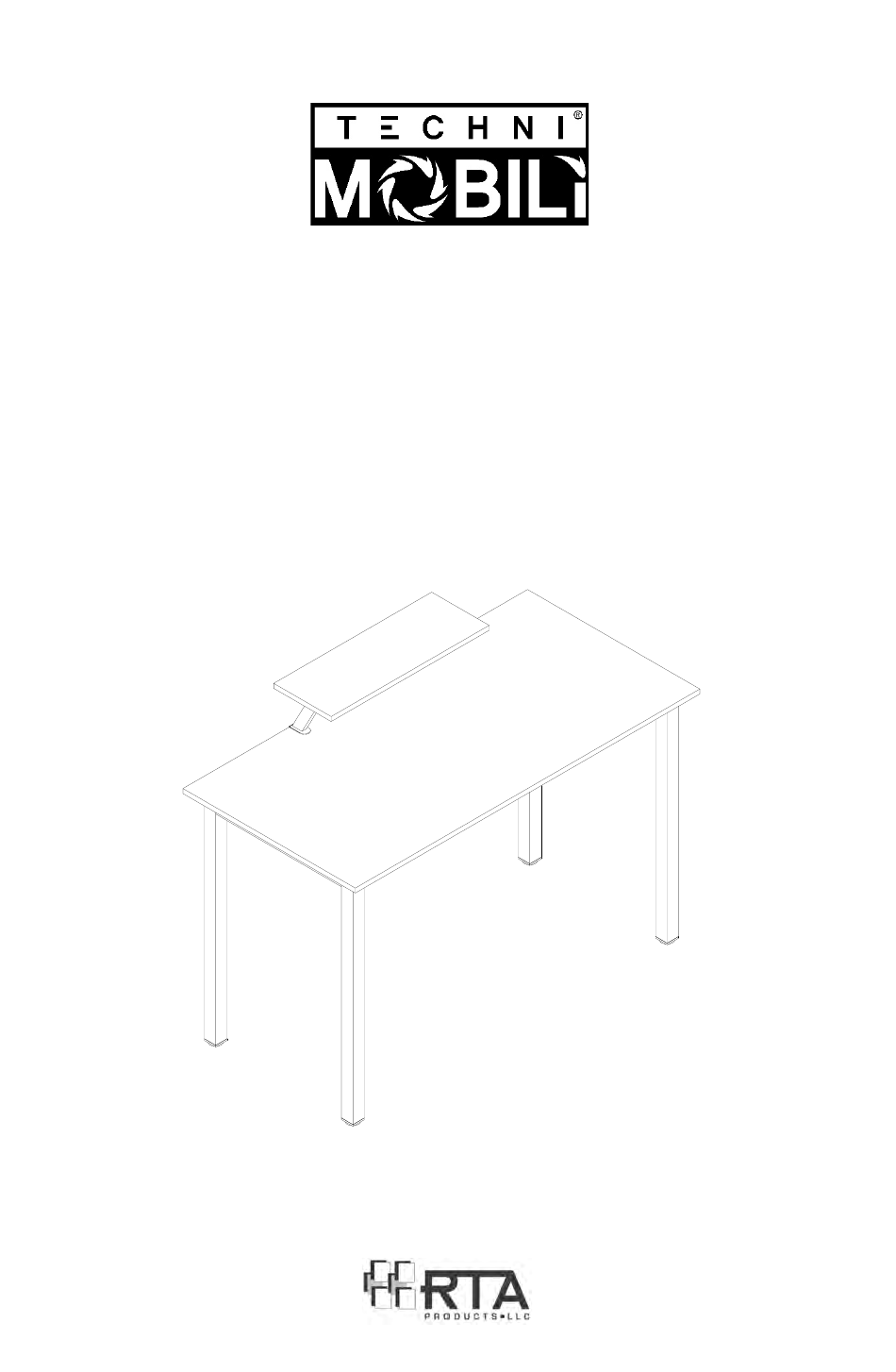

- Page 1 MODEL RTA-7312D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.PRF-6378-0222-0...
- Page 2 RTA-7312D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
- Page 3 RTA-7312D MAIN PARTS LIST Frame Stand support Earphone hook Top shelf Tabletop LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x50 Screw knob M8x70 M8xØ38 Glide stud Ø8 (Washer) Protector Ø9 (O-ring) Allen wrench M6x12 Allen wrench...
- Page 4 RTA-7312D ❼ BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
- Page 5 RTA-7312D ASSEMBLY STEPS Attach the glide studs G to the bottom of the legs 2. STEP 1 Hardware: Glides (Bottom) (Top) • Attach the hook 4 to the frame 1 with screw E using Allen wrench M4. STEP 2 • Assemble the legs 2 to each corner of the frame 1 with screws B, Hardware: washers C and O-rings D using Allen wrench M6.
- Page 6 RTA-7312D • With the help of another person, put the frame upright and place over STEP 3 it the tabletop 6 making sure the holes coincide with the ones on the Hardware: frame. • Assemble the tabletop to the frame 1 with screws A from underneath.
- Page 7 RTA-7312D ALL DONE! Give yourself a nice pat on the back. You did a great job!
- Page 8 RTA-7312D CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 22 Lbs. 88 Lbs. (10 Kg) (40 Kg) 2.2 Lbs. (1 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
- Page 9 RTA-7312D TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 10 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
