Summary of Contents for Techni Mobili RTA-739DL

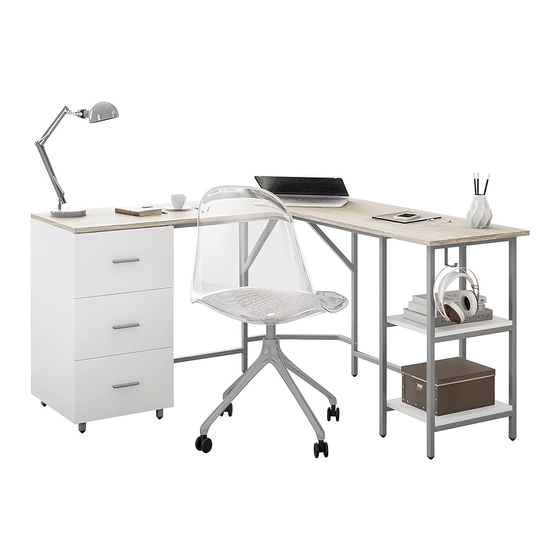

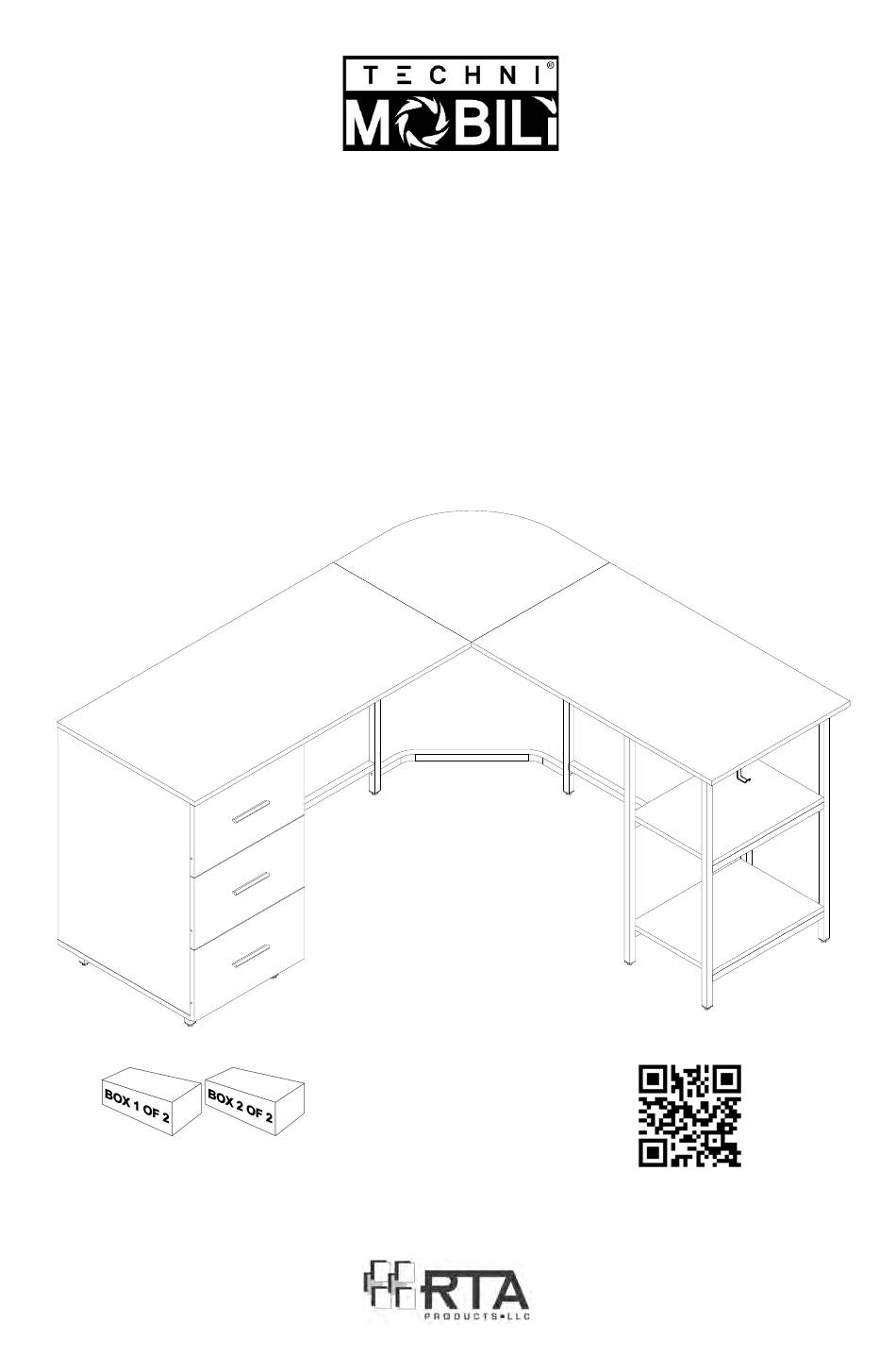

- Page 1 L-SHAPE HOME OFFICE TWO-TONE DESK WITH STORAGE MODEL RTA-739DL ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. Please note that this product comes packaged Scan QR code to in 2 separate boxes. view assembly video REV.PFT-6839-0822...
- Page 2 RTA-739DL • The product comes packaged in 2 separate boxes. • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. •...
-
Page 3: Main Parts List
RTA-739DL The replacement parts service is limited to the Do a quick inventory Missing, damaged and defective 48 contiguous United States. If you reside in of all the parts and parts can be replaced at no cost AK, HI, PR, U.S. territories or other countries, hardware listed in the to you. - Page 4 RTA-739DL MAIN PARTS LIST (Continue) Right shelf panel Right tabletop Left panel Back panel Right panel Bottom panel Drawer front panel Drawer right panel Drawer left panel Drawer back panel Drawer bottom Sliders*, each set of 4 pcs * 24 pcs of...
- Page 5 RTA-739DL MAIN PARTS LAYOUT (FOR REFERENCE):...
- Page 6 RTA-739DL LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM M5x42 bolts Ø15x12 Cam locks Ø8x40 Dowels * 24 pcs of these come with the M3.5x14 sliders 27 M7x50 M6x12 M6x40 M6x30 M5x40 M4x18 * Desk colors Sand and Walnut use...
- Page 7 RTA-739DL CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS. Cam Lock Cam Bolt This is a tutorial that explains how to use this kind of hardware on the steps where they are required. 1. Screw the bolt into the indicated hole on 2.
- Page 8 RTA-739DL BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance. Please refer to the last pages on this manual.
-
Page 9: Assembly Steps
RTA-739DL ASSEMBLY STEPS STEP 1 Grab all the sets of sliders 27 and separate them into 2 groups according to their shape: - The “Flat” ones will be used on the next step. - The “L Shaped” will be used until step 18, set them aside. - Page 10 RTA-739DL STEP 3 • Insert the dowels C in the indicated holes on panels 18 and 19. Hardware: • Attach the bolts A into the indicated holes on panels 18 and 19. • Join panels 18 and 19 to panel 20, insert the cam locks B on panel 20 and turn them to lock the pieces as explained in page 6.
- Page 11 P.10 RTA-739DL P.10 STEP 5 Attach the feet 12 to the bottom panel 21 with screws D. Hardware: M3.5x14 Scan QR Code to view this step STEP 6 Bring the cabinet upright and attach the brackets L to panel 19 facing UP Hardware: with screws F.
- Page 12 P.11 RTA-739DL P.11 STEP 7 DO NOT TIGHTEN ANY SCREWS UNTIL THE END OF STEP 13. Hardware: • Place the tubes 5, 6 and 7 on top of the brackets L in their respective positions and assemble them with screws F as shown.
- Page 13 P.12 RTA-739DL P.12 STEP 9 • Assemble the shelves 17 to the frames 1 and 2 with screws H from Hardware: underneath as shown. • Attach the hook 13 to the frame 1 with screw F from inside. M6x12 M6x30...
- Page 14 P.13 RTA-739DL P.13 STEP 11 • With the help of another person, place the corner top 15 and the right Requires tabletop 16 over the structures. of 2 • Using screws H from underneath, secure the corner top 15 to the...
- Page 15 P.14 RTA-739DL P.14 STEP 13 • With the help of another person, carefully place the left tabletop 14 Requires over the left cabinet making sure the bolts and dowels enter into the of 2 holes of panels 18 and 19.
- Page 16 P.15 RTA-739DL P.15 STEP 14 For each of the 3 drawers, assemble the side panels 23 and 24 to the Hardware: back panel 25 with screws I. Please note the alignment of the grooves at the bottom of the panels.
- Page 17 P.16 RTA-739DL P.16 STEP 17 • For each of the 3 drawers, assemble the front panel 22 to panels 23 Hardware: and 24 with bolts A and cam locks B as explained in page 6. Please note that the bottom panel 26 will enter into the groove of panel 22.
-
Page 18: Weight Limits
P.17 RTA-739DL P.17 WEIGHT LIMITS 88 Lbs. (40 Kg) 88 Lbs. 88 Lbs. (40 Kg) (40 Kg) 66 Lbs. 11 Lbs. (30 Kg) (5 Kg) 11 Lbs. 66 Lbs. (5 Kg) (30 Kg) 11 Lbs. (5 Kg) CARE, MAINTENANCE AND SAFETY WARNINGS: •... - Page 19 P.18 RTA-739DL P.18 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 20 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: AND CLICK ON SUPPORT TAB Or scan the following QR Code: Scan the following QR Code to order replacement parts: EMAIL US: SUPPORT@RTAPRODUCTS.COM...
