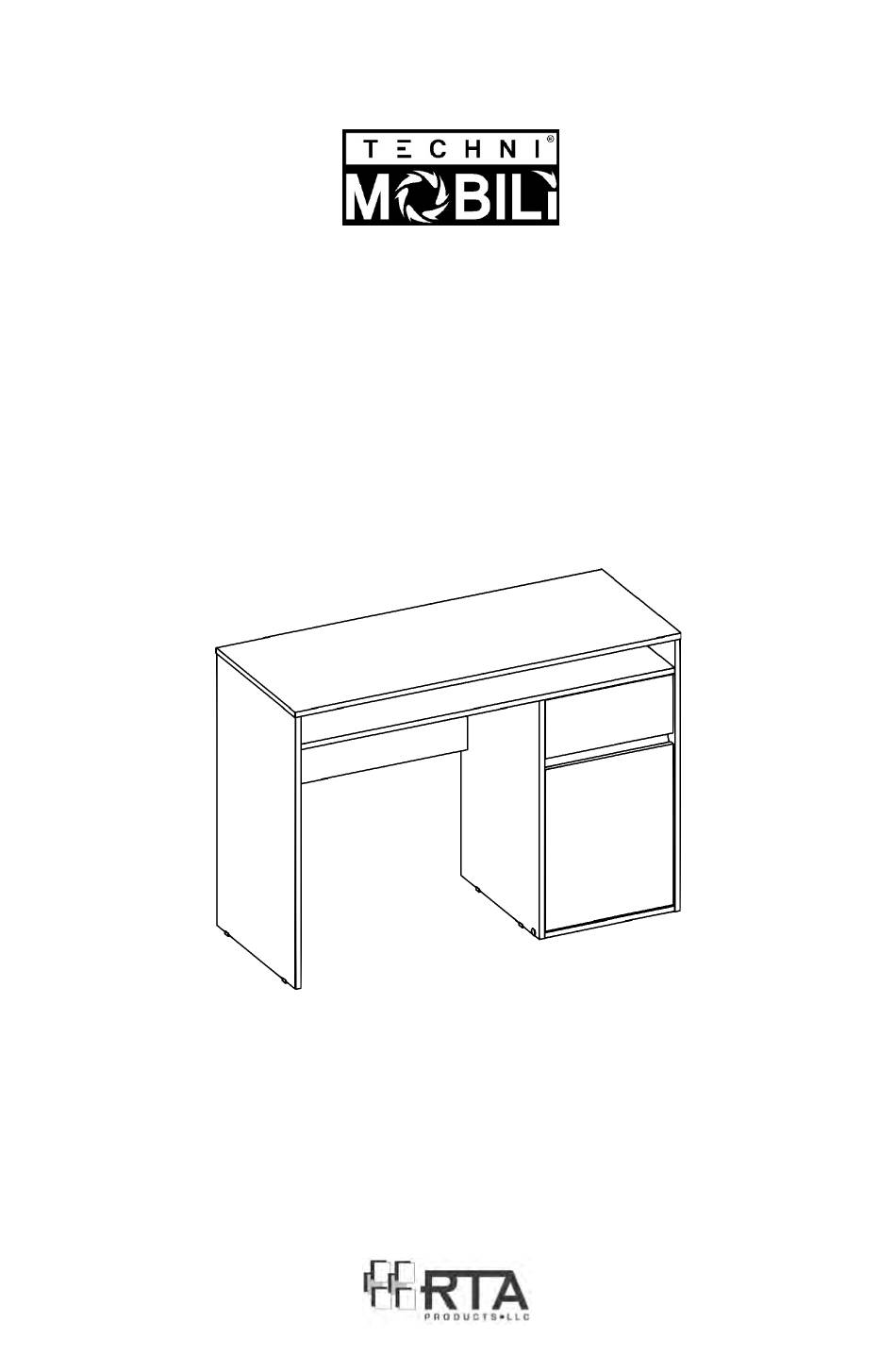

- Page 1 MODEL RTA-957D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.CMN-6659-0722...
- Page 2 RTA-957D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require of two people for the assembly.
-
Page 3: Main Parts List
RTA-957D MAIN PARTS LIST Main panel Top support panel Left side panel Big shelf panel Left back panel Lower panel Middle side panel Right support panel Right side panel Drawer side panel Right back board Door panel Drawer front panel... - Page 4 RTA-957D MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF INCLUDED HARDWARE PART ITEM PART ITEM Bolt Fixed Hinge Wooden dowel M4x50 M6x30 M3.5x12 Nail 10x10 Grommet Cam lock (Cable management) Glide (foot) Slider Articulated Self-adhesive Hinge sticker TOOLS THAT ARE REQUIRED (But not included)
- Page 5 RTA-957D ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
- Page 6 RTA-957D ❼ BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 7: Assembly Steps
RTA-957D ASSEMBLY STEPS STEP 1 Install the dowels H into the indicated holes on panels 2, 3, 4, 6, 7, 8, 9 Hardware: and 12. M6x30 Dowel Tools required (But not included) - Page 8 RTA-957D Install the bolts A into the indicated holes on panels 1, 4, 13, and 15. STEP 2 Hardware: Bolt Tools required (But not included) STEP 3 Attach the hinges F to the door 11 with screws C. Hardware: M3.5x12...
- Page 9 RTA-957D STEP 4 Attach the plastic glides E to the bottom of the panels 3, 6 and 9 with Hardware: nails I. (Top) Nail Tools required (But not included) (Top) (Top) STEP 5 • Grab the sliders K and extend them completely towards the RIGHT.
- Page 10 RTA-957D STEP 6 Important notes for this step: Hardware: 1. Both panels 12 are exactly the same, however, one will be used as RIGHT side and the other as LEFT side. 2. All the pieces of sliders K-1 and K-2 have a front end that will need M3.5x12...
- Page 11 RTA-957D P.10 P.10 STEP 7 With the help of another person: Requires • Join the top support panel 2 and the left side panel 3 to the main of 2 panel 1. persons • Insert the cam locks D on panels 2 and 3 and turn them to lock the Hardware: pieces as shown and as explained in page 4.
- Page 12 RTA-957D P.11 P.11 STEP 9 • Attach the grommet J to the left back panel 5. Hardware: • Assemble panel 5 to the left side panel 3 with screws B as shown. M4x50 Tools required (But not included) STEP 10...
- Page 13 RTA-957D P.12 P.12 STEP 11 Secure the middle side panel 6 to the left back panel 5 with screws B. Hardware: M4x50 Tools required (But not included) STEP 12 Assemble the support panel 7 and the lower panel 8 to the middle side Hardware: panel 6 with screws B as shown.
- Page 14 RTA-957D P.13 P.13 STEP 13 Assemble the right side panel 9 to the main panel 1 with cam locks D as shown and as explained in page 4. Hardware: Cam lock Tools required (But not included) Cam locks alignment on 9 STEP 14 Secure the panel 9 to panels 4, 7 and 8 with screws B as shown.
- Page 15 RTA-957D P.14 P.14 STEP 15 • With the help of another person, bring the unit upright. Requires • One person places and holds the right back panel 10 centered over of 2 the back of the cabinet, while the other person secures it with a...
- Page 16 RTA-957D P.15 P.15 STEP 16 • Slide the hinge G under the hinge F (from the door 11) to join both Requires pieces, and secure them with the screw from G. of 2 • With the help of another person, attach the hinges to panel 9 with persons screws C.
- Page 17 RTA-957D P.16 P.16 STEP 18 Important notes for this step: Hardware: For the drawer, you will use both panels 12, but one will go as the RIGHT side and the other as the LEFT side, so make sure that the...
- Page 18 RTA-957D P.17 P.17 STEP 20 • Slide the drawer bottom board 4 through the grooves of panels 12 Hardware: and into the groove of panel 13. • Secure the bottom board 14 at the back with at least 2 nails L.
- Page 19 RTA-957D P.18 P.18 ALL DONE! Give yourself a nice pat on the back, you did a great job! Enjoy your new unit.
- Page 20 RTA-957D P.19 P.19 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 55 Lbs. (25 Kg) 16 Lbs. 6 Lbs. (7.3 Kg) (2.7 Kg) 10 Lbs. (4.5 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
- Page 21 P.20 RTA-957D P.20 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 22 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
