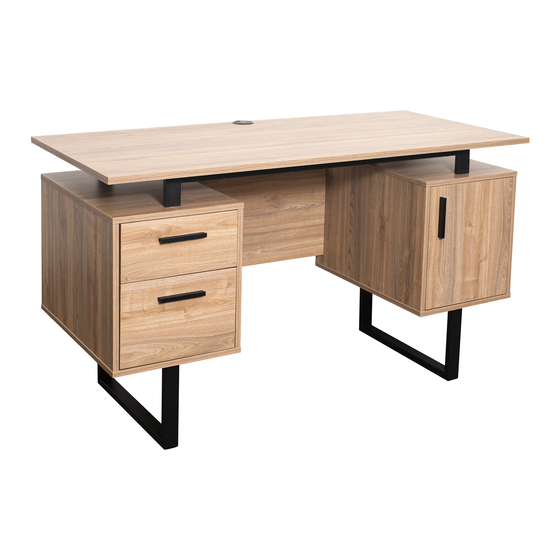

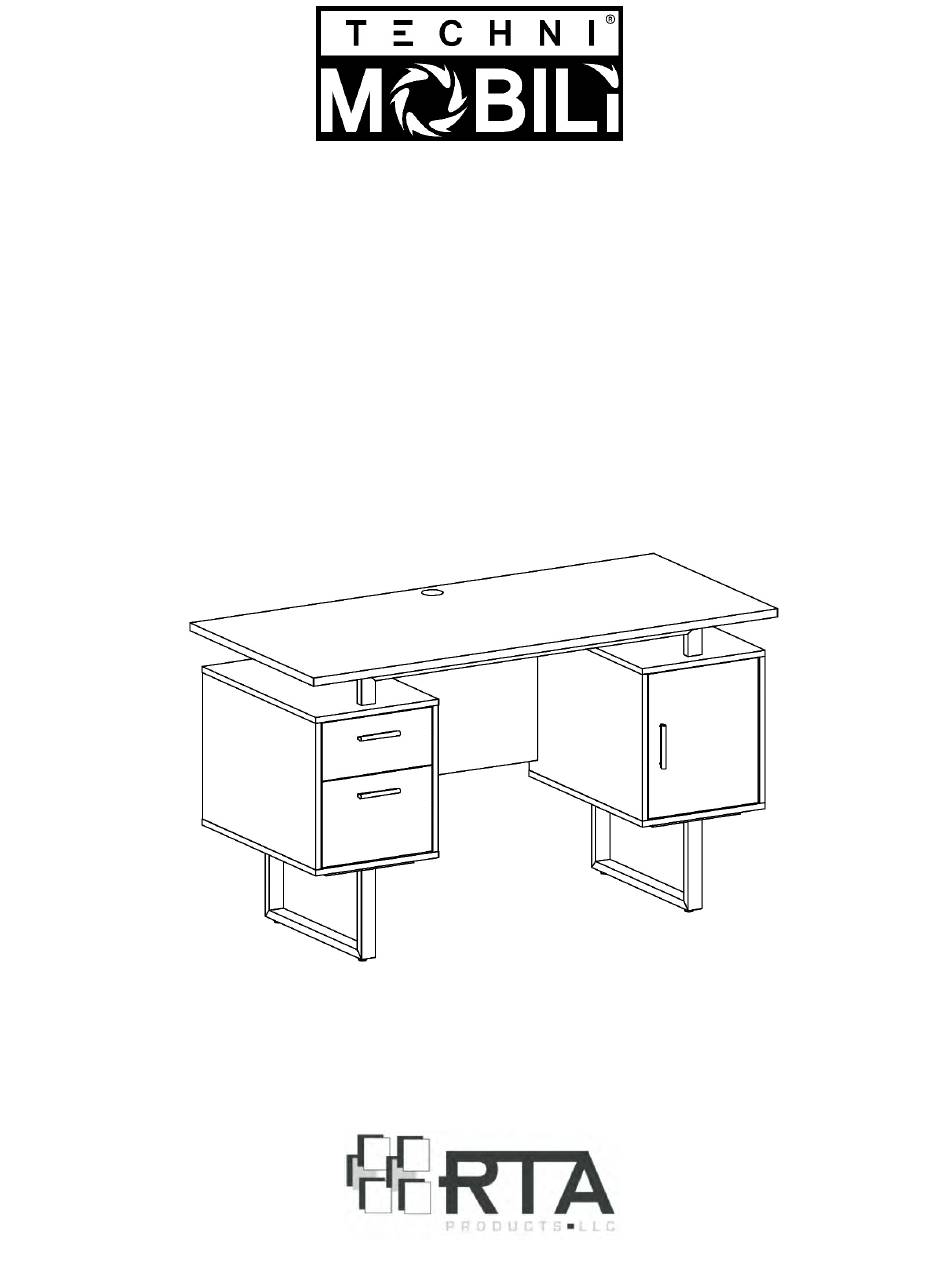

- Page 1 MODEL RTA-7002 ASSEMBLY INSTRUCTIONS Thank you for purchasing one of our products. Please read carefully the assembly instructions before the installation. Do not discard this manual or any of the packaging material until the unit has been completely assembled Imported By...
-
Page 2: Main Parts List
RTA-7002 MAIN PARTS LIST Main panel Back panel Cabinet Top panel Cabinet bottom Left panel Middle-Left panel Middle-Right panel panel Right panel Cabinet back panel Small drawer front Small drawer left panel panel Small drawer right Small drawer back Large drawer front... -
Page 3: Screws List
RTA-7002 MAIN PARTS LIST Legs Support tube for main panel Support tube for cabinet Cable management Drawer sliders, SET of 4 pcs: Hinge (Grommet) - 2 “flat” for inside the cabinets (CL, CR). - 2 “L shaped” for the drawers (DL, DR). - Page 4 RTA-7002 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do a quick inventory to make sure the product contains all the parts and hardware. • Missing, damaged and defective parts can be replaced at no cost to you. Please refer to the CONTACT card included with the product.
-
Page 5: Assembly Steps
RTA-7002 ASSEMBLY STEPS Separate the sliders (24) according to their shapes: STEP 1 The “L” shaped sliders for drawer (DL, DR) will be used until step 6, please set them aside. The flat sliders for cabinet (CL, CR) are the ones being used in step 2. - Page 6 RTA-7002 STEP 4 First insert the bolts (A) and the wooden pins (B) into the corresponding holes on panel (4), then install and align the cam locks (A) into panels (5), (6) and (9), then assemble panel (4) Screws: as shown and as explained in page 4.
- Page 7 RTA-7002 Insert the studs (27) into the legs (20) as shown. STEP 7 STEP 8 Assemble the support tubes (22) to the legs (20) using screws (E) as shown. Screws: M6x35mm Assemble the bars (22) from each leg to each panel (4) on both cabinets using screws (F) STEP 9 as shown.
- Page 8 RTA-7002 First insert the nuts (L) into the panel (2) and make sure they are aligned to receive the STEP 10 screws. Then assemble both cabinets to panel (2) using screws (C). Finally, assemble the Screws: metal plate (K) to panel (7) using screws (J) as shown.
- Page 9 RTA-7002 Assemble the support bars (21) to Assemble the support bars (21) to STEP 12 STEP 13 the tabletop (1) using screws (D) the top panels (3) using screws Screws: Screws: as shown. (E) as shown. M6x35mm M6x40mm Note the hole for grommet...
- Page 10 P.10 RTA-7002 P.10 STEP 16 First attach the bolts (A) to the panels (10) and (14). Then install the cam locks (A) into panels (11), (12), (15) and (16). Then, and as explained in page 4, assemble the front Screws: panel (10) to panels (11) and (12), and the front panel (14) to panels (15) and (16).
- Page 11 P.11 RTA-7002 P.11 1st: Insert the drawers into the cabinet, the bottom drawer first, then the top drawer. STEP 18 The top drawer might need to be inserted at an angle with its front facing down. Screws: 2nd: Assemble the handle (26) to the door (19) using screws (H).
- Page 12 P.12 RTA-7002 P.12 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 110 Lbs. (49.9 Kg) 10 Lbs. (4.53 Kg) 33Lbs. (15 Kg) 15 Lbs. (6.8 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
