■Connect to Power
Connect the AC POWER SYSTEM sold separately.
 When removing the DC cable or AC cable, make sure the power to the Q-HUB main unit and the
AC power system is OFF. Turn the power to the Q-HUB main unit OFF before turning the AC
power system switch OFF.
 Do not open the cover to the AC power system. The areas generating high voltage are
dangerous.
 Make sure to ground the unit. If not grounded, there is a risk of shock.
 If plugging a 3P-2P conversion plug or such into an outlet, make sure to use a grounding wire.
 Do not use an AC power system for the Q-HUB that is not manufactured by our company.
 See (A 7-2) if using a Q-HUB battery pack.
(00419)D
１
Turn the POWER switch OFF.
 Turn the power switch for the AC power system OFF.
２

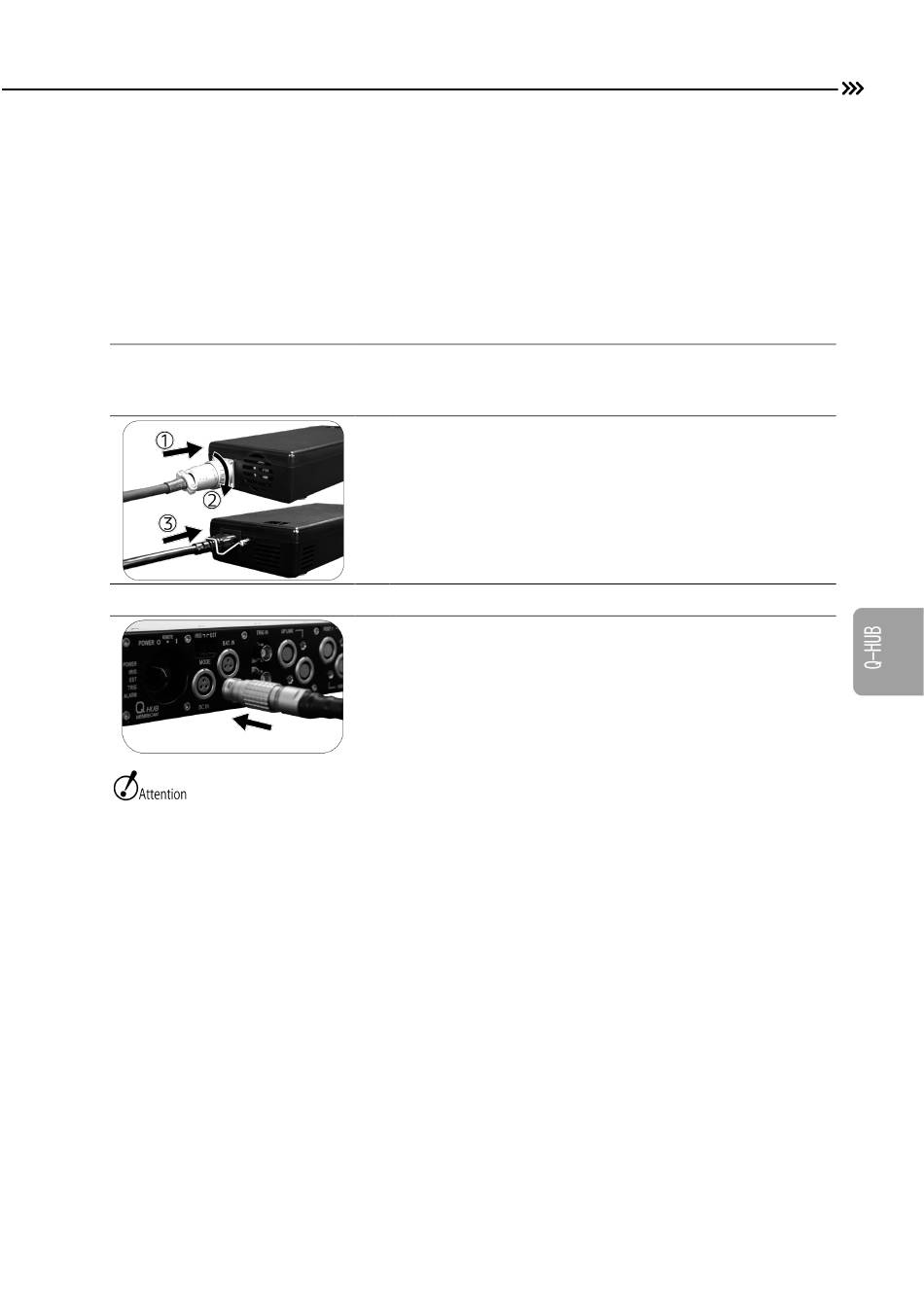

A Connect the cable to the AC power system
 Align the shape of the DC cable plug with the DC connector and
push straight in (①). Turn the cable plug in the direction of the
arrow (②) to lock the cable.
 Insert the AC cable into the AC connector (③).
３
Plug the AC cable into an outlet.
４
Connect the DC cable to the Q-HUB
 Line up the DC IN connector on the Q-HUB with the red mark on
the DC cable plug and insert until it clicks.
 When removing the DC cable from the Q-HUB, firmly grasp the
plug and pull straight out.
6-11
Connect the Equipment and Cables
（A 6-8）
