- Page 1 创造现实，成就梦想 HALOT-MAX Create reality，achieve dreams HALOT-MAX 3D Printer User Manual 3D打印机用户使用手册 V2.0...
- Page 3 随机使用说明： 您可以在U盘内找到相关使用说明及视频。 您还可以登陆创想三维官网(www.cxsw3d.com)寻找相关软硬件、 联系方式、 设备操作、 设备保养等信息。 Firmware Upgrade Please login the official website https://www.creality.com/download, switch the language and select the relevant printer and model and download the required firmware, you can use it after the installation is finished. 固件升级 请您登录官网https://www.cxsw3d.com， 切换语言选择相关机型与型号， 下载所需固件， 安装完成后即可使用。...
- Page 4 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any circustance.
-
Page 5: Table Of Contents
Contents 目录 Introduction 设备简介 02-02 Parameters 设备参数 03-03 Parts List 零部件清单 04-04 Interface Information 界面信息 05-06 Level Platform 调平平台 07-08 09-09 Load Resin 装料 Release Film Instructions 离型膜安装说明 10-10 11-14 Start Printing 首次打印 15-16 Control remote printing 远程控制打印 17-17 Wiring Connection电路接线 Troubleshooting 故障检修... -
Page 6: Introduction 设备简介

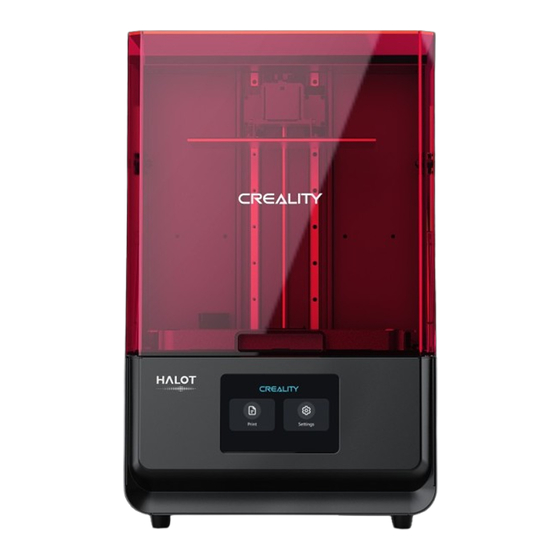

1. Introduction 设备简介 USB port Vat thumb screw Thumb screw USB接口 手拧螺丝 手拧螺丝 Power socket Leveling screw Resin vat 调平螺钉 电源接口 料盘 Buliding platform Touch screen 成型平台 显示屏... -
Page 7: Parameters 设备参数
32.5 KG 51.2 KG Gross Weight | 毛重 Print Method | 打印方式 USB Disk, Creality Cloud | U盘，创想云 Machine Language | 设备语言 中文(简/繁)/ English/ Español/ Deutsche/ Français/ Pусский/ Português/ Italiano/ Türk/Nederlands/Polskie/日本語/한국어 Slicing Software Operation System Win7/Win8/Win 10 64bit, Mac system(32-bit is not supported) | Windows7以上64位操作系统、Mac系统 （不支持32位）? 切片软件操作系统... -
Page 8: Parts List 零部件清单
3. Package Content 零件清单 Resin vat | 料盘 x 1 3D printer | 打印机 x 1 Print platform | 打印平台 x 1 Tool list 工具包清单 U disk x 1 Screwdrivers x 1set Brush x 1 Plastic blade x 1 U盘 螺丝刀工具包... -
Page 9: Interface Information 界面信息
4. Interface Information 界面信息 Print 打印 Note:The interface of Checking and Setting the Printing Parameters is only for reference and shall be subject to UI. 注意： 查看设置打印参数界面仅供参考， 实际以UI为准。... - Page 10 5. Interface Information 界面信息 Settings 设置 Note: The interface of Checking Whether the Light Source Works Well is only for reference and shall be subject to UI. 注意：检查光源是否正常界面仅供参考，实际以UI为准。...
-
Page 11: Level Platform 调平平台
6. Level Platform 调平平台 Note: The printing platform has been leveled at the factory. If it needs leveling due to transportation or other reasons, please follow the steps below to adjust the printing platform. 注意： 打印平台出厂时已调平， 若因运输或其他原因需要调平， 可以进行以下步骤进行打印平台调平。 1. First raise the platform, then loosen 2. - Page 12 7. Level Platform 2 调平平台 2 Note: The UI information is only for reference, the actual UI may be different. 注意： 界面仅供参考， 实际以UI为准。...
-
Page 13: Load Resin 装料
8. Load Resin 装料 Pour the UV photosensitive resin into the resin vat. The slot capacity is 1000ml. 将3D打印机 UV 光敏树脂倒入料盘， 槽位容量： 1000ml。 1000ml Tips： How to change resin: Caution ： Resin may cause skin irritation or an allergic Take out the resin vat slowly, pour out the remaining resin into a container, clean the resin skin reaction. -
Page 14: Release Film Instructions 离型膜安装说明
9. Release Film Instructions 离型膜安装说明 Installation steps 安装步骤 First, remove the 20 screws at the bottom of the vat and take down the old release film. 首先拆卸料槽底部的20颗螺丝,取出坏的离型膜。 Parameters 规格参数 Prepare the new release film, peel off the the protective films on both sides of the release film. -
Page 15: Start Printing 首次打印
3. Click icon ①→Setting slice printing parameters②→ wait for slice to be finished→save the sliced file （Please refer to the official website www.creality.com for more details of slicing tutoria). Note: The UI interface is for reference only, and shall be subject to the actual UI may be different. - Page 16 11. Start Printing 首次打印 ① ① 1. 切片 ② ② ctb(.ctb) ctb(.ctb) 1. 打开LCD光固化3d打印切片软件， 界面左方点击 “打开” 添加模型文件； 2. 根据模型如需添加支架， 点击左上方图标， 设置相应参数； ① ② 3. 点击图标①→ 设置切片打印参数② 4. 等待完成切片后→另存切片好的文件。 → 点击切片； （*切片教程详见官网切片视频www.cxsw3d.com) Note: The UI interface is for reference only, and shall be subject to the actual UI may be different. 注意：...
- Page 17 12. Start Printing 首次打印 ctb(.ctb) 3D objects 2. Print file name Save type Hide Folder preservation cancel USB port 2.Insert U disk→ Select a file→ Press “Start” 1. Generate cxdlp file and save the file to U disk 2. 打印 U盘接口...
- Page 18 13. Start Printing 首次打印 fi fi 3. Printing··· “ ” ; 剩余时长 1. 选择文件; 2. 选中需要打印的文件， 按下开始键; 3. 正在打印中··· Note: The UI information is only for reference, the actual UI may be different. 注意： 界面仅供参考， 实际以UI为准。机器默认存储当前打印文件...
-
Page 19: Control Remote Printing 远程控制打印
>> >> >> >> 1.Download 2.Register 3.Log in 4. Add equipment 5. Scan QR Code Machine interface settings→ Device binding→ QR code HALOT-MAX >> >> >> HALOT-MAX 6. Device naming 7. Select device 8. check printing status 9. Print Progress... - Page 20 15. Control remote printing 远程控制打印 >> >> >> >> 1.下载 2.注册 3.登录 4.新增设备 5.扫一扫 （机器界面设置→设备绑定→二维码） HALOT-MAX >> >> >> HALOT-MAX 6.设备命名 7.选择设备 8.查看打印状态 9.打印进度...
-
Page 21: Wiring Connection电路接线
16.Wiring Connection电路接线 Exhaust fan Z motor driver port UL LED fan port Power Supply port UV LED POWER EN port 排废气风扇接口 Z轴电机驱动接口 灯板散热风扇接口 直流电源输入接口 灯板电源使能 Z ends top Z轴限位开关 USB HOST port 接U盘打印接口 HDMI port HDMI接口 Firmware interface of spare brush 备用刷固件接口... -
Page 22: Troubleshooting 故障检修
17.Troubleshooting... - Page 23 18. 故障检修 储...
- Page 24 因每款机型不同，实物与图可能有所差异，请以实物为准，最终解释归深圳市创想三维科技股份有限公司所有。 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. Add:18F,JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen, China 518131 Official Website: www.creality.com Tel：+86 755-8523 4565 E-mail: info@creality.com cs@creality.com 深 圳 市 创 想 三 维 科 技 股 份 有 限 公 司...
