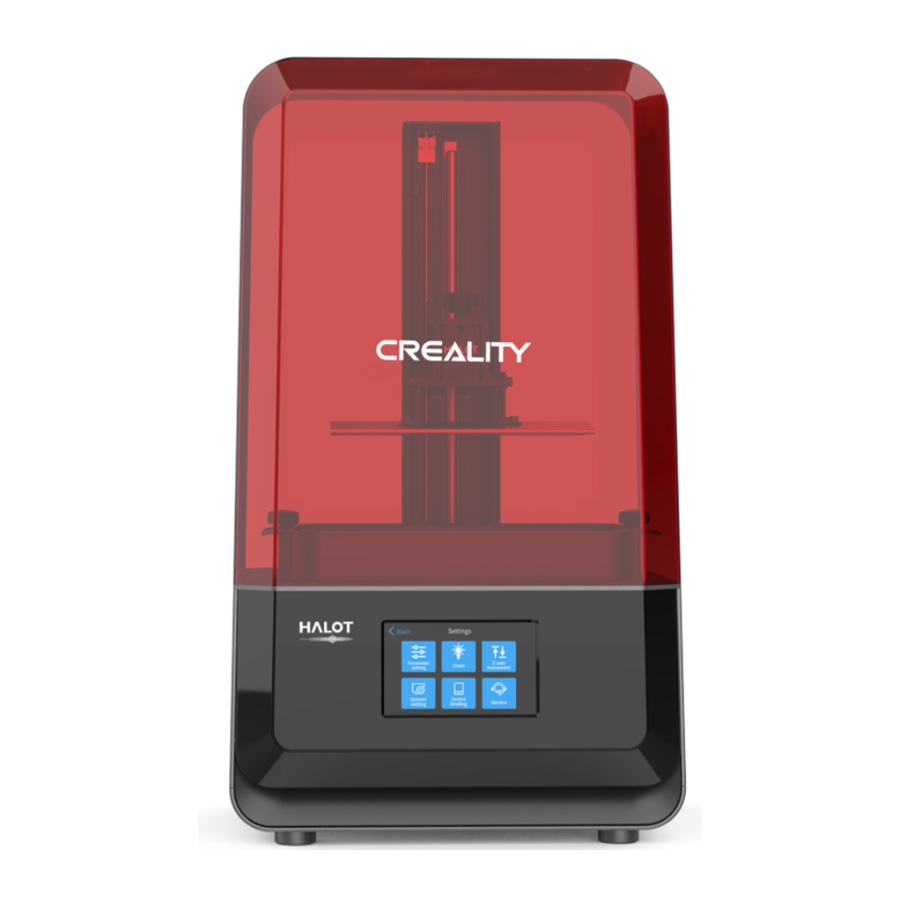

Creality HALOT-LITE - 3D Printer Manual

Introduction

1. Protective cover
2. Limit switch
3. Hexalobular socket screw
4. Leveling screw
5. Buliding platform
6. Hexalobular socket screw
7. Resin vat
8. Touch screen
9. USB port
10. Power socket

Equipment parameters

Package Content

Interface Information

Print

Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware UI as the standard.

Setting

Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware UI as the standard.

Level Platform

Note: The printing platform has been leveled at the factory. If it needs leveling due to transportation or other reasons, please follow the steps below to adjust the printing platform.

1. To calibrate the printing platform, first raise the platform, loosen the fixing screws on the left and right sides of the material trough, and take out the material trough;

2. Loosen the four Leveling screw of the prototyping platform, attach Calibration card tightly to the print screen, press Settings → Z Axis Motion → Levelling(Refer to operating steps of levelling platform 2 for operation.), to check whether the platform fits evenly with the paper.

3. After confirming that Calibration card fits evenly with the platform, screw up the four screws of the platform.


Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware UI as the standard.

Load Resin

Pour the UV photosensitive resin into the resin vat. The slot capacity is 500ml/1000ml.

Tips: How to change resin: Take out the resin vat slowly, pour out the remaining resin into the container, clean the resin vat, pour in new resin, and then install the resin vat to the machine.

Resin may cause skin irritation or an allergic skin reaction. Please wear gloves before use to avoid direct contact with the skin.

Release Film Instructions

Installation steps

Parameters
190(Sizemm*266mm)


0.15-0.2(Thicknessmm)



95%(Light Transmittance )

1. First, remove the 14 screws at the bottom of the vat and take down the old release film.

2. Prepare the new release film, peel off the the protective films on both sides of the release film. Align the holes and fit the release film on the clamping ring.

3. Finally, place the film-ring assembly back into the vat frame gently, then intall and tighten the fixing screws diagonally.

4. The installed release film is as shown.


Start Printing

1. Slicer

   1. Open the slier software of CLD 3D printer, click "open" on the left of the screen and add model file. "

   2. If the model needs to add support, click the upper left icon to set corresponding parameters.

   3. Click icon ①→Setting slice printing parameters②→Click "Slice"

   4. waiting for slice to be finished - save the sliced file. You are welcome to find more details of slicing tutorial on the official website www.creality.com).

2. Print
   1. Generate cxdlp file, and save the file to U disk.
   2. Insert the U disk → press the print button.

      During the printing process, the machine can not be shaken, so as not to affect the printing quality.

1. Select Files

2. Select the file to be printed and press "Start"

3. Printing...


Control remote printing

1. Download

2. Register

3. Log in

4. Add equipment

5. Scan QR Code

6. Device naming

7. Select device

8. check printing status

9. Print Progress


Wiring Connection

Troubleshooting

NOTES

1. Do not use the printer any way other than described here in order to avoid personal injury or property damage.
2. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment.
3. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
4. Please use recommended resin to in case damage of machine.
5. Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.
6. Please do not open the plastic cover during usage, otherwise the printing will be interrupted.
7. Do not wear cotton gloves when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns, possible bodily injury, or printer damage.
8. Please wait a moment after the print is finished. And please wear gloves to take out the print by tools.
9. guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface. Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics or any other material off the frame,
10. Children under 10 years should not use the printer without supervision.
11. Tips: Do not plug or unplug the power cord when power on.
12. Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any circustance.

Official Website: www.creality.com

Tel: +86 755-8523 4565

E-mail: info@creality.com
cs@creality.com
