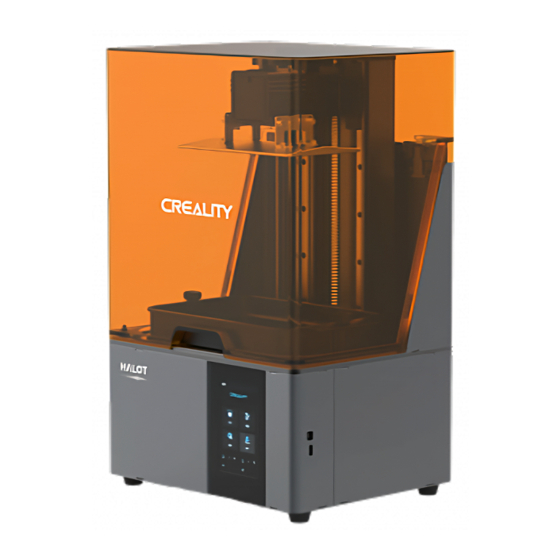

- Page 1 HALOT-SKY CREATE REALITY，ACHIEVE DREAMS HALOT-SKY 3D Printer User Manual V1.1...
- Page 2 Visit our official website www.creality.com to find relevant software/hardware information,contact details and operation and maintenance instructions. Firmware Upgrade Please login the official website https://www.creality.com/download, switch the language and select the relevant printer and model and download the required firmware, you can use it after the installation is finished.
- Page 3 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any circustance.
-
Page 4: Table Of Contents
Contents Introduction 01-01 02-02 Parameters Parts List 03-03 04-04 Assemble the 3D Printer Use the 3D Printer 05-11 Start Printing 12-14 15-15 Control remote printing Wiring Connection 16-16 Troubleshooting 17-17 18-20 LCD 3D PRINTING FILAMENTS Warranty Card 21-22... -
Page 5: Introduction
1. Introduction Limit switch Air filter USB port Hexalobular socket screw Power socket Hexalobular socket screw Resin vat Leveling screw Touch screen Buliding platform... -
Page 6: Parameters
450*390*705mm Net Weight 16.5KG Gross Weight 22.45KG Print Method USB Disk, Creality Cloud Machine Language 中文(简/繁)/ English/ Español/ Deutsche/ Français/ Pусский/ Português/ Italiano/ Türk/Nederlands/Polskie/日本語/한국어 Slicing Software Operation System Win7/Win8/Win 10 64bit, Mac system (32-bit is not supported) Compatible Resin Common rigid photosensivie resin, Standard resin, Hight hardness,Compatible Resin High toughness, Dental model resin. -
Page 7: Parts List
3. Package Content Resin vat x 1 3D printer x 1 Print platform x 1 Tool list U disk x 1 Screwdrivers x 1set Brush x 1 Plastic blade x 1 Resin filter x 4 Release film x 1 Metal blade x 1 Power cord x 1 Vat cover x 1 Calibration card x 1... -
Page 8: Assemble The 3D Printer
4. Assemble the 3D Printer 2.Place the acrylic protective cover 3.Note here that the iron piece is inserted from the slot of the lower part 1.Remove the screws Machine body x 1 4.Lock the screws Plastic cover x 1... -
Page 9: Use The 3D Printer
5. Interface Information Setting Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware UI as the standard. - Page 10 5. Interface Information Setting Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware UI as the standard.
- Page 12 6. Level Platform 1. First raise the platform, then loosen rubber screws on the left 2. Place the calibracation card on the printing screen， go “ Tools → Manual → Home”with the touch screen, and check whether the platform sticks into thecalibration and right sides of the resin vat, and take out the resin vat.
- Page 13 6. Level Platform Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware UI as the standard.
- Page 14 7. Load Resin Pour the UV photosensitive resin into the resin vat. The slot capacity is 500ml/1000ml. 1000ml 500ml Tips： How to change resin: Caution ： Resin may cause skin irritation or an allergic Take out the resin vat slowly, pour out the remaining resin into the container, clean the resin skin reaction.
- Page 15 8. Release Film Instructions Installation steps First, remove the 14 screws at the bottom of the vat and take down the old release film. Parameters Prepare the new release film, peel off the the protective films on both sides of the release film. Align the holes and fit the release film on the clamping ring.
-
Page 16: Start Printing
3. Click icon ①→Setting slice printing parameters②→ wait for slice to be finished→save the sliced file （Please refer to the official website www.creality.com for more details of slicing tutoria). Note: The UI interface is for reference only, and shall be subject to the actual UI may be different. - Page 17 9. Start Printing ctb(.ctb) 3D objects 2. Print file name Save type preservation cancel Hide Folder USB port 1. Generate cxdlp file and save the file to U disk 2. Insert the USB disk → Press the print button. Note: The UIinterface is for reference only,and shall be subject to the U disk Warning: Please don't insert or remove during printing.
- Page 18 9. Start Printing fi fi “ . ” 3. Printing.
-
Page 19: Control Remote Printing
10. Control remote printing >> >> >> 1.Download 2.Register 3.Log in 4. Scan QR Code >> >> >> 5. Add equipment 6. Select device 7. check printing status 8.Print Progress... -
Page 20: Wiring Connection
11.Wiring Connection Exhaust fan Z motor driver port UL LED fan port Power Supply port UV LED POWER EN port Z ends top USB HOST port LCD resin panel USB OTG port RGB screen port... -
Page 21: Troubleshooting
12.Troubleshooting... -
Page 22: Lcd 3D Printing Filaments
13. FDM 3D PRINTING FILAMENTS FDM 3D PRINTING FILAMENTS Upgraded environmentally friendly Targeting at mid-end users, CR series is with HC series is cost-efficient. It’ s widely Ender series is widely applied to general formula, matte effect, high toughness, transparent tray plus black-white color box applicable to general FDM printer product FDM printer design, which meet customers' and fine printing. - Page 23 20. UV sensitive resin parameter information Water Dental Jewelry Related High Temperature Standard Resin ABS Like Resin Dental Cast Resin Elastic Resin Toughness Resin Washable Resin Mode Resin Cast Resin Parameters Resin 150-250MPa·s 200-350MPa·s 50-170MPa·s 300-1000MPa·s 100-350MPa·s 150-300MPa·s 150-300MPa·s 150-300MPa·s 100-150MPa·s Viscosity (NDJ-8S Rotational...
- Page 24 Suitable for 99% FDM models CR-PLA 190-220 50-60 Suitable for 99% FDM models HC/EN-PLA 190-220 50-60 Hot bed is needed, and Creality printer enclosure 220-260 90-110 is recommended for DIY machine Hot bed is needed, and Creality printer enclosure PETG 230-250 60-100...
-
Page 25: Warranty Card
Please read the user manual and warranty card carefully before the use. For any service, Please priorly contact local seller or contact us via Email: cs@creality.com for support. See www.creality.com/after-service-policy/ for specific warranty information about your product and procedures to act on a warranty claim. - Page 27 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. Add:18F,JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen, China 518131 Official Website: www.creality.com Tel：+86 755-8523 4565 E-mail: info@creality.com cs@creality.com...
