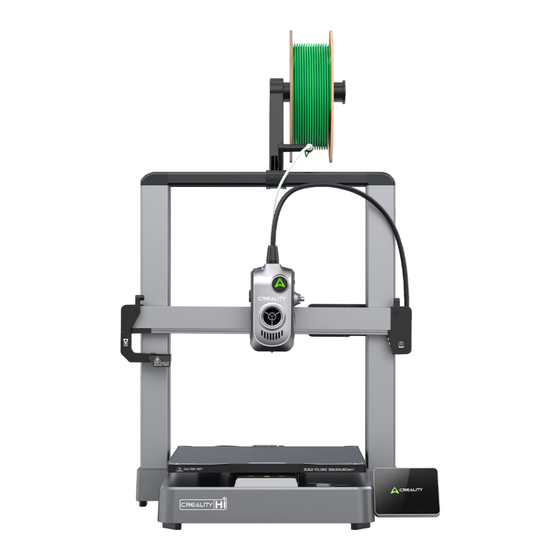

Creality Hi & Creality Hi Comb User Manual
r l i t y i n o x i o
https://www.crealitycloud.com/post-detail/677f2b8c06c912fef1158073
r l i t y i o m o n o x i o
https://www.crealitycloud.com/post-detail/677f2c2f06c912fef1158607
Thank you for choosing Creality. For your convenience, please read through this User Manual before you
start and follow the instructions provided carefully.
Creality is always ready to provide you with high-quality services. If you encounter any issues or have any
questions when using our products, please use the contact information at the end of this manual to contact
us. To further improve your user experience, you can find more about our devices via the following
methods:
You can also visit our official website
hardware, contact information, device instructions, device warranty information, and more.
https://wiki.creality.com/en/cr-series/creality-hi/user-manual
Creality Hi & Creality Hi Comb User Manual | Creality Wiki
/
/
creality-hi
user-manual
(https://www.creality.com
��
��
Hello
how can I help you?
��
) to find information regarding software,
��
1/25
