  • Page 1 Create reality，achieve dreams HALOT-MAGE HALOT-MAGE 3D Printer User Manual V1.0...
  • Page 2 For a better experience in using our product, you can also access how to use the printer in the following ways: View the accompanied instructions and videos in the U disk. Visit our official website www.creality.com to find relevant software/hardware information,contact details and operation and maintenance instructions.
  • Page 3 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any.

  • Page 4: Table Of Contents

    Contents Equipment Introduction 01-01 Equipment Parameters 02-02 Parts List 03-03 04-10 Use the 3D Printer Print Method 11-13 Clean the Resin Vat 14-14 15-16 Wiring Connection Troubleshooting 17-17...

  • Page 5: Equipment Introduction

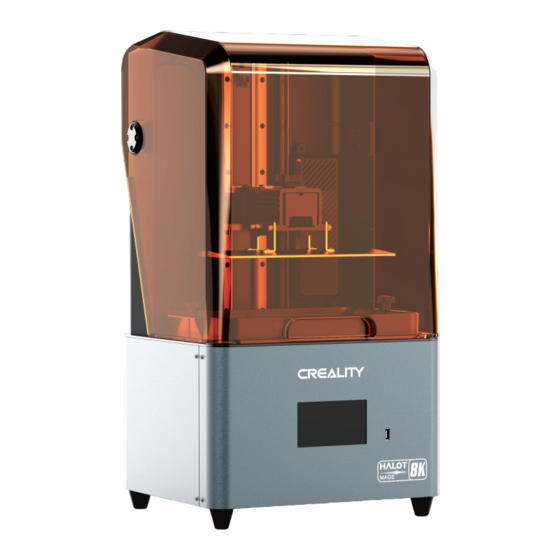

    1. Equipment Introduction Power switch Hexalobular socket screw Leveling screw Power socket Buliding platform Air filter Resin vat Hexalobular socket screw Touch screen USB port 01 01...

  • Page 6: Equipment Parameters

    2. Equipment parameters Basic Parameters Model Name HALOT-MAGE Build Size 228*128*230mm (length*width * height) Screen Resolution 7680*4320 Pixel Size 0.0297mm Print Speed 1-5s/layer Layer Thickness 0.05-0.15mm Print Screen 10.3" print screen Light Source Type 3rd generation LCD integral light source Rated Voltage 100-240V~，50/60Hz...

  • Page 7: Parts List

    3.Parts List Resin vat ×1 3D printer ×1 Print platform ×1 Tool list Paper funnel U disk ×1 Screwdrivers ×1 1set Power cable ×1 Plastic blade ×1 Metal blade ×1 Release film ×1 Calibration card ×1 Vent-pipe x 1 Tips: the above accessories are for reference only lease refer to the physical accessories! 01 03...

  • Page 8: Use The 3D Printer

    4. Interface Information Tools 10mm 0.10mm 1.00mm 10.00mm ① ② ③ ④ ⑤ E-stop: When the platform is in the process of rising or falling, click [E-stop] to forcibly stop the Auto Homing platform from rising or falling (this feature is mainly used to prevent damage to the equipment Down Stop Back...
  • Page 9 4. Interface Information System HALOT-MAGE 004c0026-554d5002-20363643-17f V4.3.17_LCDMI/3840x2400/F2.18 Calibrate Make corrections by clicking on the "+" sign on the screen and then click "OK" to enter the test. Note: If a correction action cannot be performed, please Note: The current interface is for reference only, due to the continuous contact our customer service staff.
  • Page 10 4. Interface Information Print ① ① .ctb ② ② .ctb .ctb ③ ③ .ctb .ctb ④ Refresh file Turn up Turn down Back Delete Print/stop Back Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard.
  • Page 11 5. Leveling Platform 1. Raise the platform, loosen rubber screws on the left 2. Loosen the four screws of the junction 3. After confirming that the calibration and right sides of the resin vat, and take out the resin vat. plate of the forming platform plate, press card fit evenly, lock the four screws of the the calibration card against the print screen...
  • Page 12 5. Leveling Platform 0.10mm 1.00mm 10.00mm 10mm 1. After loosening the leveling screws, press 2. Gently press the platform and tighten 4 screws clockwise, and the platform can be leveled the "Homing" on the touch screen to keep successfully. the platform balanced with the base plate. 0.10mm 1.00mm 10.00mm 10mm...
  • Page 13 6. Load Resin Pour the UV photosensitive resin into the resin vat. The slot capacity is 500ml/1000ml。 500ml 1000ml Caution: Tips: How to change resin? ① Resin may cause skin irritation or an allergic skin reaction. Take out the resin vat slowly, pour out the remaining resin into the container, Please wear gloves before use to avoid direct contact with the skin.
  • Page 14 7. Release Film (FEP) Replacement Parameters Recycle the resin in the resin vat back into the Remove all the screws at the bottom of the resin vat, take original bottle , then clean up. (Note: Please make out the fixing plate and the release film. (Note: The fixing sure there are no residue matter left inside the Vat) plate andthe vat bottom need to be cleaned) Size：...

  • Page 15: Print Method

    ① ① ② ② HALOT-MAGE HALOT-MAGE 1. Open the slicer software of HALOT BOX, click "Open" on the 2. If the model needs to add support, click the upper left icon① top left of the screen and add model file;...
  • Page 16 Save type Hide Folder preservation cancel HALOT-MAGE USB port ① Generate cxdlp fileand save the file to U disk. ② Insert the USB disk Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard.
  • Page 17 8. U盘打印 9. USB Disk Printing . cxdlpv4 .cxdlpv4 . cxdlpv4 . cx dlpv4 ③ Click on "Print" ④ Press “up” or “down” to select files. Eiffel Tower 8s.cxdlpv4 Eiffel Tower 8S.ctb .ctb 00h40m 1h00m 972/2430 ⑥ Printing. ⑤ Select the file to be printed and press “ print” . Note: The current interface is for reference only, due to the continuous upgrading of functions, the actual to the official website of the latest firmware Ul as the standard.

  • Page 18: Clean The Resin Vat

    10. Clean the Resin Vat Please confirm that the printing platform has been removed, and there are moderate consumables in the vat. Please set the exposure time of the test image: 15 s Next *If there is residue in resin vat before printing, please clean resin vat first. The cleaning time is generally set to 15 seconds and then shovel it off with a plastic blade.

  • Page 19: Wiring Connection

    11.Wiring Connection Print screen port Pinboard port Touch screen port Mainboard circuit wiring diagram 01 15...
  • Page 20 11.电路接线 DC 24V input Light panel on right side Light panel on left side Light panel cooling fan Z axis motor Air filtration fan Limit switch Pinboard circuit wiring diagram 01 16...

  • Page 21: Troubleshooting

    12. Troubleshooting 1. Wipe USB disk 2. Format USB disk 3. Replace USB disk Print from USB Disk Is file identified or not Auto homing Move or not Attach to the printing screen tightly Coupling Fasten coupling 01 17...
