DRAWER ADJUSTMENT
TM Frontal Adjustment Guide

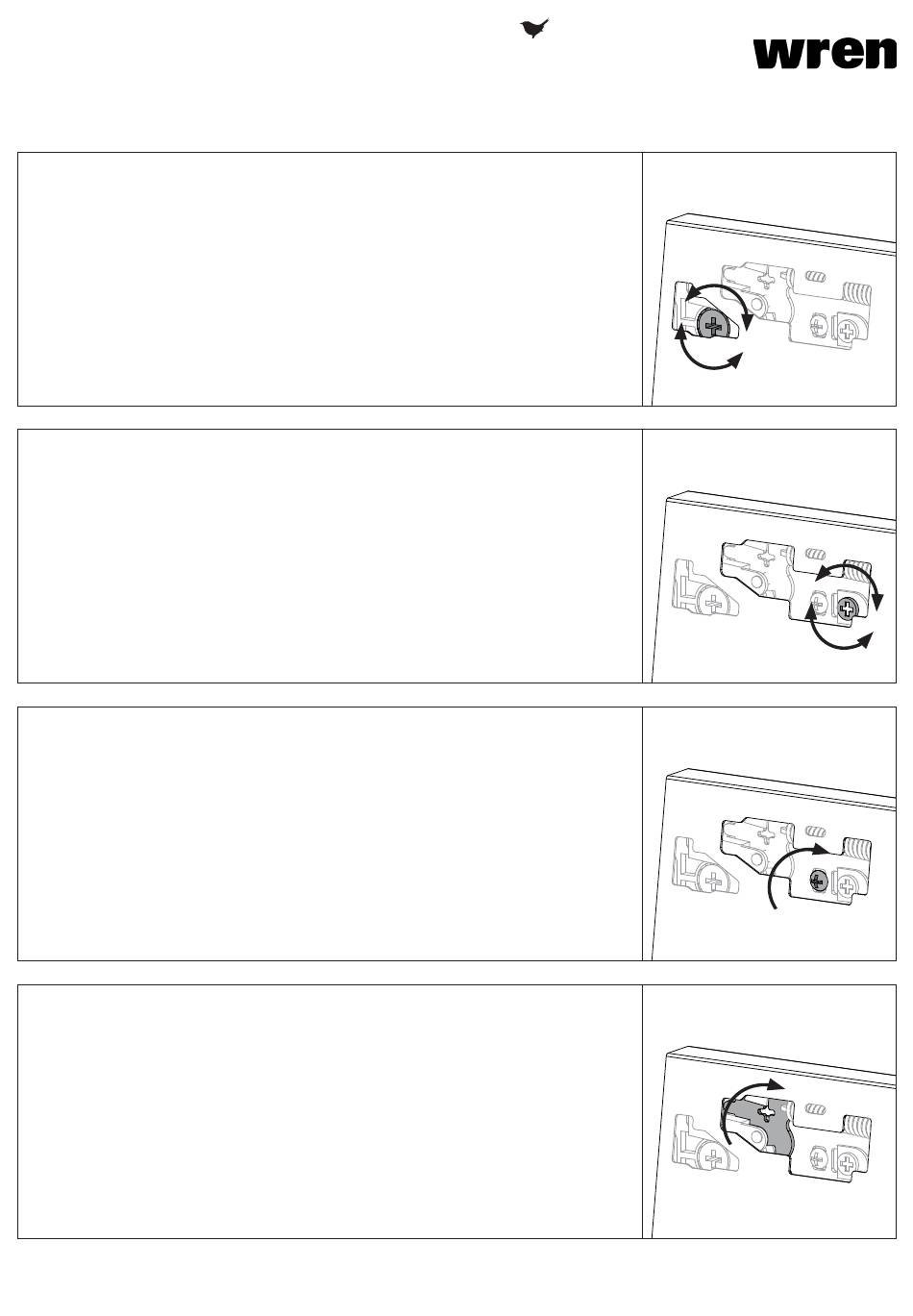

Left and Right Adjustment
Turn the screw shown to adjust the drawer frontal left & right.
Repeat on both sides.
Up & Down Adjustment
Turn the screw shown to adjust the drawer frontal up & down.
Repeat on both sides.
Lock Position
Tighten the screw shown to lock the drawer frontal in position.
Repeat on both sides.
Remove Frontal
To remove the frontal, release the fixing clip by turning the locking plate screw
shown.
Repeat on both sides.
For Internal Use: FI.WR.INS.125_WKIN00217_TMDrw_Adjustment_Guide_Rev2
Page 1
