4: Installation

4.1: Before installation

Connecting the device in a manner inconsistent with this
!
manual can cause risk to health, life or material damage.
• Don't power the device before fully assembling it in the mounting box.
• Connect only in accordance with one of the diagrams.
• Install only in flush mounting boxes compliant with relevant national
safety standards and with depth no less than 60mm.
• Don't connect devices which aren't compliant with the specification or
relevant safety standards.
• Don't connect heating devices.
• Don't connect SELV or PELV circuits.
• Make sure electrical switches used in installation are compliant with
relevant safety standards.
• Make sure length of wires used to connect the control switch should
not exceed 20m,
• Connect roller blind motors with electronic or mechanical limit switches
only.
Notes for the diagrams:
O1 - the 1st output terminal
for the shutter motor
O2 - the 2nd output terminal
for the shutter motor
S1 - the terminal for the 1st switch
(used to add/remove the device)
S2 - the terminal for the 2nd switch
(used to add/remove the device)
N - terminals for the neutral lead (connected internally)
L - terminals for the live lead (connected internally)
PROG - a service button (used to add/remove the device and navigate
the menu)
Proper wiring and wire removal guidelines
!
Place wires ONLY into the terminal slot(s) of the device. To remove
any wires, press the release button, located over the slot(s).
PROG
3×CLICK TO
ADD/REMOVE
Installation:
1. Switch off the mains voltage (disable the fuse).
2. Open the wall switch box.

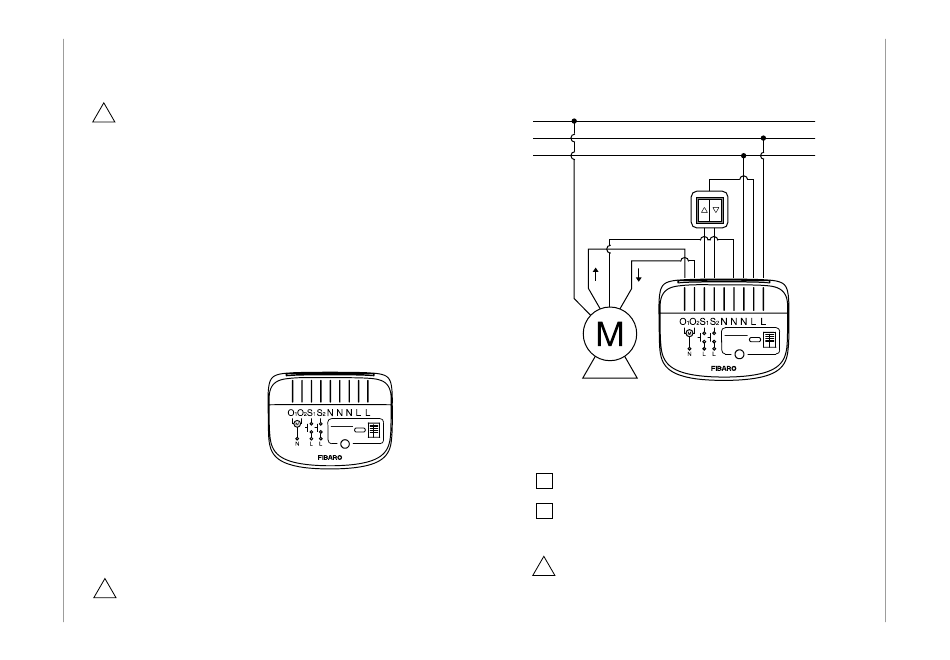

3. Connect following the diagram below:
PE
L
N
N
4. Verify if the device is connected correctly.
5. Arrange the device in a wall switch box.
6. Close the wall switch box.
7. Switch on the mains voltage.
To connect external wall switch(es) use supplied jumper wires if
i
necessary.
If you are using Yubii Home App, you don't have to concern about
i
connecting the directions correctly.
You can change the directions in the the wizard and device settings
in the mobile App.
The supplied jumper wires can only be used to connect wall
!
switches. Use an appropriate installation cable to conduct
the load current of the device. Other components of the
installation (bridging) also needs to be connected with an
appropriate installation cable. If necessary, use a suitable
electrical wires connector.
PROG
3×CLICK TO
ADD/REMOVE
