Page 1: Table Of Contents

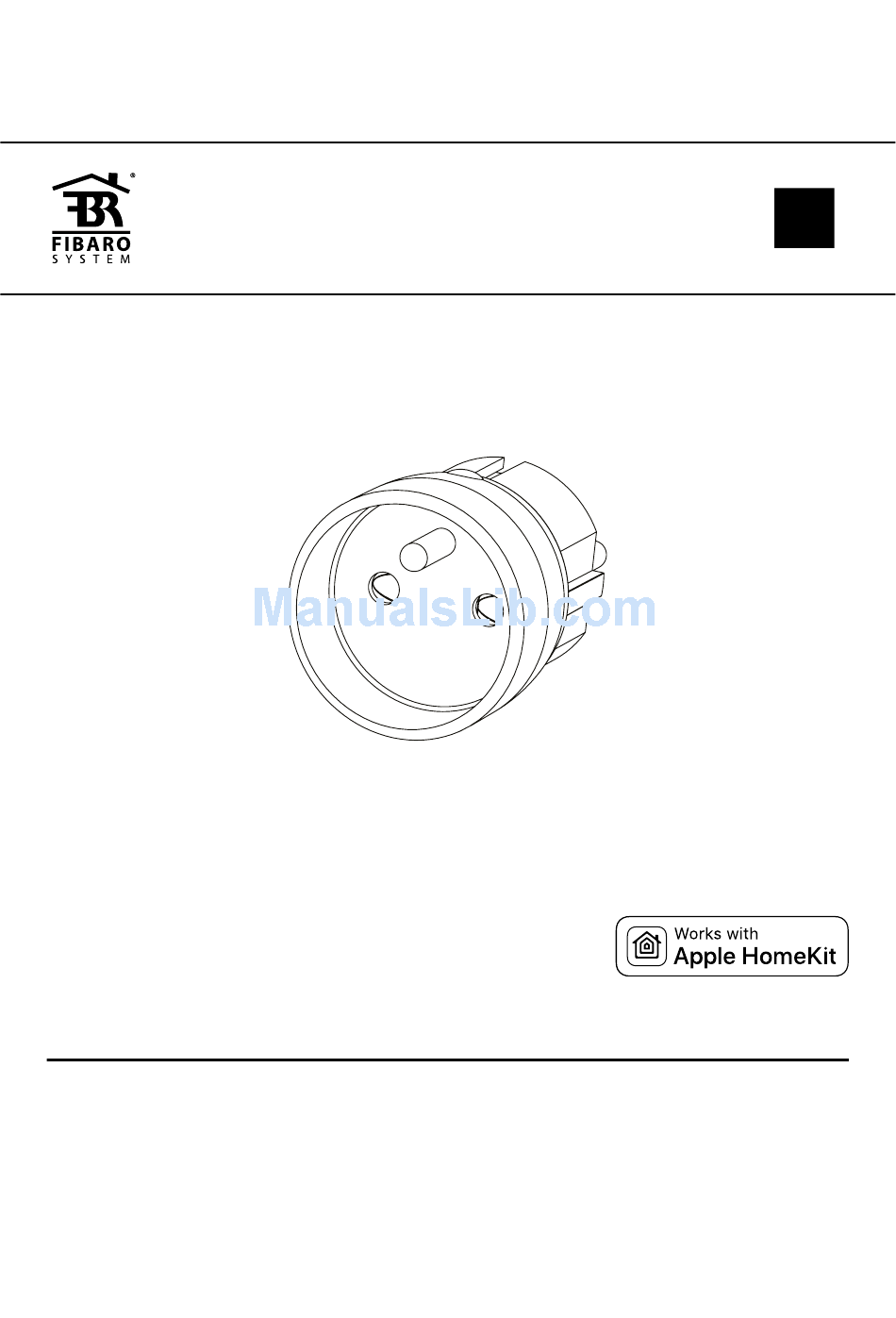

O P E R A T I N G M A N U A L FIBARO WALL PLUG FGBWHWPE-102/FGBWHWPF-102 CONTENTS v1.0 #1: Description and features #5: Wi-Fi #2: Pairing the accessory #6: Configurable parameters #3: Reset #7: Specifications #4: Functionality... - Page 2 HomeKit-enabled accessories using Siri on your iPhone, iPad, or iPod touch. After installing your FIBARO Wall Plug, configure it from a compatible app with just a few simple steps. You can even create your own custom scenes to control your home settings.
-
Page 3: 1: Description And Features
#1: Description and features FIBARO Wall Plug is a HomeKit-enabled smart plug using Wi-Fi® connection and Bluetooth® low energy wireless technology. This remotely controlled outlet adapter is equipped with an active power and energy metering function. it uses a LeD ring to visualize current consumption and status. -
Page 4: 2: Pairing The Accessory
#2: Pairing the accessory 1. Open the Settings app on your iOS device. 2. Go to the Wi-Fi section, turn the Wi-Fi on and connect to your pre- ferred Wi-Fi network. 3. Go to the Bluetooth® section, and turn the Bluetooth® on. 4. -
Page 5: 3: Reset
#3: Reset Resetting the Wall Plug to factory defaults: Reset procedure allows to restore the accessory back to its factory settings including HomeKit pairing. 1. Make sure the accessory is powered. 2. Press and hold the button. Button 3. When the LeD ring glows yellow, release the button. 4. -
Page 6: 4: Functionality
#4: Functionality Turning ON/OFF electrical devices: The Wall Plug can turn On/OFF connected electrical device either through iOS mobile app or button. Multicolor LED ring: The LeD ring of the Wall Plug glows when device is turned On and dis- plays current active power consumption. - Page 7 Overload Control*: NOTE Functionality allows to switch off connected load after 4 seconds * Functionality availa- from exceeding the power set by the user in Fibaro for HomeKit app. ble only in Fibaro for HomeKit app. Power Change Notification*: Minimum and maximum allowed power consumption may be de- fined by the user in Fibaro for HomeKit app.
-
Page 8: 5: Wi-Fi
#5: Wi-Fi Wi-Fi range test: The Wall Plug can measure Wi-Fi signal strength and indicates it with color of LeD ring: • Green – good (≥ -45dBm) • Yellow – fair (≥ -70dBm, < -45dB) • Red – weak (< -70dBm) To start range test: 1. -
Page 9: 6: Configurable Parameters
#6: Configurable parameters 1. Color of LED ring NOTE This parameter allows to choose color of LeD ring when device is On. * Colors depending on Available settings: 0 – color dependent on measured active power* the measured value: 0W - white 1 –... -
Page 10: 7: Specifications
#7: Specifications Power supply: 230V AC, 50 Hz Rated load current: 10A - continuous load Power consumption: up to 2W Power output (for resistive 2300W - continuous load load): To be used with e or - Cee 7/16 - max load 2.5A F type (Schuko) sockets: - Cee 7/17 - max load 10A - Dual type plugs e/F... -
Page 11: 8: Regulations
All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or update its products, software, or documentation without any obligation to no- tify any individual or entity.
