MotionCam User Manual

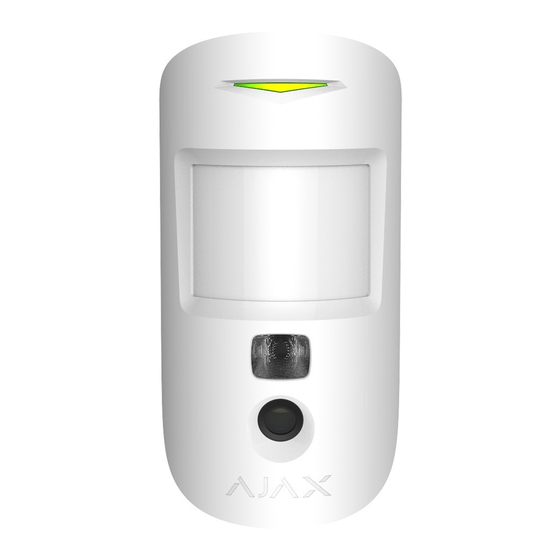

MotionCam

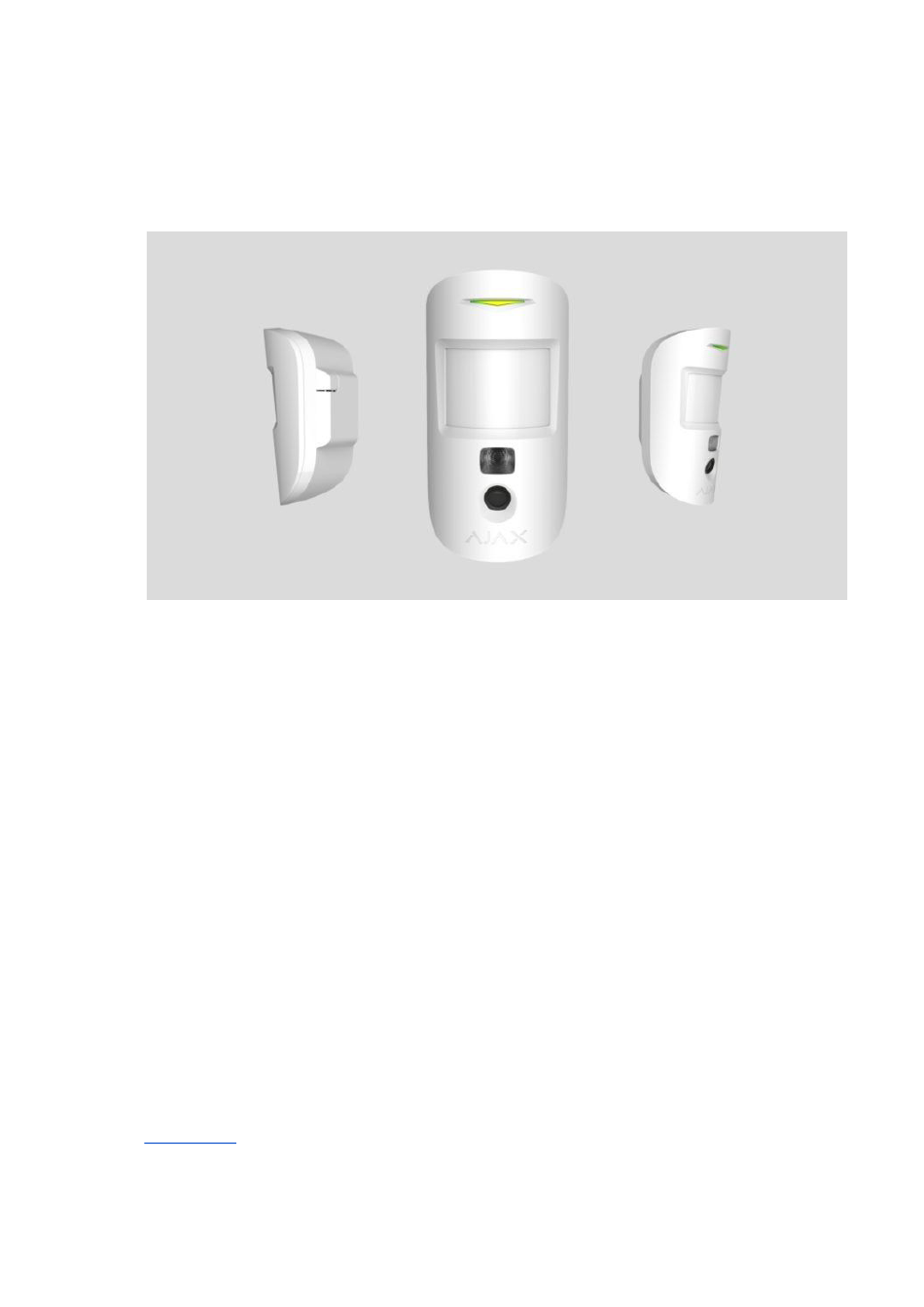

is a wireless motion detector with visual alarm verification for
indoor use. It operates for up to 4 years on bundled batteries, detects
movement at up to 12 meters, ignores animals, but recognizes a human
move instantly. MotionCam works within Ajax security systems, connecting
to a hub through the two secure radio protocols. The detector uses
J eweller
to transmit alarms and events, and Wings to transmit photos. Wireless
coverage may reach up 1,700 m line-of-sight.
The detector is compatible only with Hub 2. Connection to Hub, Hub
Plus, ReX radio signal range extender, ocBridge Plus and uartBridge
integration modules is not supported!
The detector is configured via iOS, Android, macOS, and Windows-based
Ajax apps
. Users are alerted of all alarms and events via push notifications,
SMS, and calls (if enabled).
Advertisement
Table of Contents
Related Manuals for AJAX MotionCam
Summary of Contents for AJAX MotionCam
- Page 1 It operates for up to 4 years on bundled batteries, detects movement at up to 12 meters, ignores animals, but recognizes a human move instantly. MotionCam works within Ajax security systems, connecting to a hub through the two secure radio protocols. The detector uses ...
-
Page 2: Functional Elements
The Ajax security system can be used for self-reliant monitoring, or can be connected to a security company’s central monitoring station. Functional Elements LED indicator Motion detector lens Infrared illumination for shooting in the dark Camera SmartBracket mounting panel (the perforated part is necessary for... -
Page 3: Operating Principle
J eweller to transmit alarms and events to the hub. The built-in MotionCam camera can take from 1 to 5 shots with the resolution of 320×240 and up to 3 shots with the resolution of 640×480 pixels. A series of photos is displayed in the app as an animation, so the user is able to evaluate the unfolding of the event over time. - Page 4 Photo delivery time in the Ajax apps depends on the resolution and the speed of your internet connection. The table shows the delivery time for one photo at a signal strength of 2-3 divisions between the hub and MotionCam and the hub connected via Ethernet.
- Page 5 Please note that only a user with admin permissions can add devices to the hub. To connect the detector: In the Ajax mobile app, tap A dd Device Name the device, scan or enter manually the QR code (placed on the back of the detector body or its packaging), select the room for placement.
- Page 6 MotionCam turns off automatically within 6 seconds after activation if it fails to connect to the hub. There is no need to turn off the device to retry. If the device has already been paired with another hub, turn MotionCam off, and then follow the standard pairing procedure.
- Page 7 Statuses You can view MotionCam status in the detector menu.
- Page 8 Parameter Value Temperature Detector temperature. Measured on the processor and changes gradually...
- Page 9 Jeweller Signal Strength The strength of the signal for transmitting alarms and events between the hub and the detector Battery charge The detector battery charge, displayed in the increments of 25% The status of the detector’s tamper device that responds to the detachment and removal attempts.
- Page 10 Wings Signal Strength The strength of the signal for transmitting photos from the detector to the hub Camera Connection status between the hub and the detector’s camera Sensitivity Sensitivity level of the motion detector Always active If active, the detector is always in the armed mode Firmware Detector firmware version...
- Page 11 Settings You can adjust the device parameters in the settings section:...
- Page 12 Settings Value First field Detector name (editable)
- Page 13 Room The virtual room to which the device can be assigned Sensitivity MotionCam detector has three sensitivity levels: ● High — for rooms with a minimum amount of obstacles; in this mode, the movement is detected as quickly as possible.
- Page 14 Alarms with photo confirmation MotionCam can take photos every time alarm is raised or only while first 1 to 10 activations. The limit is reset once the security system is disarmed Delay when entering, s Selecting delay time when entering.
- Page 15 Delays in Night Mode Activation of the delay when Night mode is enabled What is night mode Arm in Night Mode If active, the detector switches to the armed mode when night mode is enabled What is night mode Alert with a siren if motion is detected H omeSiren...
- Page 16 Opens the detector User Manual Unpair device Unpairs the detector, disconnects it from the hub, and deletes its settings Photo Verification of Alarms in Ajax apps If the S end photo in case of alarm option is enabled in the MotionCam settings, detector alarms will be accompanied by photos or animations in Ajax apps.
- Page 17 To view photos, click on the alert notification in the events feed. To save the photo, click on the appropriate button.
- Page 18 A series of photos is displayed in the app as an animation, so the user is able to evaluate the unfolding of the event over time.
- Page 20 Each frame of a series of photos can be saved individually. The entire series can be saved at once or MP4 video.
- Page 21 Features of alarm photo verification by MotionCam detectors...
- Page 22 Indication The MotionCam LED indicator may turn red or green, depending on the status of the device. Indication when pressing the power button...
- Page 23 Event Indication Turning on Lights up green while the device is turning on Turning off Lights up red, then flashes three times Active detector indication Event Indication Note Connecting the detector Lights up green for a few to the hub seconds Hardware error Flashes red...
-
Page 24: Functionality Testing
Functionality Testing Ajax security systems can run tests to verify the functionality of connected devices. The tests do not start immediately but within 36 s under default settings. The test start delay depends on the detector polling period settings (see Jeweller... - Page 25 hindering the radio signal transmission: walls, intermediate floors, or large-size objects located in the room. Choosing a location to install, consider the orientation of the lens, the viewing angles of the detector and the camera, and the presence of obstacles that obstruct the view. It is recommended to aim the detector lens perpendicular to the intended path of intrusion into the room.
-
Page 26: Detector Installation
Use the SmartBracket mounting panel to mount the MotionCam detector on a vertical surface or in a corner. SmartBracket has special recesses for... - Page 27 To install the detector: Attach the SmartBracket panel to the surface with bundled screws, using at least two fixing points. To make sure that tamper reacts to an attempt to dismantle the device, fix the perforated corner of the...
- Page 28 SmartBracket: Attach the detector to the mounting panel. As soon the detector is fixed in SmartBracket, its LED blinks once to signal that the tamper on the detector has been triggered. Double-sided adhesive tape should be used only for the temporary installation of the detector.
-
Page 29: Maintenance
SmartBracket, check the tamper status in the Ajax app and then check if it fits tightly onto the attachment panel. Do not install the detector: ● outdoors; ● facing the window to avoid exposing the detector lens to direct sunlight;... -
Page 30: Technical Specifications
The pre-installed battery ensures up to 4 years of autonomous operation. If the detector battery is nearly depleted, the security system will send a notification, and the LED will smoothly light up and go out when the detector detects any motion or if the tamper is activated. Technical Specifications Sensitive element PIR sensor... - Page 31 Motion alarms are transmitted to CMSs that support SIA and Contact ID protocols. Visual alarm verifications are transmitted to the Manitou and SBN CMS, and Ajax PRO Desktop app Maximum RF output power Up to 20 mW Radio signal modulation...
-
Page 32: Complete Set
Up to 4 years Operating temperature range From 0°C to +40°C Operating humidity Up to 75% Overall dimensions 135 × 70 × 60 mm Weight 167 g Complete Set MotionCam SmartBracket mounting panel 2 CR123A batteries (pre-installed) Installation kit Quick Start Guide... -
Page 33: Warranty
Warranty Warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after the purchase and does not extend to the bundled battery. If the device does not function correctly, please contact the Support Service first. In half of the cases, technical issues can be solved remotely!
