I N F I N I T Y L I N E A
Tower Unit

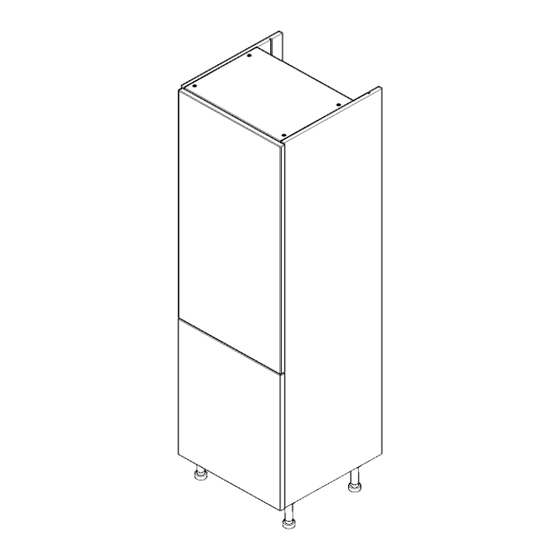

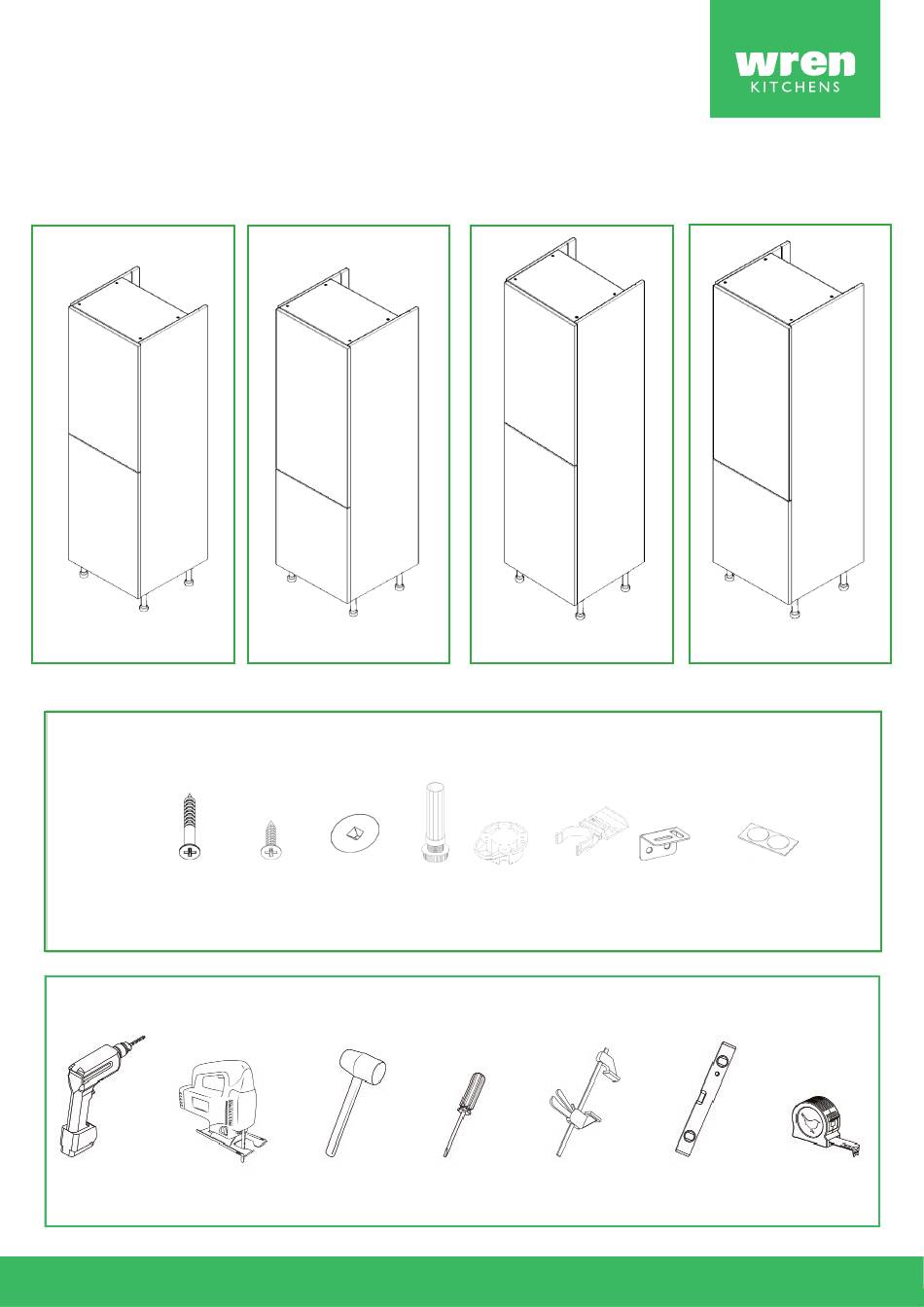

600 Appliance Tower (Door, Solid Top, 5 Legs)- Fitting Guide
2070x600
50/50
Units Parts
6X30mm
screws
Tools Required
Drill
Jigsaw
2070x600
70/30
18x Cover
5x Legs
30x15mm
Caps
screws
Screwdriver
Mallet
2250x600
50/50
5x Leg
2x Plinth
2x L Bracket
Brackets
Clips
Clamp
Spirit Level
2250x600
70/30
5x Door Buffer
Tape Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens INFINITY Tower Unit 600
Summary of Contents for Wren Kitchens INFINITY Tower Unit 600
- Page 1 I N F I N I T Y L I N E A Tower Unit 600 Appliance Tower (Door, Solid Top, 5 Legs)- Fitting Guide 2070x600 2070x600 2250x600 2250x600 50/50 70/30 50/50 70/30 Units Parts 5x Door Buffer 18x Cover 5x Legs 5x Leg 2x Plinth...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any waste cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 165mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
- Page 4 Notching out the side panels (when required) In order to allow for any horizontal pipework or wiring running behind the unit, some units will require the back of unit’s side to be notched out. Create a notch for the horizontal pipes at the back of the end panels using a jigsaw.
- Page 5 Attaching the unit tower to the wall (back rails) Drill through the rail into the wall to create a pilot holes. Place wall plugs into the wall and insert screw into the hole and tighten. Before attaching the units together, ensure that the linea profie cutout of both units align. Securing to adjacent units Clamp together the two units, checking the front edges are level and flush.
- Page 6 Before installing the hinges, check the fridge/freezer installation manual to see if hinges are required to be fitted to the cabinet or fridge. If hinges are to be fitted onto the fridge, then you follow the installation manual. If hinges are to be fitted onto the cabinet, then follow the instructions below. Attaching the frontal The frontal should be re-attached to the unit by clipping the hinges onto the hinge plates.
- Page 7 Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right. Point 2 - Will adjust the frontals in and out. To move the hinges up or down, loosen the screws A and B.
