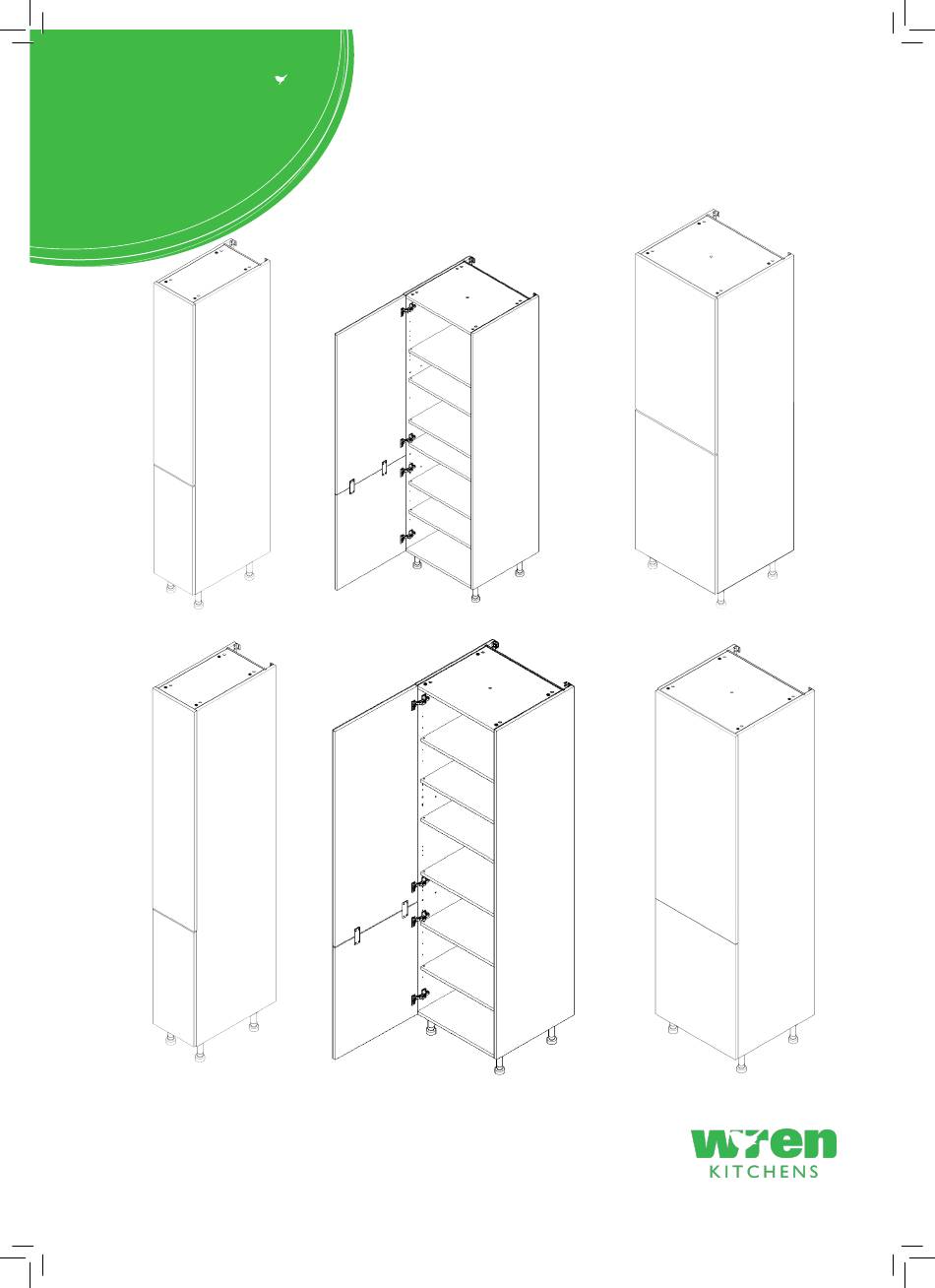

- Page 1 TOWER UNIT 300-600 2 Door 6 Shelf Assembly Guide TALL TALL TALL For Internal Use: FI.WR.INS.040_WKIN00140_Tower_300-600_2Dr6Shelf_Rev5.indd...
- Page 2 TOWER UNIT 300-600 2 Door 6 Shelf BEFORE YOU START INSTALLATION Assembly Guide SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED 600 tower shown for illustration purpose. Panel A Panel B Panel C Panel E Shelf Legs...
- Page 3 TOWER UNIT 300-600 2 Door 6 Shelf Step 1. Assembly Guide Seat dowel (F) into holes in both end panels (B) as shown. Seat (G) cam dowel into hole Step 2. as shown Seat cam dowel (G) into holes in both end panels (B) as shown.
- Page 4 TOWER UNIT 300-600 2 Door 6 Shelf Assembly Guide Step 5. Slide back panel (A) into groove of end panels (B). Once back panel (A) is in position, ensure the panel is flush & square with bottom of end panels (B). Step 6.
- Page 5 TOWER UNIT 300-600 2 Door 6 Shelf Assembly Guide Front Step 8. Secure each of the legs into place with 2 x 15mm screws (L) per leg Ensure legs are rotated as shown so that part of it is supporting the end panels (B). Front legs should have flat edge to the front.
- Page 6 TOWER UNIT See Customer Specific Kitchen Plan For Tower Frontals 2006mm 300-600 2 Door 6 Shelf 1974mm 1826mm Assembly Guide 1794mm Step 11. ttach hinge plates onto end panels (B) In locations shown using 8 x 15mm screws (L) Hinge side to be mounted in accordance to customer kitchen plan.
- Page 7 TOWER UNIT See Customer Specific Kitchen Plan For Tower Frontals 300-600 2 Door 6 Shelf Step 12. Assembly Guide Insert hinge where required in holes as shown. Step 13 Secure hinges by tightening 2 x screws with hinge dowels attached. These are already positioned within the hinges.
