Peninsular Wall Cabinet

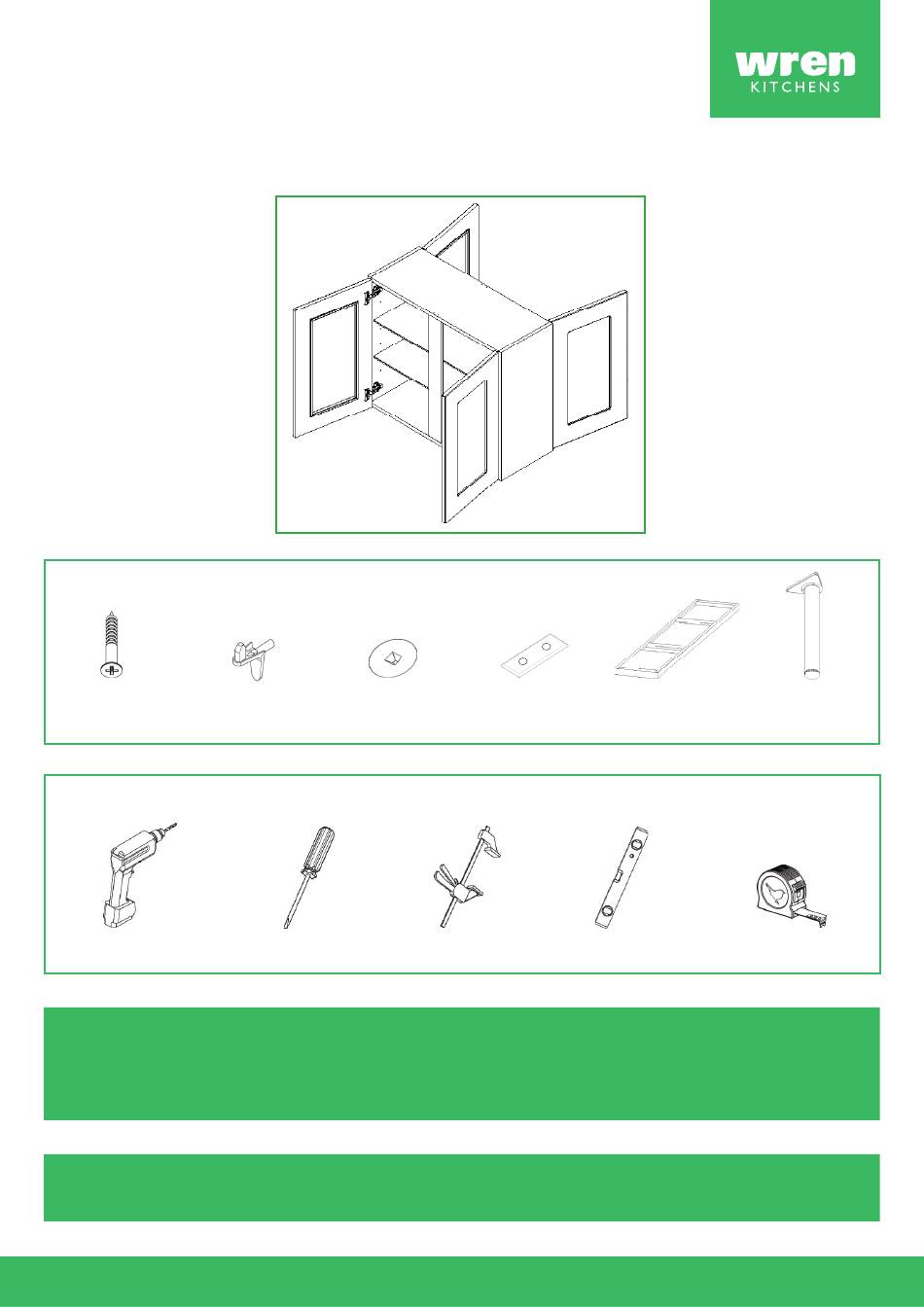

Wall (Door, Solid Top) - Fitting Guide
Unit Parts
4x 30mm
Screws
Tools Required
Drill
Remember to take care when unpacking. Please keep your workspace clean, clear
and tidy when working. This will help keep all items safe from any damages. Any
un-needed cardboard or plastic should be flattened down and placed in the bin.
A minimum of two people will be needed to lift the unit.
Shelf
Cover
Pegs
Caps
Screwdriver
Door
Buffers
Spirit Level
Clamp
Peninsular
Peninsular
Frame
Leg
Tape Measure
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Peninsular Wall Cabinet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wren Kitchens Peninsular Wall Cabinet

  • Page 1 Peninsular Wall Cabinet Wall (Door, Solid Top) - Fitting Guide Unit Parts Shelf Cover Door Peninsular Peninsular 4x 30mm Screws Pegs Caps Buffers Frame Tools Required Drill Spirit Level Screwdriver Clamp Tape Measure Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working.
  • Page 2 Removing the frontal Before installing the unit, remove the frontal by pulling the release catch. Place the frontal in the door safe along its longest length. Removing the fittings Remove all content so the unit is empty. All fittings should be kept on a clean and level surface and the shelves placed in the door safe along their longest lengths.
  • Page 3 Marking the frame location Place the peninsular frame against the wall, with the top of the frame in line with the unit marking, then mark where the frame screws will be installed. Securing the frame Position the support leg to under the frame, then adjust it as needed to ensure the frame is level.
  • Page 4 Notching out the bottom of the decor The bottom of the decor panel needs a space notched out this is where the unit will sit on the frame. The notched out space should be the thickness of the pelmet. Securing the decor panel Secure the decor panel to the unit in 2 places at the top of the unit and 2 places at the bottom of the unit using 30mm screws.
  • Page 5 Screws and fixings for attaching the unit to the wall are not provided, as these vary depending on the wall material and construction. Check that the appropriate fixings for the wall construction are used.  Fixing the unit to the wall Secure the unit to the wall in 4 places using the appropriate fixings at the back of each hinge plate.
  • Page 6 View from the Securing the peninsular leg and frame underside Once the units are secured to each other, the peninsular leg can be installed. This is done by screwing the 19mm screws provided into the pre made holes. Positioning the shelves Position the shelf pegs into the pre-drilled holes.
  • Page 7 Removing the hinge cover caps Remove the hinge cover cap using a flathead screwdriver by inserting the flathead into the slot of the cover cap and twisting.  Adjusting the hinges To adjust the hinges using points 1 and 2, you will need a Phillips screwdriver. ...
  • Page 8 Finishing Touches Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Page 8...
