E A S Y - F I T
Base Unit

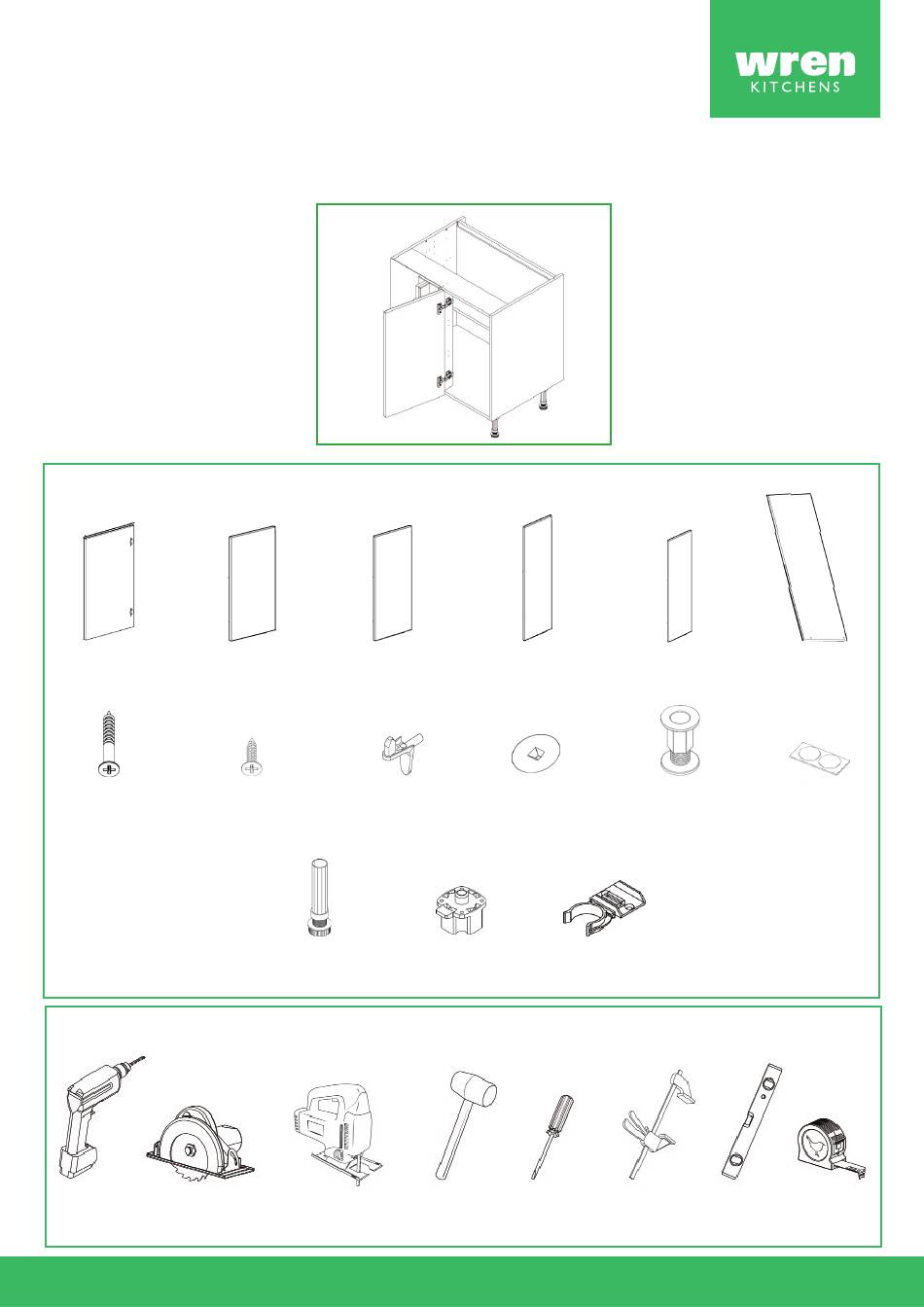

800 - 1000 Corner Base (Door, Open Top, 5 Legs) - Fitting Guide
Unit Parts
1x
Frontal
Corner post
16x 30mm
30x 15mm
Screws
Tools Required
Drill
Circular
Saw
1x
1x
Blanking Panel
5x
Screws
Shelf Pegs
5x
Legs
Jigsaw
1x
Packer Y1
16x
Cover Caps
5x
Leg Brackets
Plinth Clips
Mallet
Screwdriver
1x
Packer Z1
2x
Space Plugs
2x
Clamp
Spirit
Level
1x
Shelf
5x
Door Buffers
Tape
Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens EASY-FIT Base Unit
Summary of Contents for Wren Kitchens EASY-FIT Base Unit
- Page 1 E A S Y - F I T Base Unit 800 - 1000 Corner Base (Door, Open Top, 5 Legs) - Fitting Guide Unit Parts Frontal Corner post Blanking Panel Packer Y1 Packer Z1 Shelf 16x 30mm 30x 15mm Screws Shelf Pegs Cover Caps Screws...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise. Drilling holes into Packer Z1 Lightly mark the center of Packer Z1 and drill four holes along the line, ensuring the screws are equally spaced.
- Page 4 Attaching the packer to the unit Place the packer back into position. Screw through the unit using 4x30mm screws, 2 in the top and 2 in the bottom using the pilot holes to attach the packer piece. Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs.
- Page 5 Sliding the unit into place When sliding the unit into place do not tilt as this can damage the legs. Place the unit against the wall and align it with the wall markings that will have been drawn during the room preparation stage. Use a spirit level to ensure the unit is level from front to back, left to right, and diagonally.
- Page 6 Measuring the corner post Clamp the corner post panel into place by positioning it 18mm behind the centre post. Measure the gap between the corner post panel and side of the adjacent unit. Take measurements from the top, middle and bottom.
- Page 7 Marking the position of Panel Y onto Panel Re-position the panel Z and clamp into place, 18mm back from the edge of the centre post. Hold panel Y against the adjacent unit as shown in diagram. Mark the front and rear of panel Y onto panel Z using a pencil to determine the position for attaching the two panels.
- Page 8 Attaching the packer Secure Packer Y1 to the back of Panel Y using 3x30mm screws, ensuring the screws are equally spaced and both pieces align. View from above corner post. Fixing the corner post to the unit Move the adjacent base unit away from the corner unit.
- Page 9 Position the blanking panel with its white side facing the unit Fixing the blanking panel Position 7x15mm screws 9mm from the edges of the blanking panel to secure it into the unit end panel, top rail, and bottom fixed shelf, ensuring the screws are evenly spaced. No screws or wall plugs are provided for attaching the unit to the wall.
- Page 10 Inserting the space plugs Position the space plugs between the wall and the back of the unit, where the holes are located. Unwind until the space plugs touch both the back panel of the unit and the wall. Insert the screws into the drilled holes and tighten to the wall.
- Page 11 Finding the shelf height Position the shelf pegs into the pre-drilled holes. The shelf can be positioned at 3 different heights, as shown in the diagram. Place the shelf into position so the pin of the View of shelf peg is inserted into the pre-drilled holes. the inside of the unit Inserting the shelf into position...
- Page 12 Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting. Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right.
- Page 13 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Store the L-brackets. These will be used later when installing the worktop (laminate or timber).
