- Page 1 Installation Guide Low Pro Front Fairing SP0111B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW LOW PRO ROOF RACK AND FAIRING? HERE TOOLS ARE A FEW THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. •...

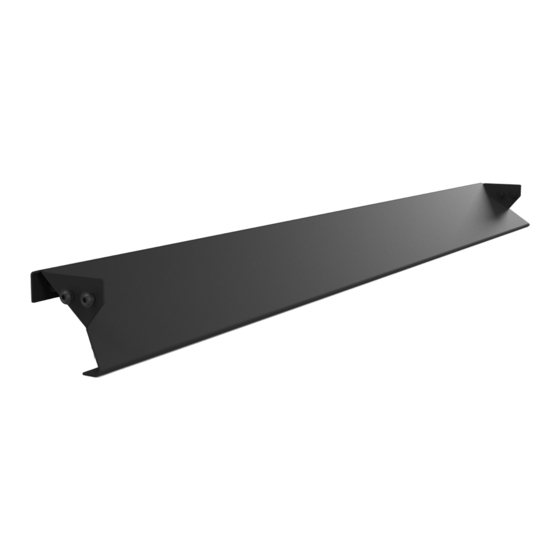

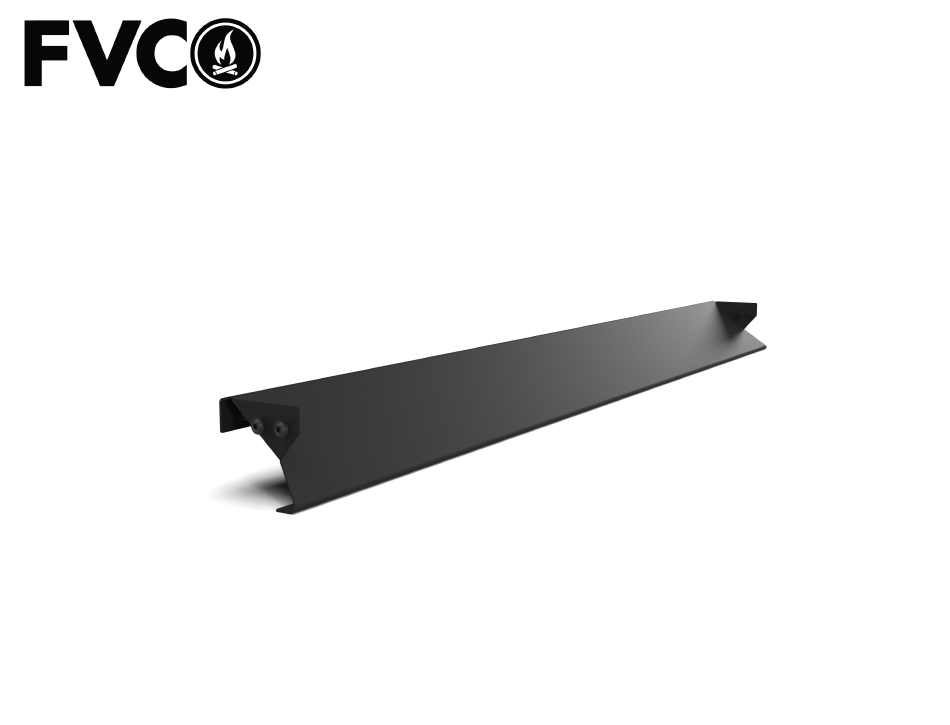

- Page 4 PACKAGE CONTENTS FRONT FAIRING 1/4-20 BUTTON HEAD SCREW T-NUT INSERT QTY-1 QTY-5 QTY-5 1/4 SPLIT LOCK WASHER 1/4-20 FLANGE HEAD SCREW QTY-5 QTY-4 STICKER PACK INSTALLATION GUIDE QTY-1 QTY-1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 LET’S GET STARTED! FIGURE 1 IF YOU HAVE ALREADY INSTALLED YOUR LOW PRO ROOF RACK, REMOVE THE FRONT CROSSBAR FROM THE RACK BEFORE BEGINNING. TAKE THE FRONT FAIRING, AND ATTACH THE 1/4-20 BUTTON HEAD SCREWS, 1/4 SPLIT LOCK WASHERS, AND T NUT INSERTS AS SHOWN IN FIGURE 1 NOTE- LEAVE THE HARDWARE AS LOOSE AS POSSIBLE! FIGURE 2 FLATLINE VAN CO •...
- Page 6 NOW, SLIDE THE CROSSBAR ONTO THE FAIRING. YOU’LL HAVE TO STRAIGHTEN EACH T NUT AS YOU GO TO GET IT TO FEED INTO THE CROSSBAR CORRECTLY. (SEE FIGURE 3) FIGURE 3 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 7 AFTER SLIDING THE FAIRING AND CROSSBAR TOGETHER, TIGHTEN ALL FIVE (5) OF THE 1/4-20 BUTTON HEAD SCREWS. NOW YOU’RE READY TO ATTACH THE FAIRING TO THE ROOF RACK. SLIDE IT IN FROM THE FRONT, WITH THE FAIRING ATTACHMENT HOLES LINING UP WITH THE FIRST SET OF MOUNT HOLES ON THE SIDE RAIL, AND THE CROSSBAR HOLES IN THE SLOT ON THE SIDE RAIL, AND TIGHTEN DOWN USING THE 1/4-20 FLANGE HEAD SCREWS (FIGURE 4)
- Page 8 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
