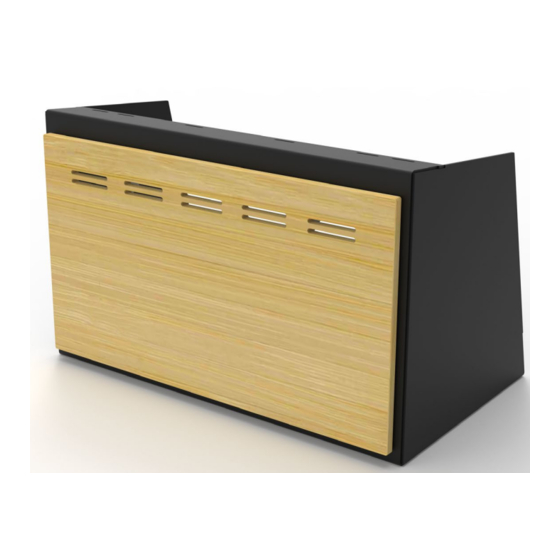

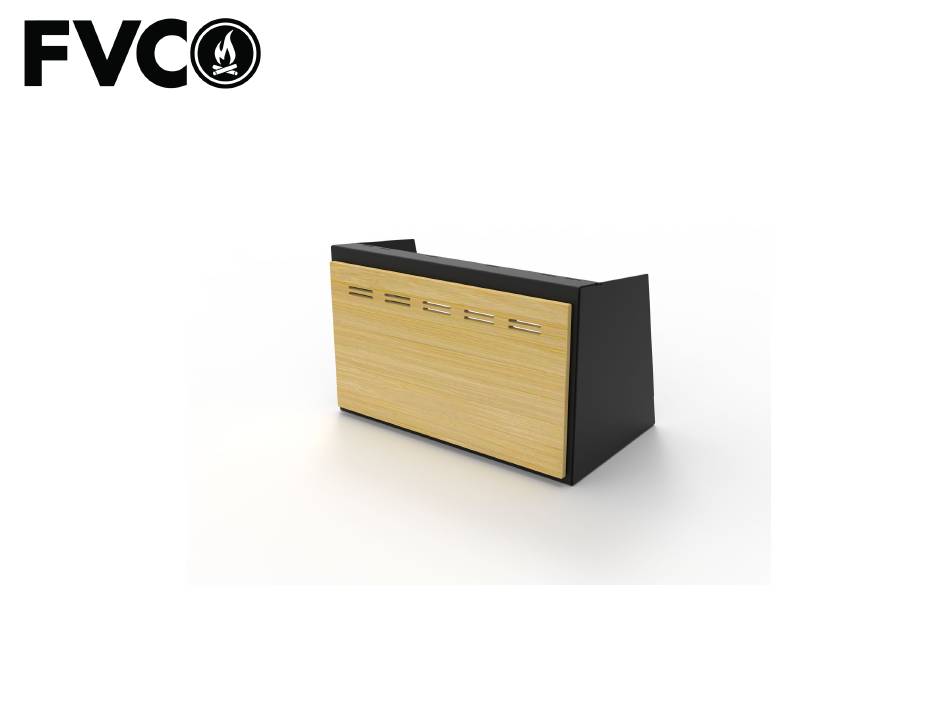

- Page 1 Installation Guide 24 Inch Upper Cabinet SP5004 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW CABINET? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
- Page 4 PACKAGE CONTENTS CABINET QTY-1 #10 FLAT WASHER ADWAG MOUNT BRACKET 10-32 THIN NYLOCK 10-32 FLAT HEAD SCREW QTY-4 QTY-2 QTY-4 QTY-4 INSTALLATION GUIDE STICKER PACK QTY-1 QTY-1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 LET’S GET STARTED! FIGURE 2 IF YOU’VE GOT AN ADVENTURE WAGON KIT INSTALLED IN YOUR VAN, YOU’LL NEED TO INSTALL THE MOUNT BRACKETS ON THE TOP OF YOUR CABINET USING THE SUPPLIED #10 HARDWARE (SEE FIGURE 1 & FIGURE 2) NEXT STEP IS TO DECIDE ON PLACEMENT IN YOUR VAN, THIS IS ENTIRELY UP TO YOU.
- Page 6 FOR ADWAG KIT, PLACE YOUR L-TRACK STUDS IN POSITION TO RECEIVE THE CABINET. FIGURE 3 BELOW SHOWS WHICH HOLES TO USE. IF YOU’RE INSTALLING THE CABINET INTO YOUR OWN DIY WALL PANELS, SIMPLY SCREW THE CABINET TO THE WALL USING ANY OF THE MANY SUPPLIED HOLES. FIGURE 3 •ADWAG- VERTICAL SLOTS •DIY- HORIZONTAL SLOTS...
- Page 7 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
