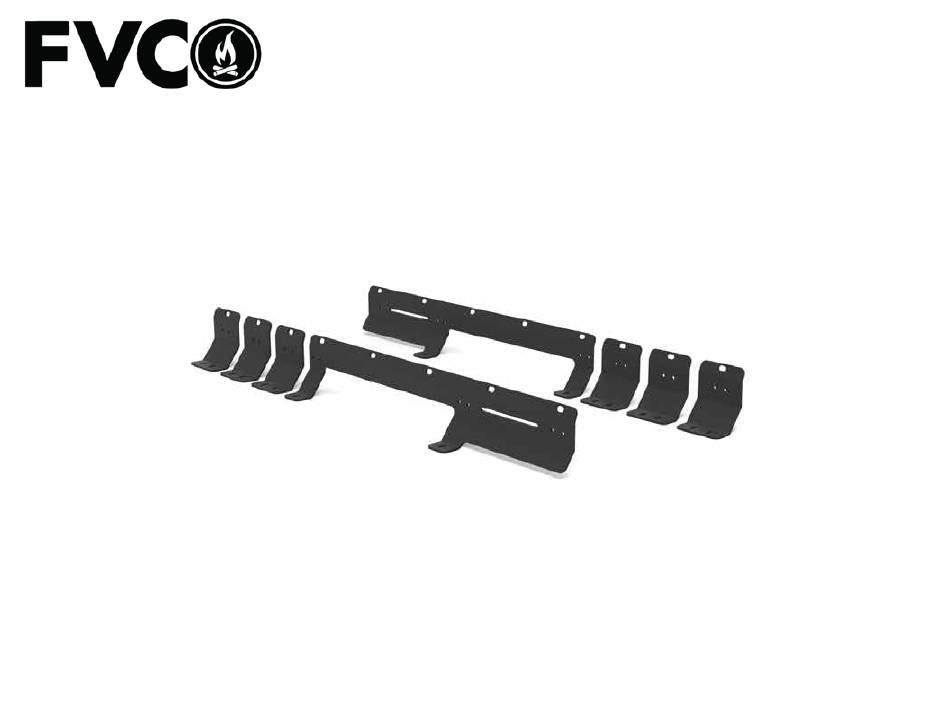

- Page 1 Installation Guide Low Pro F80 Kit SP0109B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THIS INSTALLATION GUIDE DOES NOT COVER THE INSTALL PROCESS OF YOUR FIAMMA F80 AWNING. PLEASE REFER TO THE INSTALLATION GUIDE PROVIDED WITH YOUR AWNING FOR INFORMATION. THE FVC F80 AWNING KIT DOES NOT ALTER OR CHANGE THE PROCESS DEFINED BY FIAMMA.

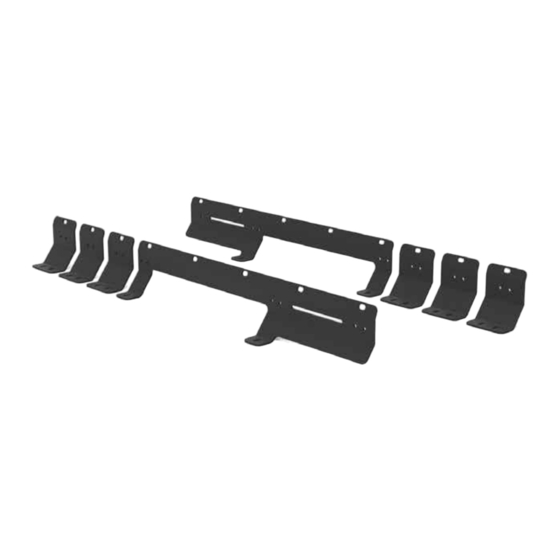

- Page 4 PACKAGE CONTENTS CENTER BRACKET FRONT BRACKET REAR BRACKET QTY-6 QTY-1 QTY-1 INSTALLATION GUIDE STICKER PACK QTY-1 QTY-1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 LET’S GET STARTED! IF YOU ARE INSTALLING THIS KIT AT THE SAME TIME AS YOUR LOW PRO RAIL NUT ROOF RACK, SLIDE THE APPROPRIATE AMOUNT OF RAIL NUTS INTO THE PASSENGER SIDE ROOF TRACK TO ACCOMMODATE YOUR F80 BRACKETS. IF YOU ARE INSTALLING THE F80 WITH A LOW PRO THAT HAS ALREADY BEEN FITTED TO YOUR VAN, YOU’LL RE-USE EXISTING RAIL NUTS IN THE TRACK.
- Page 6 NOW YOU CAN START AFFIXING THE BRACKETS TO THE ROOF TRACK AND CROSSBARS. TIGHTEN THE BOLTS TO THE CROSSBARS FIRST, AND THEN TIGHTEN DOWN TO THE ROOF TRACK. ONCE YOU’VE TIGHTENED THE BRACKETS DOWN YOU CAN PLACE YOUR FIAMMA MOUNTING BRACKETS IN THEIR APPROPRIATE POSITION. SEE FIGURE 2 &...
- Page 7 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
