Specifications

Connectors (Host Unit)
Connectors (Remote Unit)
Maximum Distance
Maximum Video Resolution
Power Adapter
Dimensions (per unit)
Weight (per unit)

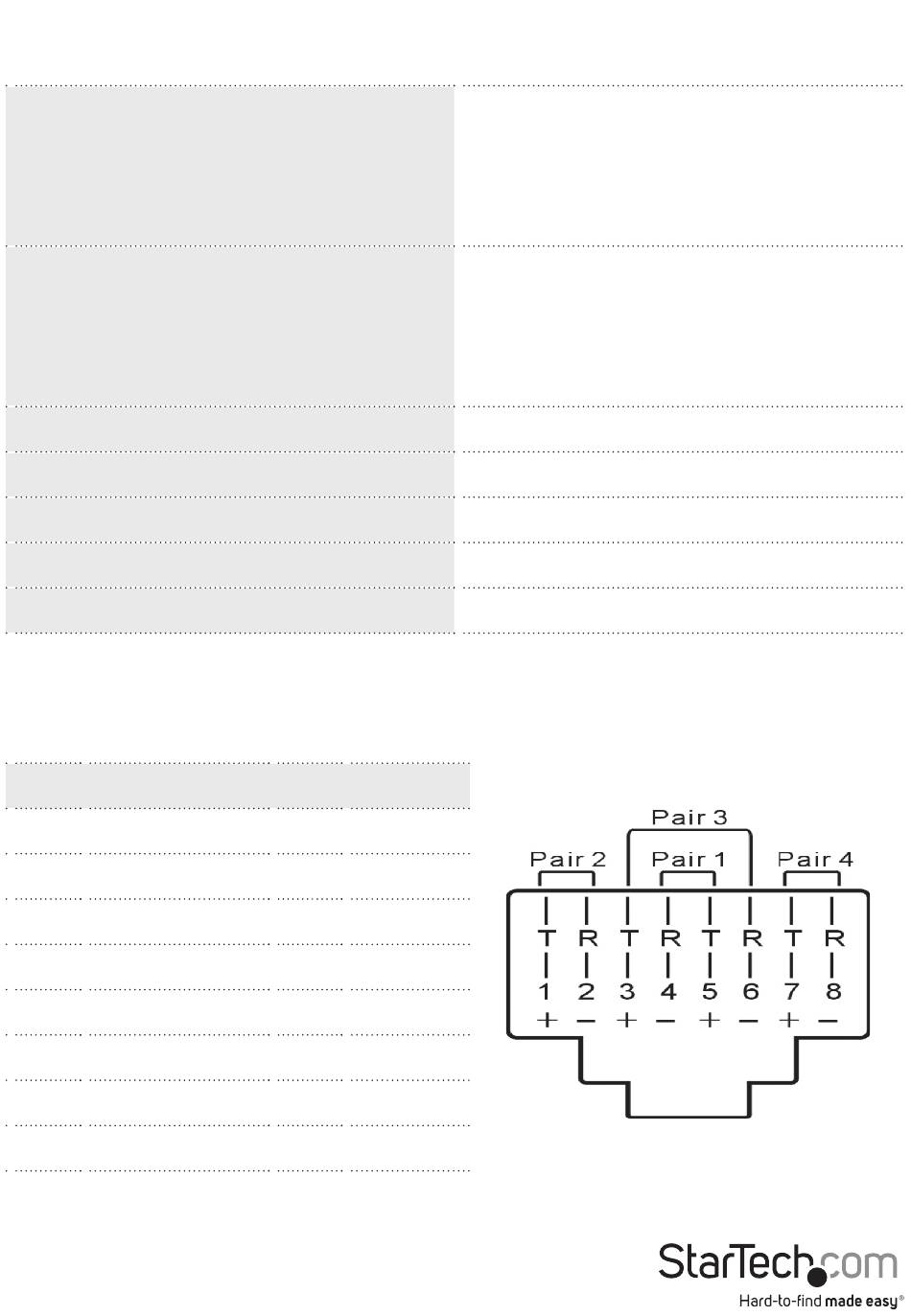

RJ-45 Connector Pinout

Pin Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
Instruction Manual
Pair Function
2 T
2 R
3 T
1 R
1 T
3 R
4 T
4 R
14
1 x DE - 15 VGA video
2 x PS/2 keyboard/mouse
1 x RJ45 port
1 x DE-15 KVM cable port
1 x DE-15 VGA video
2 x PS/2 keyboard/mouse
1 x RJ45 port
1 x DE-15 KVM cable port
150m/500ft
1024x768
9V DC, 600mA, center positive
75.0mm x 155.0mm x 20.0mm
299g
