Instruction Manual
KVM Console Extender over Cat5 UTP
SV565UTP

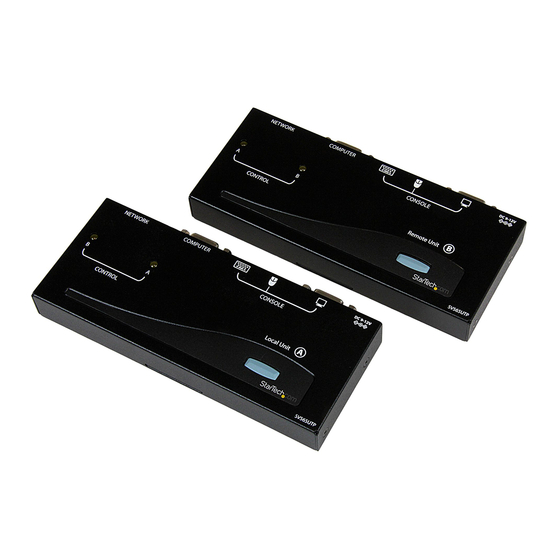

*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/25/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV565UTP
Summary of Contents for StarTech.com SV565UTP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/25/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Front View ..............................2 Rear View ..............................3 Hardware Installation ..........................4 Driver Installation ............................4 Configuration ..................5 Serial Data Link ............................5 Automatic Calibration Button and Light ..................5 Manual Calibration and Settings Menu .................... -
Page 4: Introduction
Introduction Packaging Contents • SV565UTP Host Unit • SV565UTP Remote Unit • Instruction Manual • Power Adapter • Set of rubber mounting feet System Requirements • Integrated KVM cable for the host and remote computers (not provided) StarTech. com ID:SVECONx (PS/2), SVECONUSx (USB) • Standard 104-key PS/2 keyboard... -
Page 5: Installation
Installation This product is composed of two different units: the Host Unit and the Remote Unit. The Host Unit takes input controls from a computer (using a PS/2 or USB integrated KVM cable) and allows access to them via the Remote Unit over Category 5 UTP cable. The remote computer also connects to the Remote Unit using an integrated KVM cable (again, either PS/2 or USB) and allows the user at the remote site to control that computer or the host computer using keyboard... - Page 6 2. Switch off the computer and disconnect any existing VGA and input connections. 3. Using a StarTech.com integrated KVM cable (see page 8 for part numbers), connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate (The PS/2 version of the cable is color coded.) Connect the opposite...
- Page 7 2. Switch off the computer and disconnect any existing VGA and input connections. 3. Using a StarTech.com integrated KVM cable (see page 8 for part numbers), connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate (The PS/2 version of the cable is color coded.) Connect the opposite...
-
Page 8: Driver Installation
Driver Installation No driver installation is required as the SV565UTP uses standard keyboard/mouse drivers. Video Compensation Video Compensation allows the user to adjust the equalization on the Remote Unit to optimize video performance based on the length of cable being used, as well as other factors that may affect . -
Page 9: Using The Sv565Utp Kvm Extender
Using the SV565UTP KVM Extender This section details how to use your KVM extender at both the host and remote locations. Using the Host Unit The Host Unit performs two functions: it allows a user at the Remote Unit to assume control of the computer on the Host Unit (Computer A), and it also permits the user at the Host Unit to use Computer A. - Page 10 Keyboard Shortcut Command Sequences Hotkey with Standard Hotkey Description Compatibility Mode Toggles control of Computer A between [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] Auto, Local, Remote modes Cancels the hotkey [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] sequence Enables (2 beeps) or disables (1 beep)
- Page 11 Hotkey with Standard Hotkey Description Compatibility Mode Privacy Setting: A. Host Unit in Local mode (LED B: Off, LED A: On) 1 beep: Reset to Factory Default. 2/3 beeps: Disable the Host Unit video output signal. B. Host Unit in Auto mode (LED A&B flashes alternately) 1 beep: Reset to Factory...
-
Page 12: Commands
Beep Codes Some of the keyboard command sequences you issue to the Host Unit have multiple possible settings. The Unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled... - Page 13 Remote Unit to use a locally connected computer (Computer B) as though the SV565UTP KVM extender was transparent. You can use either keyboard shortcuts or the mode switch on the top of the Remote Unit to alternate control between A and B.
- Page 14 Hotkey with Standard Hotkey Description Compatibility Mode Switches control to [Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1] Computer B Switches control to Computer A (input [Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2] allowed only if the Host Unit is in Remote or Auto mode)
-
Page 15: Image Quality
Beep Codes Some of the keyboard command sequences you issue to the Remote Unit have multiple possible settings. The Unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled... -
Page 16: Specifications
Specifications 1 x DE - 15 VGA video 2 x PS/2 keyboard/mouse Connectors (Host Unit) 1 x RJ45 port 1 x DE-15 KVM cable port 1 x DE-15 VGA video 2 x PS/2 keyboard/mouse Connectors (Remote Unit) 1 x RJ45 port 1 x DE-15 KVM cable port Maximum Distance 150m/500ft... -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
