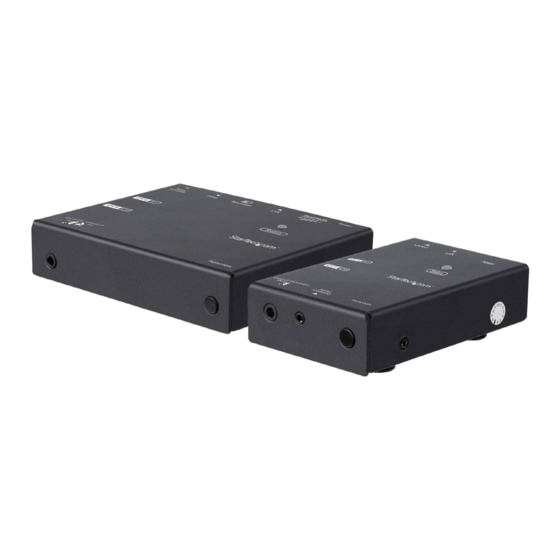

HDMI Over IP Extender Kit - 1080p
ST12MHDLNHK
ST12MHDLNHR
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the latest information, technical specifications, and support for
For the most up-to-date information, please visit: www.startech.com
this product, please visit www.startech.com
Manual Revision: 08/17/2018
Manual Revision: 08/17/2018
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST12MHDLNHR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com ST12MHDLNHR

  • Page 1 PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com JP: 取扱説明書 - jp.startech.com For the latest information, technical specifications, and support for For the most up-to-date information, please visit: www.startech.com this product, please visit www.startech.com Manual Revision: 08/17/2018 Manual Revision: 08/17/2018...
  • Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.
  • Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 4: Table Of Contents

    Table of Contents Introduction ....................1 Package Contents ............................. 1 Requirements ............................. 2 Product Diagram ..................3 Transmitter Front View ..........................3 Transmitter Rear View ..........................3 Receiver Front View ..........................4 Receiver Rear View ............................ 4 Hardware Installation and Configuration ..........5 Preparing Your Site ...........................
  • Page 5: Introduction

    • 1 x IR Receiver • 8 x Rubber Feet • 1 x Instruction Manual Package Contents for ST12MHDLNHR • 1 x HDMI Over IP Receiver • 1 x Universal Power Adapters (NA, EU, UK, ANZ) • 1 x Mounting Bracket •...
  • Page 6: Requirements

    Requirements • HDMI® Enabled Video Source Device(s) (e.g. computer, Blu-ray™ player) • HDMI Enabled Display Device(s) (e.g. television, projector) - one for each Receiver • AC Electrical Outlet for the Transmitter and each Receiver • HDMI Cable for Video Source(s) and Display(s) •...
  • Page 7: Product Diagram

    Product Diagram Transmitter Front View Control IR In / Extension IR Out Port Function Button Transmitter Rear View Power Adapter Bandwidth Port Switch Rotary DIP Switch Serial Port (Control) Resolution Port Switch HDMI Video Input Port Instruction Manual...
  • Page 8: Receiver Front View

    Receiver Front View Control IR In / Extension IR In Port Serial (Control) Port Function Button Receiver Rear View Power Adapter Rotary DIP Port Switch Port HDMI Video Output Port Instruction Manual...
  • Page 9: Hardware Installation And Configuration

    2. Determine where the HDMI Enabled Display Device will be located and place or mount the display appropriately. 3. (Optional) If using additional Receivers (ST12MHDLNHR), determine where the HDMI Enabled Display Device(s) will be located and place or mount the displays appropriately.
  • Page 10: Point-To-Multipoint Installation With A Lan Network

    Note: If you are using surface cabling, ensure you have enough CAT5/5e/6 unshielded twisted pair (UTP) network cabling to connect the Transmitter to the Receiver’s location, and that each end is terminated with an RJ-45 connector. If you are using premises cabling, ensure that the CAT5/5e/6 unshielded twisted pair (UTP) network cabling between the Transmitter and Receivers has been properly terminated in a wall outlet in each location and there is a patch cable long enough to connect the Transmitter and Receivers to their respective outlets.
  • Page 11: Matrix With A Gigabit Lan Network

    Note: Your Router must support IGMP snooping. Refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled. c) (Optional) When adding additional Receivers (ST12MHDLNHR – sold separately), a run of CAT5/5e/6 Cable will be required from each device to the LAN hub, router or switch.
  • Page 12: Ip Configuration

    Note: Your router must support IGMP snooping. Refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled. c) (Optional) When connecting additional Receivers (ST12MHDLNHR – sold separately), a run of CAT5/5e/6 cable will be required from each device to the LAN hub, router or switch.
  • Page 13 4. Navigate to Internet Protocol Version 4 (TCP/IPv4) and select Properties. 5. DHCP is enabled if the following two options are selected: Obtain an IP address automatically and Obtain DNS server address automatically. 6. DHCP is not enabled if you have configured your IP manually and the following options are selected: Use the following IP address and Use the following DNS server address.
  • Page 14: Operation

    The RX IP address displays the Receiver’s IP address. The TX IP address displays the Transmitter’s IP address. To access the Transmitter or Receiver for configuration complete the following: 1. Enter the TX IP address or RX IP address in the address bar of your web browser. 2.
  • Page 15: Push-Button Control

    Solid green Source connected, linked Solid blue + flash green 2 times LAN connected, linked Solid blue + flash blue 2 times Source and LAN connected, linked HDMI Over IP Receiver LED Behavior Significance Note: For HDCP signals the Blue LED is replaced by a Purple LED Flash red Initiating power up Flash green 3 times...
  • Page 16: Ir Remote Control

    Direct IR Control of the Source Device at the Transmitter Connect the IR Receiver to the Control IR In / Extension IR Out Port on the Transmitter. Using the IR Remote Control, you can now control the HDMI over IP Transmitter. Direct IR Control of the Display Device at the Receiver Connect the IR Receiver to the Control IR In / Extension IR Out Port on the Receiver.
  • Page 17: Serial Control

    adjusted for all of your Display Devices, at all the Receiver sites that have been paired with this Transmitter. Serial Control The Transmitter and Receivers can be controlled by direct Serial connection. Note: Only one Transmitter or Receiver can be controlled at any given time. To connect either the Transmitter or Receiver(s) to your computer, connect the DB9 to 2.5 mm Serial Adapter Cable to the Serial Port on your computer and the 2.5 mm connector to the Serial (Control) Port on the Transmitter or Receiver.
  • Page 18 IPALL=i1.i2.i3.i4 Example: i1=192,i2=168, i3=1, i4=1, n1=255, n2=255, n3=255, n4=0, g1=192, n1.n2.n3.n4 g2=168, g3=1, g4=189 g1.g2.g3.g4 IP address = 192.168.1.1; Netmask: 255.255.255.0; Gateway: 192.168.1.189 GROUP=n Group ID, n: 0 ~ 1023 Example: n=22, Group ID=22 OBR=n,m Output Bit Rate, n=F, H, S (FHD, HD, SD), m= Bit rate (Kb) Example: OBR=F, 8, Display in Full HD format with 8 Bit rate...
  • Page 19 PWD=n Power on / off, n: 0, Power on, n=1, Power off Example: PWD=1, Power off the Transmitter unit Receiver Command Description Copy monitor EDID to Transmitter AVOE AV output enable AVOD AV output disable MAC=n1 n2 n3 n4 n5 n6 Set MAC address DHCP=n DHCP On/Off, n : 0 - Off, 1 - On...
  • Page 20 GROUP=n Group ID, n: 0 ~ 1023 Example: n = 22, Group ID=22 BAUD=n Bypass Baud Rate, n : 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200 Example: BAUD = 115200, Bypass Baud Rate115200 DN=n Name Device: n: ASCII String (max size - 31) Example: DN = 0C, Device Name = 12 GCID...
  • Page 21: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
