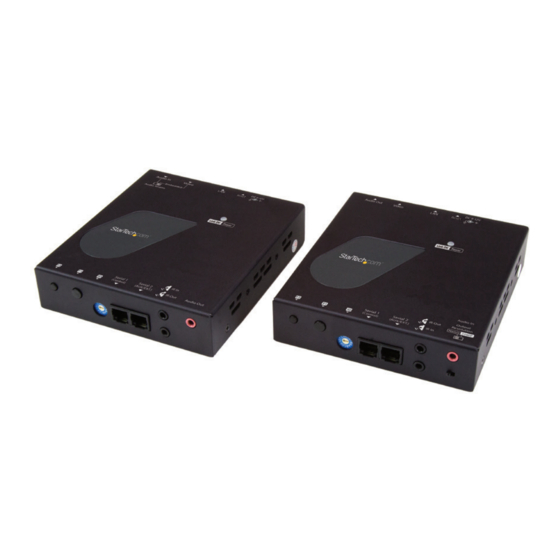

HDMI® Over IP Extender Kit - 4K
ST12MHDLAN4K
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ST12MHDLAN4K.
Manual Revision: 03/29/2017
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST12MHDLAN4K
Summary of Contents for StarTech.com ST12MHDLAN4K

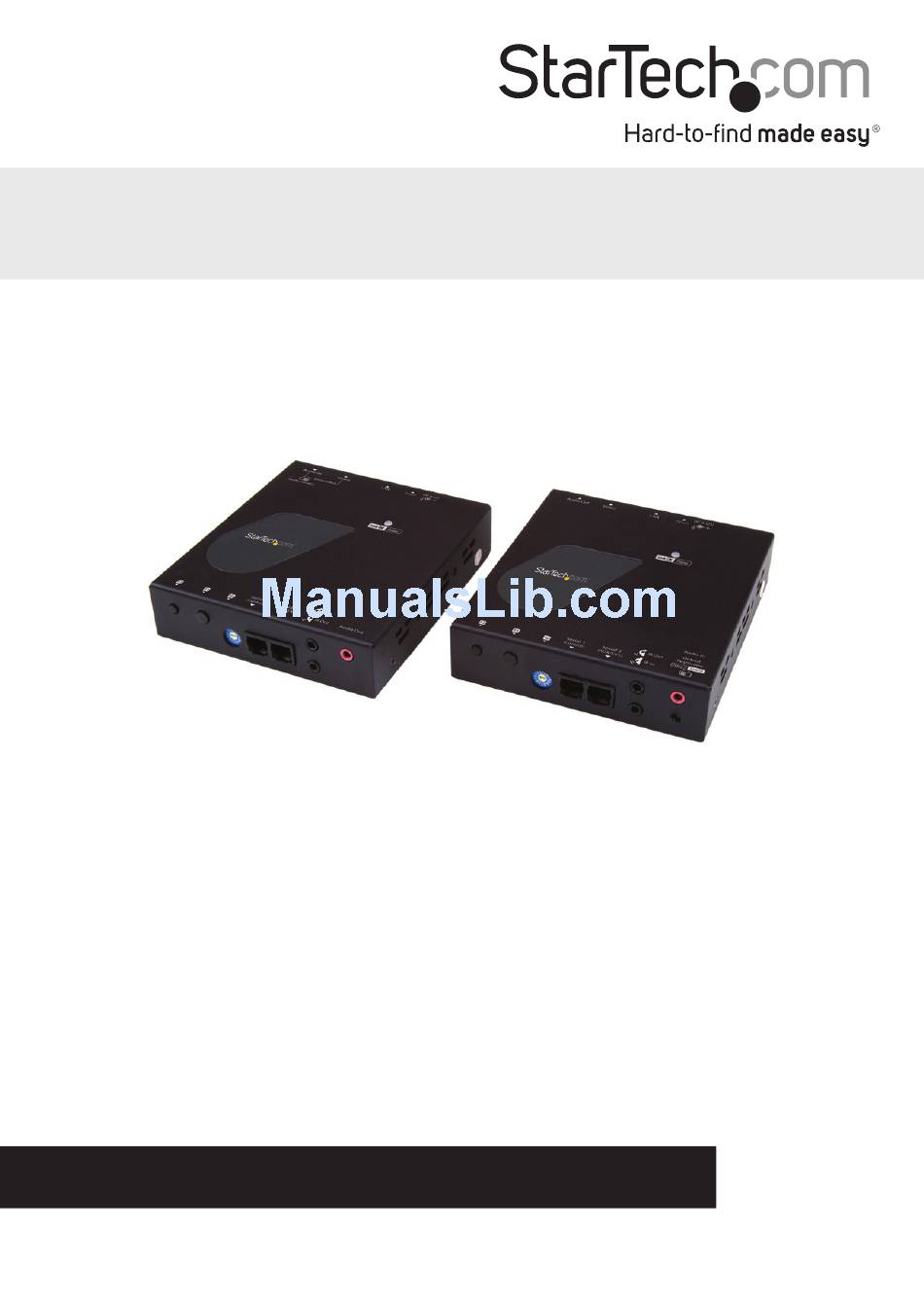

- Page 1 HDMI® Over IP Extender Kit - 4K ST12MHDLAN4K *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ....................2 Transmitter Unit ............................2 Receiver Unit ............................... 3 Installation ......................4 Preparing your site............................ 4 Hardware installation ..........................4 Software installation ..........................6 Technical support .................... -
Page 4: Introduction
Introduction Packaging contents • 1 x HDMI over IP transmitter • 1 x HDMI over IP receiver • 2 x universal power adapters (NA, EU, UK, ANZ) • 2 x mounting brackets • 2 x CAT5 cables • 2 x RJ11 to RS232 adapters •... -
Page 5: Product Diagram
15. Link and power LED DC 9-12V power jack * Serial control port is not active. To control the ST12MHDLAN4K download our free mobile application. (see Page 6). **Audio out port is not functional in video wall or point to multi-point configurations. -
Page 6: Receiver Unit
Audio in port** Video resolution selection switch DC 9-12V power jack * Serial control port is not active. To control the ST12MHDLAN4K download our free mobile 10. Reset LED application. (see Page 6). 11. Reset button **Audio in port is not functional in Video Wall or 12. -
Page 7: Installation
Installation Preparing your site Note: The HDMI extender kit lets you extend your 4K30 video signals over a Gigabit LAN network, beyond the typical cable length restriction of 330 ft. (100m) of Gigabit network portals. Refer to the manufacturer of the network equipment to determine the length restriction and to ensure the transmitter unit and receiver unit(s) are all within the restricted range of the nearest network portal. - Page 8 Verify that the image from your video source appears on video display(s) attached to the receiver unit(s). HDMI over IP receivers HDMI displays Gigabit network switch HDMI over IP transmitter HDMI video source (Additional receiver units sold separately, StarTech.com SKU: ST12MHDLAN4R) Instruction Manual...
-
Page 9: Software Installation
Android™ for your smartphone or tablet, and for the Google Chrome™ browser. To install the software: Visit http://www.StarTech.com/ST12MHDLAN4K, using the device you intend to install software on. Under the overview tab, select the link for the store that corresponds with your device. -
Page 10: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
