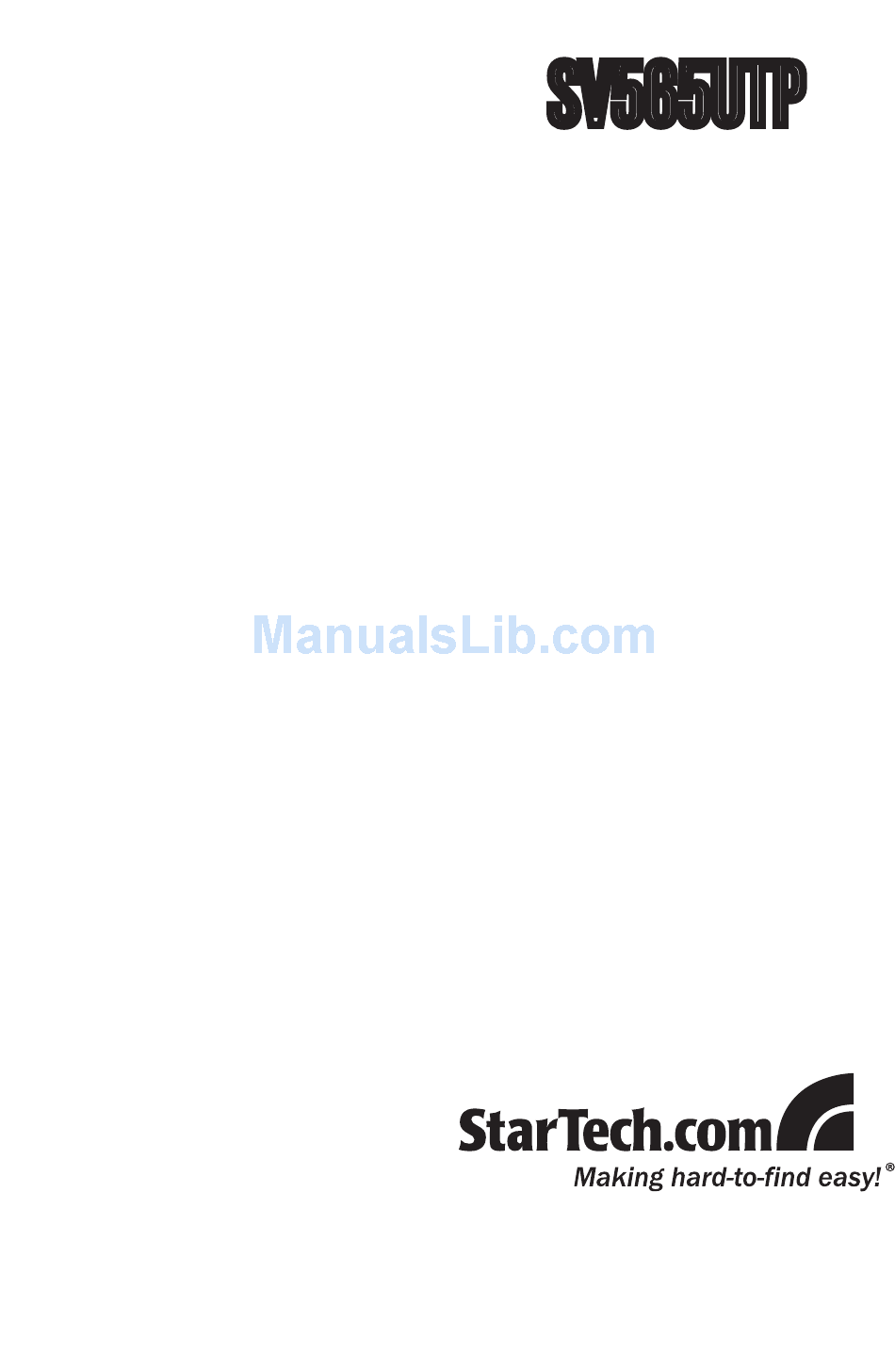

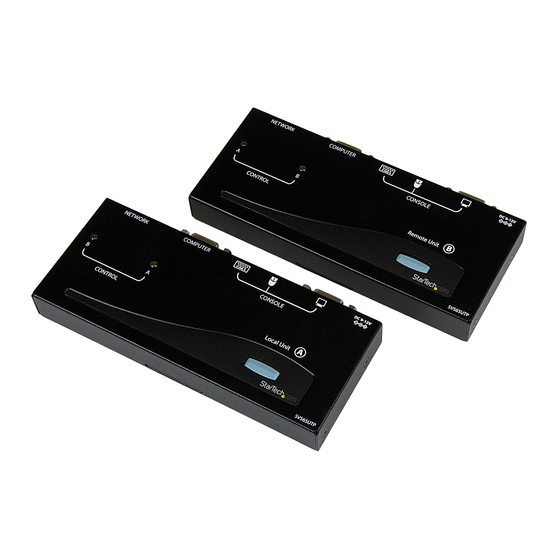

- Page 1 SV565UTP Instruction Manual KVM Console Extender over Cat5 UTP USB PS/2 KVM Console Extender over Cat5 UTP...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Installing the Host Unit..............3 Installing the Remote Unit ............4 Driver Installation .................5 Video Compensation ............5 Using the SV565UTP KVM Extender ......6 Using the Host Unit..............6 Using the Remote Unit ..............9 Specifications ..............12 RJ-45 Connector Pinout ..........12 Technical Support ............ -
Page 4: Introduction
2 x Power adapter • 2 x Set of rubber mounting feet System Requirements • Integrated KVM cable for the host and remote computers (not provided) StarTech.com ID: SVECONx (PS/2), SVECONUSx (USB) • Standard 104-key PS/2 keyboard • Standard 3-button PS/2 mouse •... -
Page 5: Preparing Your Site
Preparing Your Site Before you can install the the product, you need to prepare your site. Determine where the host computer will be located and set up the computer. Determine where the console devices (mouse, keyboard, monitor) will be located and place them appropriately. If you are using surface cabling, ensure you have enough Category 5 unshielded twisted pair (UTP) network cabling to connect the Host Unit to the Remote Unit’s location, and that each end is terminated... -
Page 6: Installing The Host Unit
Switch off the computer and disconnect any existing VGA and input connections. Using a StarTech.com integrated KVM cable (see page 8 for part numbers), connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate. -
Page 7: Installing The Remote Unit
Switch off the computer and disconnect any existing VGA and input connections. Using a StarTech.com integrated KVM cable (see page 8 for part numbers), connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate. -
Page 8: Driver Installation
Driver Installation No driver installation is required as the SV565UTP uses standard keyboard/mouse drivers. Video Compensation Video Compensation allows the user to adjust the equalization on the Remote Unit to optimize video performance based on the length of cable being used, as well as other factors that may affect . -
Page 9: Using The Sv565Utp Kvm Extender
Using the SV565UTP KVM Extender This section details how to use your KVM extender at both the host and remote locations. Using the Host Unit The Host Unit performs two functions: it allows a user at the Remote Unit to assume control of the computer on the Host Unit (Computer A), and it also permits the user at the Host Unit to use Computer A. - Page 10 Keyboard Shortcut Command Sequences Hotkey with Standard Hotkey Description Compatibility Mode Toggles control of Computer A between [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] Auto, Local, Remote modes [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey sequence Enables (2 beeps) or disables (1 beep) Compatibility Mode so that the KVM...
-
Page 11: Beep Codes
Privacy Setting: A. Host Unit in Local mode ( LED B: Off, LED A: On) 1 beep: Reset to Factory Default. 2/3 beeps: Disable the Host Unit video output signal. B. Host Unit in Auto mode ( LED A&B flashes alternately) 1 beep: Reset to Factory Default. -
Page 12: Using The Remote Unit
Unit is set to Auto or Remote mode, and it also permits the user seated at the Remote Unit to use a locally connected computer (Computer B) as though the SV565UTP KVM extender was transparent. You can use either keyboard shortcuts or the mode switch on the top of the Remote Unit to alternate control between A and B. -
Page 13: Led Indicators
LED Indicators Mode ‘A’ Indicator ‘B’ Indicator Remote Access (Computer A) Local Access (Computer B) Keyboard Shortcut Command Sequences Hotkey with Compatibility Standard Hotkey Description Mode Toggles console control between [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] Local Access and Remote Access [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc]... - Page 14 Beep Codes Some of the keyboard command sequences you issue to the Remote Unit have multiple possible settings. The Unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled 2 beeps: enabled...
-
Page 15: Specifications
Specifications 1 x DE-15 VGA video 2 x PS/2 keyboard/mouse Connectors (Host Unit) 1 x RJ45 port 1 x DE-15 KVM cable port 1 x DE-15 VGA video 2 x PS/2 keyboard/mouse Connectors (Remote Unit) 1 x RJ45 port 1 x DE-15 KVM cable port Maximum Distance 150m/500ft Maximum Video Resolution... -
Page 16: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 17 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
