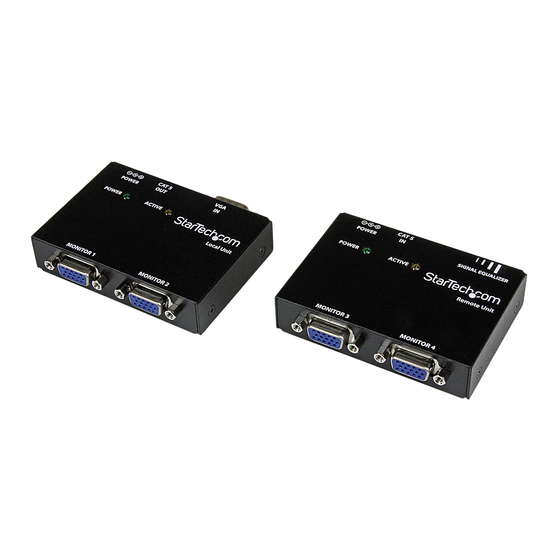

VGA over Cat5 Video Extender (ST121 Series)
ST121UTP / ST121UTPGB / ST121UTPEU
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/22/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST121UTP
Summary of Contents for StarTech.com ST121UTP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/22/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Packaging Contents ..........................1 System requirements ..........................2 Installation ........................ 1 Hardware Installation ..........................1 Local Unit ...............................2 Remote Unit ..............................2 Driver Installation ............................4 Troubleshooting ...................... 5 Wiring Diagram ......................6 Specifications ......................7 Technical Support ....................8 Warranty Information ..................... -
Page 4: Introduction
Introduction Packaging Contents • 1 x VGA Video Extender Local Unit • 1 x VGA Video Extender Remote Unit • 1 x Mounting Bracket Kit • 2 x Power Adapters • 1 x Instruction Manual System Requirements • VGA enabled video source and display •... -
Page 5: Local Unit
Local Unit RJ45 Power output VGA input Connector (male) VGA output (female) Remote Unit Signal Equalizer switch RJ45 input Power Connector VGA output (female) Instruction Manual... -
Page 6: Preparing Your Site
Preparing Your Site 1. Determine where the local video source (i.e. computer) will be located and set up the device. 2. Determine where the remote display will be located and place/mount the display appropriately. 3. If you are using surface cabling, ensure you have enough Cat5 unshielded twisted pair (UTP) Ethernet cabling to connect the Local Unit to the Remote Unit’s location, and that each end is terminated with a RJ45 Ethernet connector. -
Page 7: Driver Installation
We strongly recommend marking the Ethernet cables you are using with this product at both locations for easy identification. OPTIONAL: with the optional mounting brackets (StarTech.com ID: ST121MOUNT), any ST121 series Remote Unit can be securely mounted to a wall or other surface. -
Page 8: Troubleshooting
The following section provides troubleshooting help. The solutions are arranged in the order they should be attempted in most situations. If you continue to have difficulties after attempting the solutions in this section, please contact StarTech.com technical support. Symptom: The remote displays are black or display a “no signal” message. -
Page 9: Wiring Diagram
Wiring Diagram Wire Color Pair White/Orage Orange White/Green Blue White/Blue Green White/Brown Brown Instruction Manual... -
Page 10: Specifications
Specifications 1 x DE-15 VGA male 1 x DE-15 VGA female Connectors (Local) 1 x RJ45 Ethernet female 1 x Power Connector 2 x DE-15 VGA female Connectors (Remote) 1 x RJ45 Ethernet female 1 x Power Connector LEDs (per unit) 1 x Power, 1 x Activity Maximum Cable Distance 150m (500 ft) @ 1024x768... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
