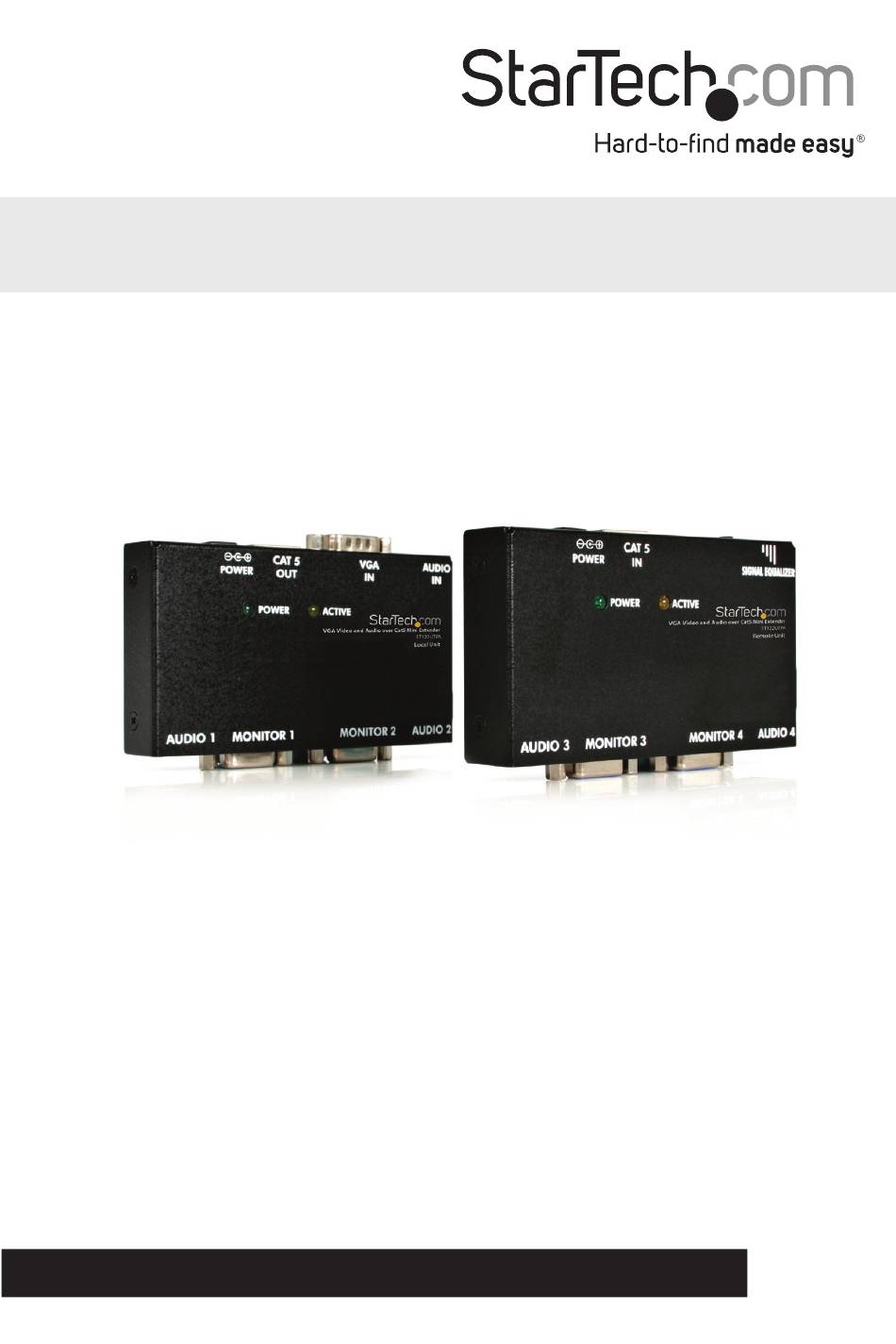

VGA Video and Audio over Cat5 Mini Extender
ST122UTPA / ST122UTPAGB / ST122UTPAEU
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/22/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ST122UTPAGB
Summary of Contents for StarTech.com ST122UTPAGB
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/22/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Packaging Contents ..........................1 System requirements ..........................1 Installation ........................ 1 Hardware Installation ..........................1 Local Unit ...............................2 Remote Unit ..............................2 Troubleshooting ...................... 5 Wiring Diagram ......................6 Specifications ......................7 Technical Support ....................8 Warranty Information ..................... 8 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1 x VGA Video Extender Local Unit • 1 x VGA Video Extender Remote Unit • 1 x Mounting Bracket kit • 2 x Power Adapters • 1 x Instruction Manual System Requirements • VGA enabled video source and display device •... -
Page 5: Local Unit

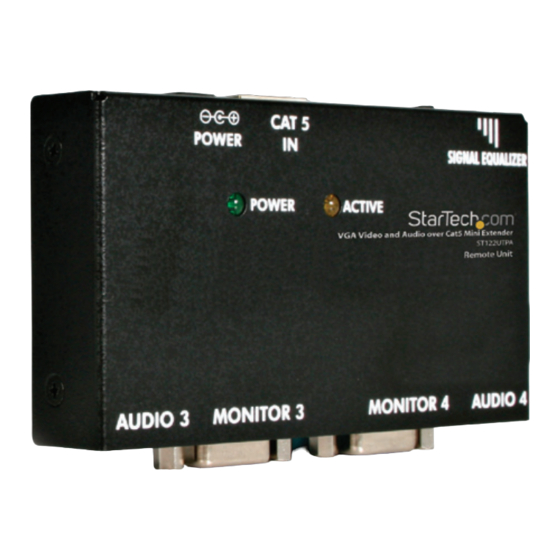

Local Unit VGA input (male) RJ45 Power output Audio input connector (3.5mm) Audio output Audio output VGA output (3.5mm) (3.5mm) (female) Remote Unit RJ45 Power Signal Equalizer output connector switch Audio output (3.5mm) Audio output VGA output (3.5mm) (female) Instruction Manual... - Page 6 Preparing Your Site 1. Determine where the local video source (i.e. computer) will be located and set up the device. 2. Determine where the remote display will be located and place/mount the display appropriately. 3. If you are using surface cabling, ensure you have enough Cat5 unshielded twisted pair (UTP) Ethernet cabling to connect the Local Unit to the Remote Unit’s location, and that each end is terminated with a RJ45 Ethernet connector.
- Page 7 Installing the Remote Unit 1. Connect the Remote Unit to the Cat5 cable connection from the Local Unit, to the “CAT5 IN” port. 2. Connect the VGA cable from the remote display(s) to the opposite side of the Remote Unit, marked “Monitor”. You may choose to have either one or two displays at the remote location connected to the Remote Unit.
-
Page 8: Troubleshooting
The following section provides troubleshooting help. The solutions are arranged in the order they should be attempted in most situations. If you continue to have difficulties after attempting the solutions in this section, please contact StarTech.com technical support. Symptom: The remote displays are black or display a “no signal” message. -
Page 9: Wiring Diagram
Wiring Diagram Wire Color Pair White/Orage Orange White/Green Blue White/Blue Green White/Brown Brown Instruction Manual... -
Page 10: Specifications
Specifications 1 x DE-15 VGA male 1 x DE-15 VGA female Connectors (Local) 2 x 3.5mm stereo mini-jack 1 x RJ45 Ethernet female 1 x Power Connector 2 x DE-15 VGA female 2 x 3.5mm stereo mini-jack Connectors (Remote) 1 x RJ45 Ethernet female 1 x Power Connector LEDs 1 x Power, 1 x Activity... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
