PS/2 & USB KVM Console Extender
UTP KVM Signal Extender for Distances up to 500 feet (150 m)
SV565UTP
Instruction Manual

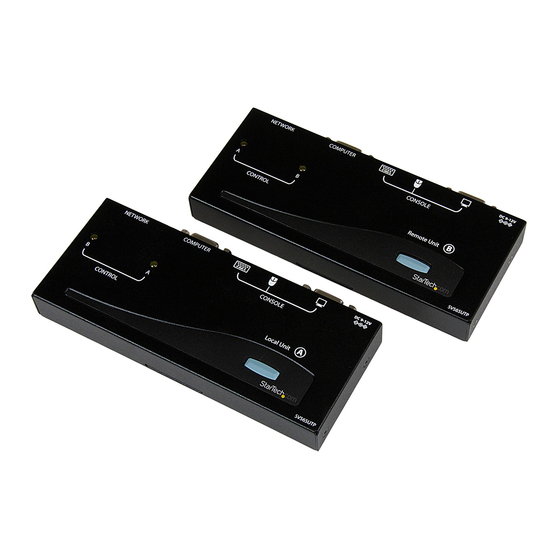

Actual product may vary from photo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV565UTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for StarTech.com SV565UTP

Summary of Contents for StarTech.com SV565UTP

  • Page 1 PS/2 & USB KVM Console Extender UTP KVM Signal Extender for Distances up to 500 feet (150 m) SV565UTP Instruction Manual Actual product may vary from photo...

  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.

  • Page 3: Table Of Contents

    Specifications ...........7 Accessory Products from StarTech.com ......8 Technical Support .

  • Page 4: Introduction

    Introduction Thank you for purchasing a StarTech.com KVM extender. This product allows a computer to control a host system from a remote location at a distance of up to 500 feet (150 meters). For ease of installation, this product uses standard Category 5, 5E, or 6 network cabling that fits easily into almost any existing network infrastructure.

  • Page 5: Contents

    Contents This package should contain: 1 x Host Unit 1 x Remote Unit 1 x Instruction Manual 2 x Power adapter 1 x Set of rubber mounting feet Connecting Your KVM Extender This product is composed of two different units: the Host Unit and the Remote Unit. The Host Unit takes input controls from a computer (using a PS/2 or USB integrated KVM cable) and allows access to them via the Remote Unit over Category 5 UTP cable.

  • Page 6: Installing The Remote Unit

    2: Switch off the computer and disconnect any existing VGA and input connections. 3: Using a StarTech.com integrated KVM cable (see page 8 for part numbers), connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate.

  • Page 7: Using Your Kvm Extender

    Using Your KVM Extender This section details how to use your KVM extender at both the host and remote locations. Using the Host Unit The Host Unit performs two functions: it allows a user at the remote location (Computer B) to assume control of Computer A, and it also permits the user seated at Computer A to use the system.

  • Page 8: Using The Remote Unit

    Instruction Manual Beep Codes Some of the keyboard command sequences you issue to the Host Unit have multiple possible settings. The Unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled...
  • Page 9 Keyboard Shortcut Command Sequences Standard Command With Compatibility Mode Enabled [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Alt]+[E] [Ctrl] - [Ctrl] - [Alt]+[E] [Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1] [Ctrl] - [Ctrl] - [2]...

  • Page 10: Specifications

    Note: If the Num Lock, Caps Lock, and Scroll Lock lights are flashing in unison on the keyboard, the other Unit has control of Computer A. You will not be able to use A until the other Unit releases access to that computer. Note: If the Extender is operating in Compatability Mode ([Ctrl] - [Ctrl] - [E] hotkey sequence), you must enter [Ctrl] - [Ctrl] - [E] - [E] to access port E on the attached KVM switch.

  • Page 11: Accessory Products From Startech.com

    Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. SVECON2 2 ft Ultra-Thin PS/2 3-in-1 KVM Cable...

  • Page 12: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,...
  • Page 13 Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
