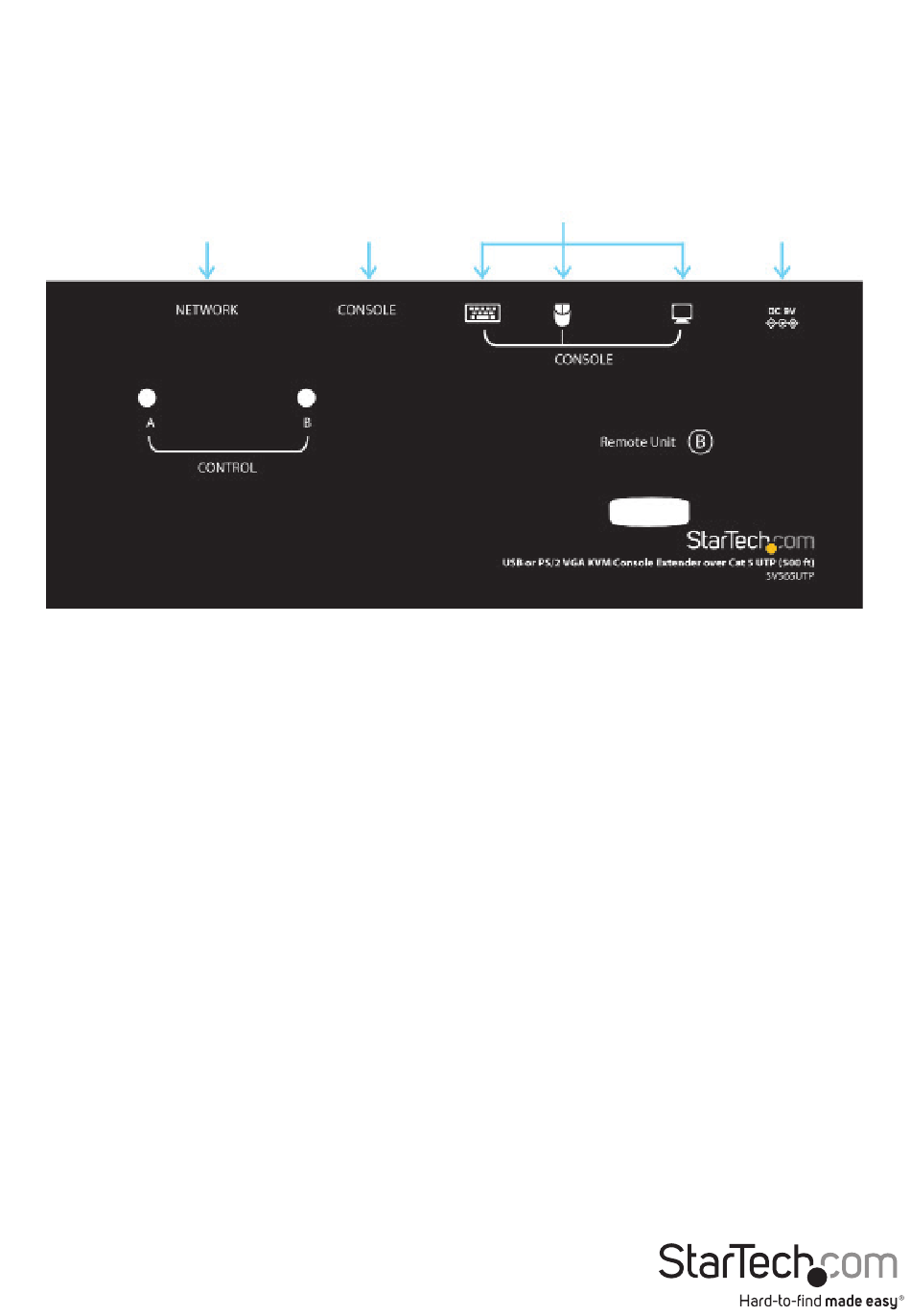

Installing the Remote Unit

UTP Cable
1. Place the Remote Unit near the computer.
2. Switch off the computer and disconnect any existing VGA and input connections.
3. Using a StarTech.com integrated KVM cable (see page 8 for part numbers), connect
the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out
connector and the USB or mouse and keyboard PS/2 connectors on the computer
as appropriate (The PS/2 version of the cable is color coded.) Connect the opposite
end of the cable with a single connector to the gray coded connector marked
COMPUTER on the Remote Unit of the KVM extender.
4. Connect a PS/2 mouse, keyboard, and VGA monitor to the indicators marked as
CONSOLE on the Remote Unit.
5. Connect the UTP cable connection for Remote Unit to the NETWORK RJ-45
connector on the Remote Unit. Connect the opposite end to a terminated wall
outlet (if using premises cabling).
CAUTION: The UTP network cables that connect the Host and Remote Units carry
electrical current and should not be plugged in to other devices, as they may cause
damage. We strongly recommend marking the cables the cables you are using with
this product at both locations for easy identification.
Instruction Manual
Host Computer
(KVM cable)
4
PS/2 keyboard/
mouse and VGA
console
Power
Connector
